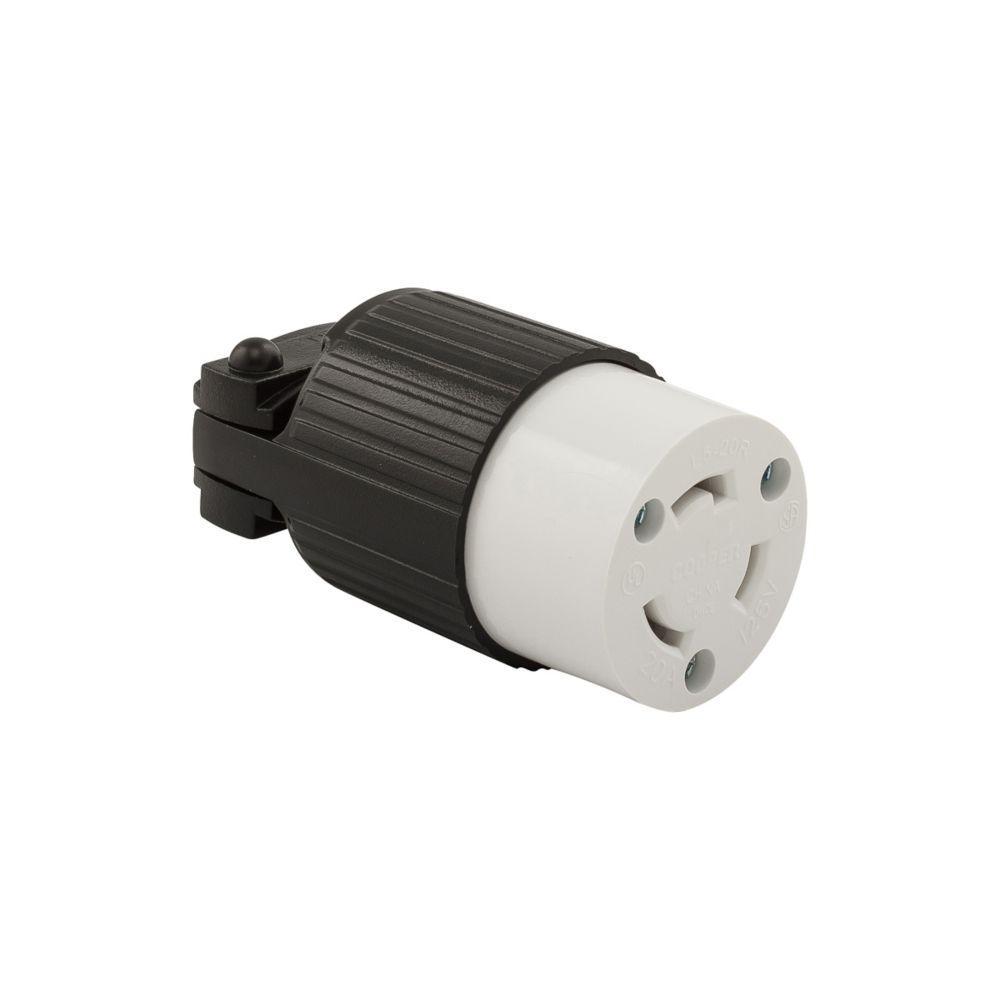

Arrowhart L520C Devices Locking Connector
Part Number # L520C
SKU # 2253467
$47.66 / Each
Arrowhart L520C Key Features
Brand: Arrowhart
Part Number # L520C
SKU #2253467
Amperage Rating: 20, 20 A
Cord Diameter: 3/8 to 1, 3/8 to 1 in
Dimensions: 1.82 in Dia x 3.13 in H
NEMA Rating: NEMA L5-20
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Back/Side Wire, Back/Side Wired
Voltage Rating: 125, 125 VAC
Color: Black/White
Country of origin: CN
Material: Polycarbonate/PVC
Manufacturer Name: Eaton
UNSPSC: 39121403
UPC: 00032664391101
$47.66 / Each
- EATON Arrow Hart Eaton Wiring Devices Locking Connector, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA L5-20 NEMA Rating, Commercial/Specification Grade, 3/8 to 1 in Diameter Cord, -40 to 75 deg C, Back/Side Wire Terminal, Polycarbonate/PVC, Black/White, 1.82 in Dia x 3.13 in H Dimensions
L520C Application
For locking device applicationsL520C Item Features
- Abuse-resistant thermoplastic construction
- Back-wire dead front design
- External cable clamp provides firm strain-relief
- Back-wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Triple-combination head screws standard slot Phillips/Robertson for use in the us and Canada
- Clear cover over wiring compartments allow easy inspection of wiring terminations
- Toggle actuator
- Dead front design
- 12 to 4 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
L520C Standards
CSA C22.2 File No. 42|CSA File No. LR2081|CSA File No. 6221-02|NOM Certified|UL 498|UL File No. E15012|UL 94 V-2 Flammability RatedSKU #2253467Part Number #L520CUNSPSC39121403UPC00032664391101
