Part Number # L530P
SKU # 2387715
Image Disclaimers Message
L530P

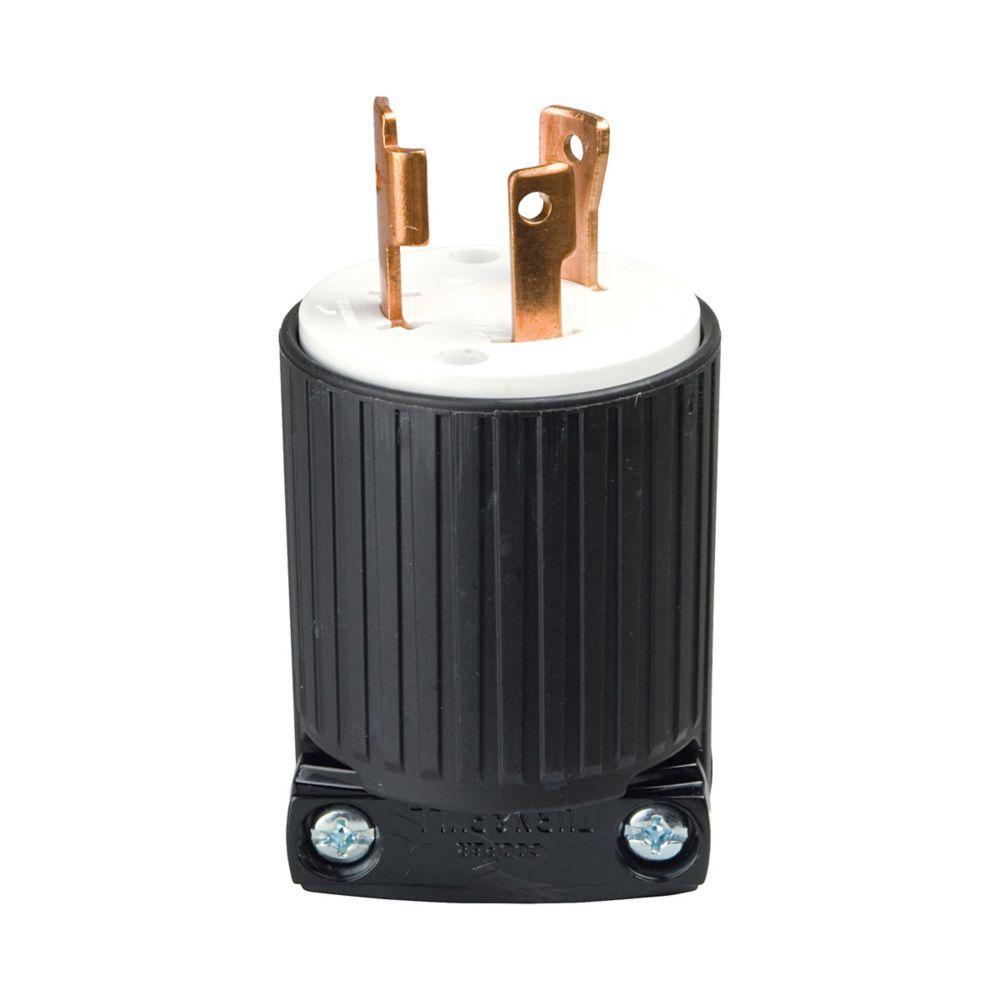

Arrowhart L530P Locking Plug
Part Number # L530P
SKU # 2387715
$346.40 / 10Each
Arrowhart L530P Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | L530P |
| SKU #: | 2387715 |
| Amperage Rating: | 30 A |
| Cord Diameter: | 3/8 to 1 in |
| Dimensions: | 1.82 in Dia x 2.23 in L |
| NEMA Rating: | NEMA L5-30 |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Terminal Type: | Back Wire |
| Color: | Black/White |
| Country of origin: | CN |
| Material: | Polycarbonate |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121403 |
| UPC: | 00032664393303 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$346.40 / 10Each
Quantity:
- EATON Wiring Devices Arrow Hart Locking Plug, 125 V AC, 30 A, 2 Pole, 3 Wires, NEMA L5-30 NEMA Rating, Commercial/Specification Grade, 3/8 to 1 in Diameter Cord, -20 to 60 deg C, Back Wire Terminal, Polycarbonate, Black/White, 1.82 in Dia x 2.23 in L Dimensions
L530P Application
For locking device applicationsL530P Item Features
- Abuse-resistant thermoplastic construction
- Back-wire dead front design
- External cable clamp provides firm strain-relief
- Back-wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Clear cover over wiring compartments allow easy inspection of wiring terminations
- Dead front design
- 12 to 4 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
L530P Standards
NOM,CSA certified,UL Listed,Federal Specifications Classification W-C375,RoHS CompliantSKU #2387715Part Number #L530PUNSPSC39121403UPC00032664393303
