Part Number # S42-SP
SKU # 2122312
S42-SP

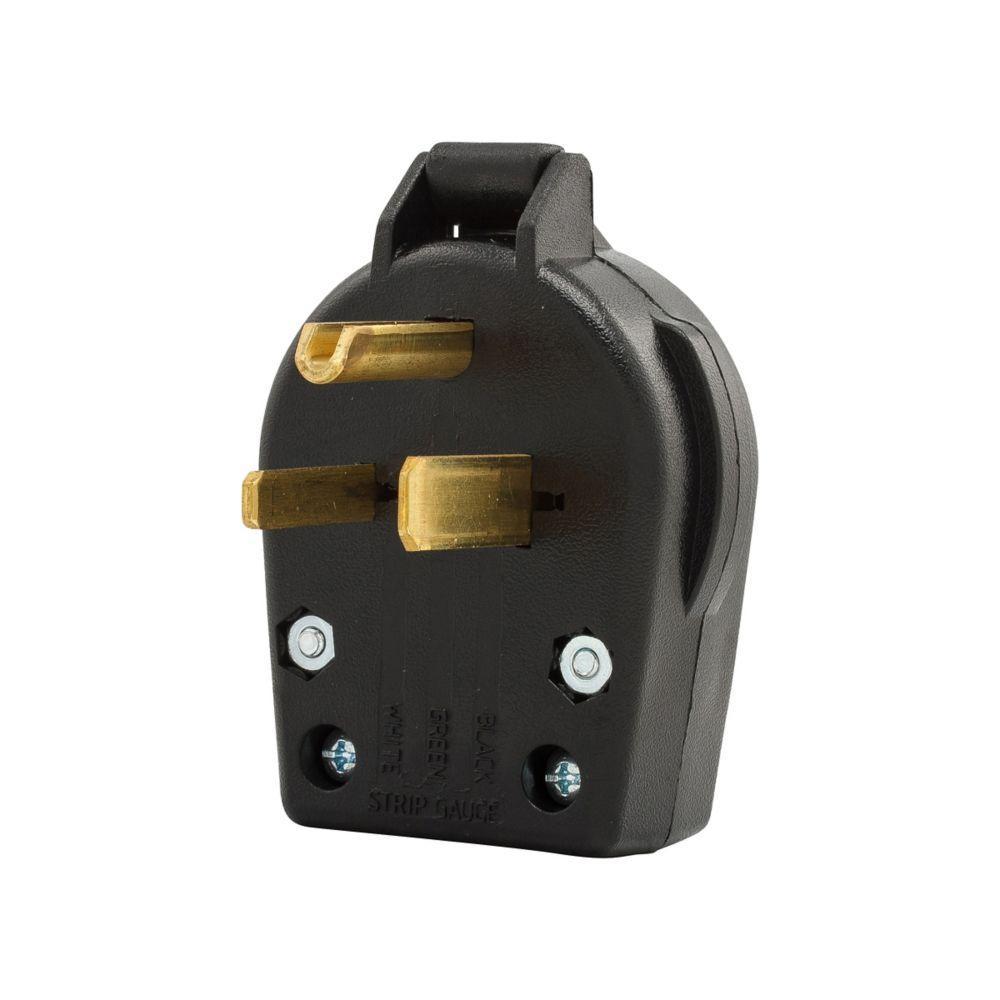

Arrowhart S42-SP Devices Straight Blade Plug
Part Number # S42-SP
SKU # 2122312
Arrowhart S42-SP Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | S42-SP |
| SKU #: | 2122312 |
| Amperage Rating: | 30/50, 30/50 A |
| Cord Diameter: | 1.1, 1.1 in |
| Dimensions: | 3.37 in H x 2.87 in W |
| NEMA Rating: | NEMA 6-30P/6-50P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -20 to 75, -20 to 75 deg C |
| Type: | Angled Universal |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00032664517846 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart S42-SP Devices Straight Blade Plug
Brand: Arrowhart
Part Number: S42-SP
EATON Arrow Hart Eaton Wiring Devices Straight Blade Plug, Angled Universal, 250 VAC, 30/50 A, 2 Pole, 3 Wires, NEMA 6-30P/6-50P NEMA Rating, Commercial/Heavy Duty Grade, 1.1 in Diameter Cord, -20 to 75 deg C, Thermoplastic, Black, 3.37 in H x 2.87 in W Dimensions
Additional Description: AHWD-S42-SP Plug Angle Univ 30/50A250V 2P3W Vinyl BK VINYL BK VINYL BK
Catalog Description: Eaton Arrow Hart heavy-duty universal nema power plug , #10-6 AWG, 30A/50A, Commercial, range & dryer, 250V, Back wire, Black, Brass, PVC, 6-30P, 6-50P, Screw, 1.10", PVC, Retail Box
S42-SP Item Features
- Universal plugs include blades for both 30 A and 50 A configurations of the same voltage
- Terminals have pressure plates to protect wires
- 10 to 6 AWG wire
- Abuse-resistant thermoplastic construction
S42-SP Standards
UL ListedSKU #2122312Part Number #S42-SPUNSPSC39121402UPC00032664517846
Image provided may only be a representation of final product and may include optional equipment
