Part Number # S80-SP
SKU # 345377
S80-SP

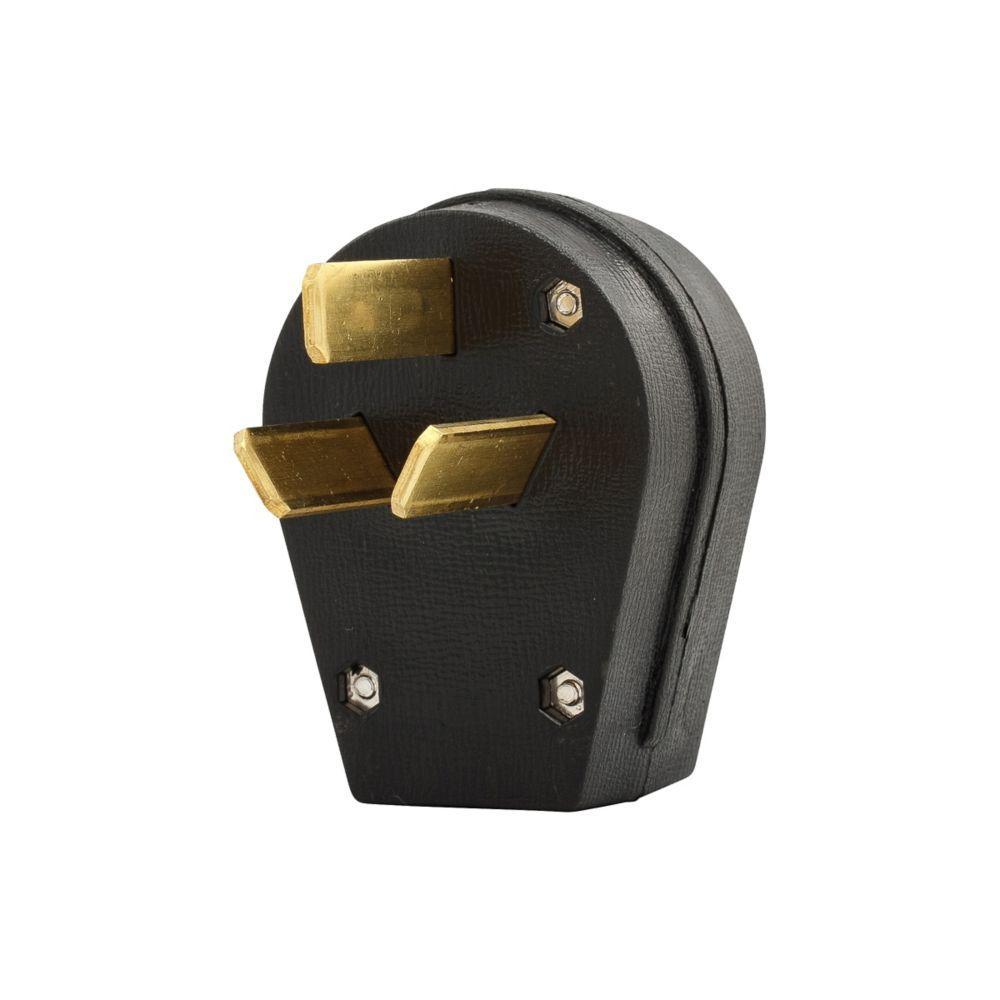

Arrowhart S80-SP Devices Straight Blade Plug
Part Number # S80-SP
SKU # 345377
Arrowhart S80-SP Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | S80-SP |
| SKU #: | 345377 |
| Cord Diameter: | 0.8 in |
| Dimensions: | 2.92 in H x 2.8 in W |
| NEMA Rating: | NEMA 10-30P/10-50P |
| Temperature Rating (Degrees F): | -20 to 75 deg C |
| Type: | Angled Non-Grounding Universal |
| UNSPSC: | 39121402 |
| UPC: | 00032664517853 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart S80-SP Devices Straight Blade Plug
Brand: Arrowhart
Part Number: S80-SP
EATON Arrow Hart Eaton Wiring Devices Straight Blade Plug, Angled Non-Grounding Universal, 125/250 VAC, 30/50 A, 3 Pole, 3 Wires, NEMA 10-30P/10-50P NEMA Rating, Commercial Grade, 0.8 in Diameter Cord, -20 to 75 deg C, Thermoplastic, Black, 2.92 in H x 2.8 in W Dimensions
Additional Description: AHWD-S80-SP Plug Angle Univ 30/50A 125/250V 3P3W BK
Catalog Description: Eaton Arrow Hart heavy-duty universal nema power plug , #10-8 AWG, 30A/50A, Commercial, range & dryer, 125/250V, Back wire, Black, Brass, Abuse-resistant thermoplastic, 10-30P, 10-50P, Screw, Vinyl, Retail Box
S80-SP Item Features
- For replacement use in newer homes with 4-wire range and dryer connection points
- Universal plugs include blades for both 30 A and 50 A configurations of the same voltage
- Terminals have pressure plates to protect wires
- 10 to 8 AWG wire
- Abuse-resistant thermoplastic construction
S80-SP Standards
UL ListedSKU #345377Part Number #S80-SPUNSPSC39121402UPC00032664517853
Image provided may only be a representation of final product and may include optional equipment
