Part Number # TR6252V-BOX
SKU # 2287327
Image provided may only be a representation of
final product and may include optional equipment
TR6252V-BOX

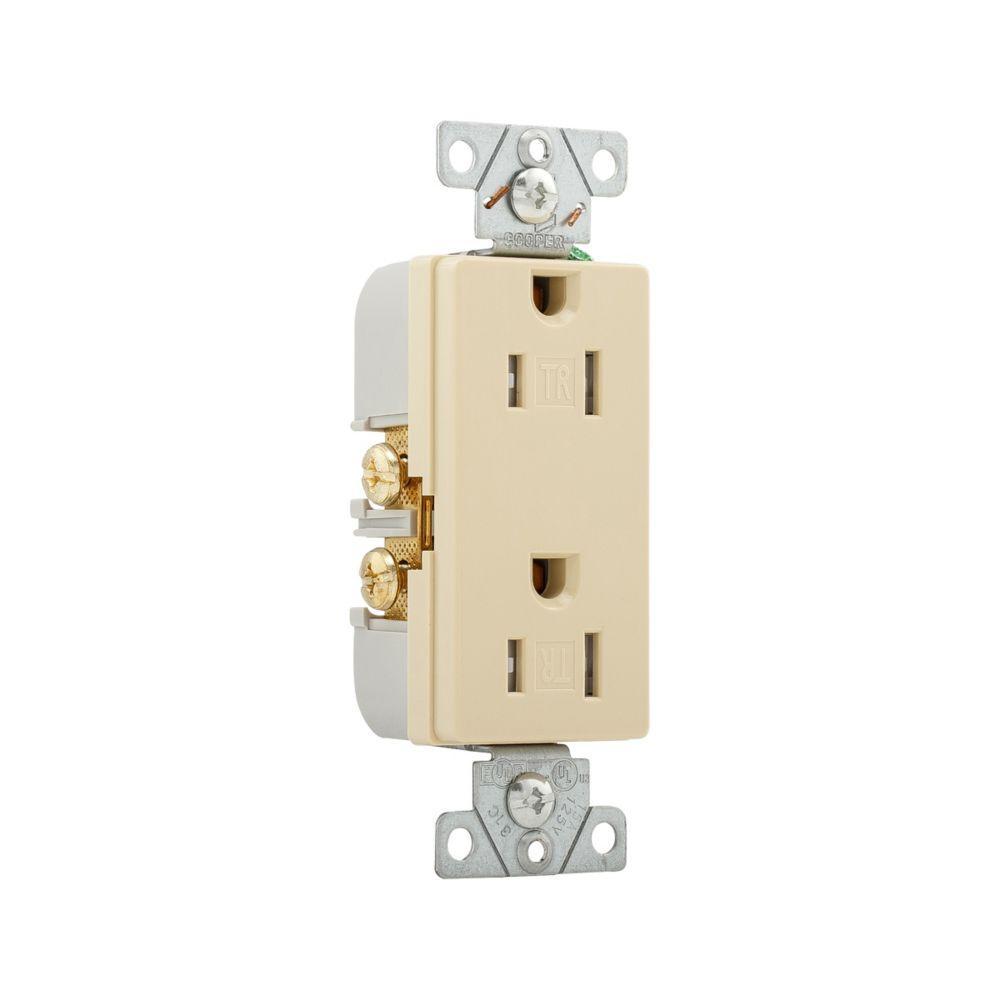

Arrowhart TR6252V-BOX Straight Blade Receptacle
Part Number # TR6252V-BOX
SKU # 2287327
Arrowhart TR6252V-BOX Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | TR6252V-BOX |
| SKU #: | 2287327 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 1.1 in D x 4.19 in H |
| NEMA Rating: | 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | TR6252 |
| Temperature Rating (Degrees F): | -20 to 70, -20 to 70 deg C |
| Terminal Type: | Back and Side Wired Screw, Back/Side Wire/Screw |
| Type: | Duplex |
| Country of origin: | CN |
| Material: | PVC |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664668456 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart TR6252V-BOX Straight Blade Receptacle
Brand: Arrowhart
Part Number: TR6252V-BOX
EATON Arrow Hart Straight Blade Receptacle, Duplex, Series: TR6252, 125 V, 15 A, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial Grade, -20 to 70 deg C, Back/Side Wire/Screw Terminal, PVC, Ivory, 1.1 in D x 4.19 in H Dimensions
Additional Description: AHWD-TR6252V-BOX Recp TR Deco Dup 15A125V 2P3W B/Swire IV B/SWIRE IV B/SWIRE IV decorator recept., ivory
Catalog Description: Eaton heavy-duty industrial specification grade decorator duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Back and side, Ivory, Brass, Impact-resistant thermoplastic face and back body, 5-15R, Duplex, Screw, PVC, ED Box
TR6252V-BOX Application
Indoor ApplicationsTR6252V-BOX Item Features
- Brass contacts
- Flush mounting
- Indoor enclosure environmental rating
- Nylon face, PVC base
- https://www.youtube.com/watch?v=wVyZtLMLREA
TR6252V-BOX Standards
cULus Listed,NOMSKU #2287327Part Number #TR6252V-BOXUNSPSC39121406UPC00032664668456
