Part Number # TR817LA-BOX
SKU # 2215526
Image Disclaimers Message
TR817LA-BOX

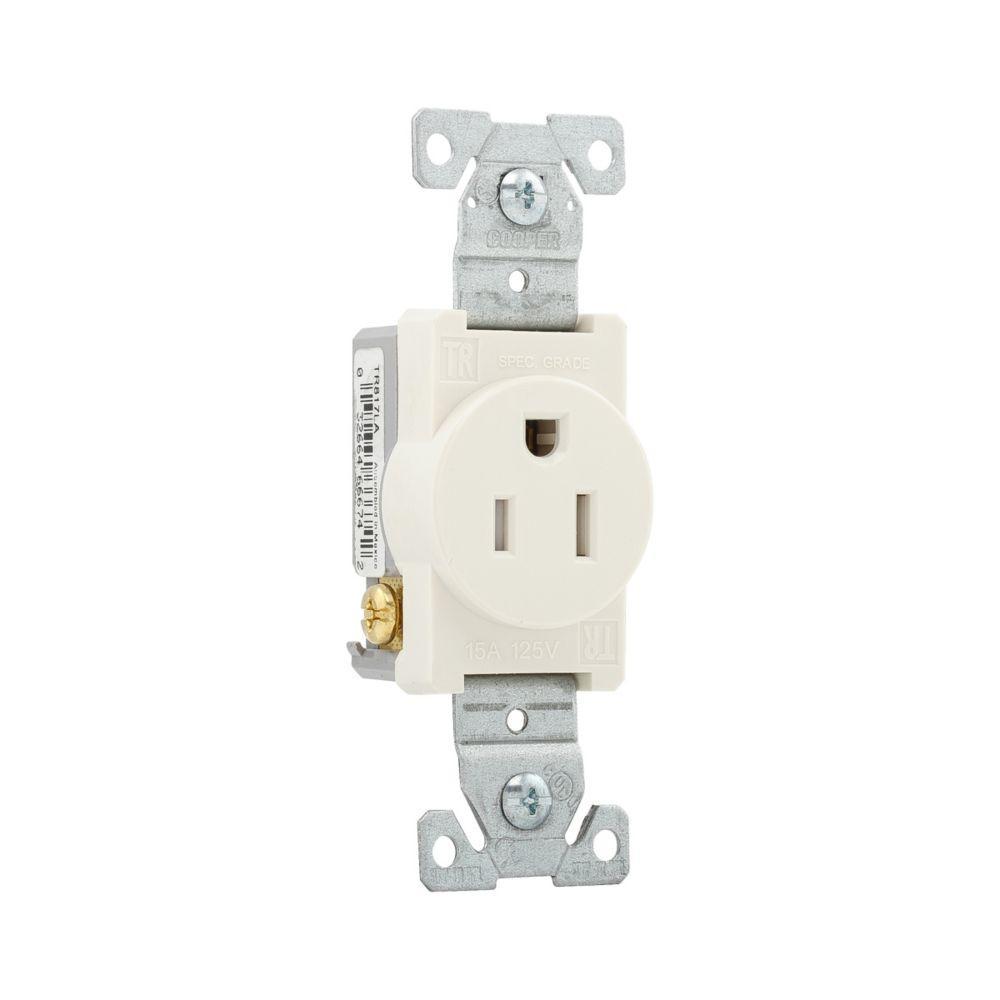

Arrowhart TR817LA-BOX Devices Straight Blade Receptacle
Part Number # TR817LA-BOX
SKU # 2215526
$1157.00 / 100Each
Arrowhart TR817LA-BOX Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | TR817LA-BOX |
| SKU #: | 2215526 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 1.3 in L x 0.87 in W x 4.19 in H |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | TR817 |
| Temperature Rating (Degrees F): | -4 to 158, -4 to 158 deg F |
| Terminal Type: | Screw/Side Wired, Side Wire/Screw |
| Type: | Single Tamper-Resistant |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664665448 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1157.00 / 100Each
Quantity:
- EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Single Tamper-Resistant, Series: TR817, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, Nylon, Light Almond, 1.3 in L x 0.87 in W x 4.19 in H Dimensions
TR817LA-BOX Application
Non-Residential ApplicationsTR817LA-BOX Item Features
- Provides compliance with 2014 NEC Article 406.12
- Durable impact-resistant thermoplastic face and back body is virtually unbreakable and also chemical-resistant
- TR designation provides visual identification that device has Tamper-resistant shutters preventing the insertion of foreign objects
- Terminal screws are backed out and ready-to wire
- Extra long and extra wide mounting straps
- Side wire terminals accept up to 10 AWG solid/stranded wire
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
TR817LA-BOX Standards
NOM,cULus Listed,RoHS CompliantSKU #2215526Part Number #TR817LA-BOXUNSPSC39121406UPC00032664665448
