Part Number # 12106-4XSCHC
SKU # 2269778
Image provided may only be a representation of
final product and may include optional equipment
12106-4XSCHC

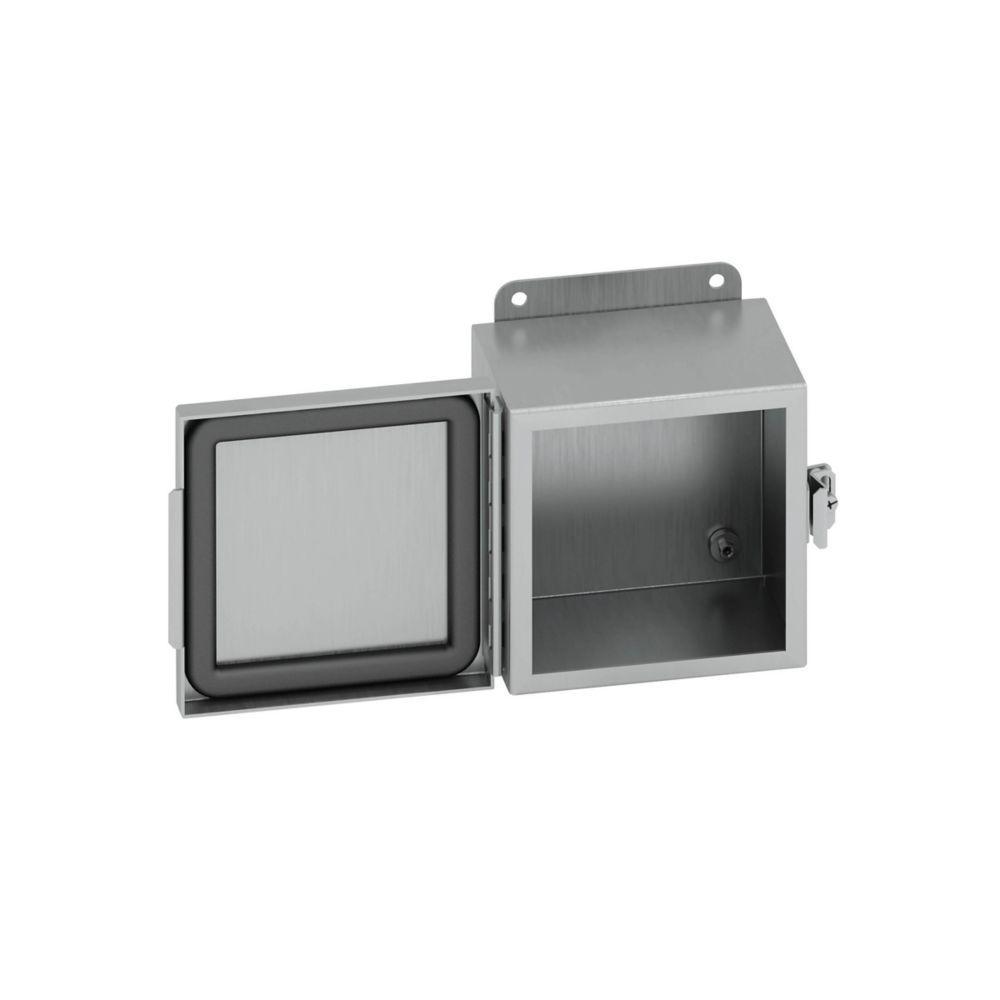

B-Line 12106-4XSCHC JIC Panel Enclosure
Part Number # 12106-4XSCHC
SKU # 2269778
B-Line 12106-4XSCHC Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 12106-4XSCHC |
| SKU #: | 2269778 |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 4X/IP66 |
| Panel Size: | 10.87 in H x 8.87 in W, 8.87 in W x 10.87 in H |
| Country of origin: | US |
| Depth: | 6, 6 in |
| Height: | 12 in |
| Length: | 12 |
| Material: | 304 Stainless Steel |
| Mounting type: | External Feet/Wall |
| Width: | 10, 10 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051701982 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 12106-4XSCHC JIC Panel Enclosure
Brand: B-Line
Part Number: 12106-4XSCHC
B-Line JIC Panel Enclosure, 10 in Width, 6 in Depth, 12 in Height, NEMA 4X/IP66 NEMA Rating, Continuous Hinged Cover, 8.87 in W x 10.87 in H Panel, Lock: Screw Clamp, External Feet/Wall Mounting, 304 Stainless Steel, Smooth Brushed, Gray
Additional Description: BLIN-12106-4XSCHC 12106-4XSCHC ENC, 12X10X6 CONTINUOUS HINGE COVER ENCLOSURE,
Catalog Description: Eaton B-Line series JIC panel enclosure, 12" height, 6" length, 10" width, NEMA 4X, Hinged cover, 4XSCHC enclosure, Wall mount, Small single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
12106-4XSCHC Application
Commercial, Institutional Buildings, Structures - Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Industrial Facilities and Factories Facility, Automation and Monitoring, Critical Power, Safety and Security Systems, Manufacturing Process Electrification and Control, Utility - Substations, Transmission and Distribution, Electrical Controls, Instruments and Indoor/Outdoor Applications12106-4XSCHC Item Features
- Enclosure and cover are fabricated from 16 ga, type 304 or type 316L stainless steel
- All continuous welded seams are finished smooth
- Cover is secured to the body with a stainless steel continuous hinge and pin on one side and easy to operate stainless steel screw clamps mounted to the opposite side
- Cover has a seamless poured in place gasket
- Ground stud provided on cover
- External mounting feet are provided for secure wall mounting
- Cover and sides of body have a smooth #4 brushed finish
- Stainless steel door clamps
- Continuous piano hinge, panel mount provided, stainless steel door clamps
12106-4XSCHC Standards
CSA C22.2.,NEMA,UL 50SKU #2269778Part Number #12106-4XSCHCUNSPSC39121324UPC00782051701982
