Part Number # 12124SCNK
SKU # 2215517
12124SCNK

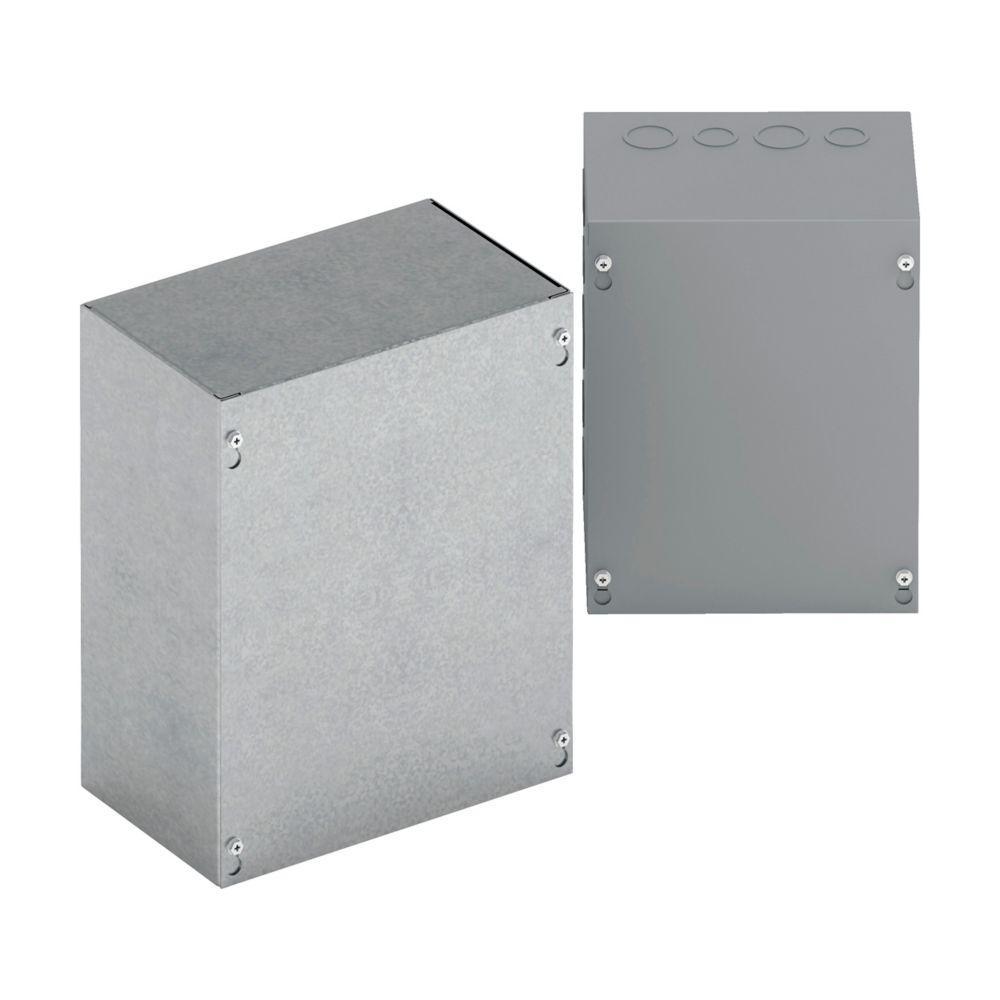

B-Line 12124SCNK Electrical Enclosure
Part Number # 12124SCNK
SKU # 2215517
$43.74 / Each
Typical price:$153.85 / Each
B-Line 12124SCNK Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 12124SCNK |
| SKU #: | 2215517 |
| Finish: | Acrylic Electrocoated, Galvanized |
| NEMA Rating: | NEMA 1, NEMA 1/IP30 |
| Country of origin: | US |
| Depth: | 4, 4 in |
| Height: | 12 in |
| Material: | 16 ga Steel, Steel |
| Mounting type: | Surface, Wall |
| Width: | 12, 12 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121332 |
| UPC: | 00782051225815 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$43.74 / Each
Typical price:$153.85 / Each
Quantity:
B-Line 12124SCNK Electrical Enclosure
Brand: B-Line
Part Number: 12124SCNK
B-Line Junction Box, 12 in Height, 12 in Width, 4 in Depth, NEMA 1, Lock: Screw, Surface Mount, 16 ga Steel, Acrylic Electrocoated, Gray
Additional Description: BLIN-12124SCNK 12124 SC NK
Catalog Description: Eaton B-Line series Type 1 junction boxes, 12" height, 4" length, 12" width, NEMA 1, Screw cover, SC NK enclosure, Surface mounted, Small single door, No knockout, Thru holes, Carbon steel
12124SCNK Application
Commercial/Institutional Buildings/Structures - Critical Power, Automation and Monitoring, Lighting and Lighting Controls, Aftermarket, Safety and Security Systems, Residential Buildings, Aviation12124SCNK Item Features
- Enclosure and cover are fabricated from code gauge steel
- Enclosure body has mounting holes on the back
- Cover is secured to the body with plated pan head combo screws
- Keyhole slots provided in the cover allow easy access to the inside without removing the screws
- Hole provision for optional ground lug kit
- Ground screw provided
- Without knockout
12124SCNK Standards
CSA C22.2 #40|IEC 60529|UL 50SKU #2215517Part Number #12124SCNKUNSPSC39121332UPC00782051225815
Image provided may only be a representation of final product and may include optional equipment
