Part Number # 14126-12CHQRC
SKU # 2365307
14126-12CHQRC
B-Line 14126-12CHQRC JIC Enclosure
Part Number # 14126-12CHQRC
SKU # 2365307
B-Line 14126-12CHQRC Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 14126-12CHQRC |
| SKU #: | 2365307 |
| Finish: | Polyester Powder Coated/Phosphate Undercoat |
| Panel Size: | 10.87 in W x 12.87 in H, 12.87 in H x 10.87 in W |
| UNSPSC: | 39121324 |
| UPC: | 00782051702668 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 14126-12CHQRC JIC Enclosure
Brand: B-Line
Part Number: 14126-12CHQRC
B-Line JIC Enclosure, 12 in Width, 6 in Depth, 14 in Height, NEMA 12 NEMA Rating, Continuous Hinged Cover, 10.87 in W x 12.87 in H Panel, Lock: Quick-Release Latch, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated/Phosphate Undercoat, Gray
Additional Description: BLIN-14126-12CHQRC (N) 14126-12CHQRC TYPE 12 JIC CONT"UOUS H"GE QUICK-RELEASE CVR ENC, 14X12X6 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series JIC panel enclosure, 14" height, 6" length, 12" width, NEMA 12, Hinged cover, 12CHQRC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
14126-12CHQRC Application
Commercial, Institutional Buildings, Structures - Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Industrial Facilities and Factories Facility, Automation and Monitoring, Critical Power, Safety and Security Systems, Manufacturing Process Electrification and Control, Utility - Substations, Transmission and Distribution, Electrical Control and Instrument Applications14126-12CHQRC Item Features
- Enclosure and cover are fabricated from 16 ga steel
- All continuous welded seams are finished smooth
- Cover is secured to the body with a continuous hinge on one side and quick-release latches mounted to the opposite side
- Cover has a seamless poured in place gasket
- Ground stud provided on cover
- External mounting feet are provided for secure wall mounting
- Protects against circulating dust, falling dirt and dripping non-corrosive liquids
- Continuous piano hinge, panel mount provided, pull drawn catch
14126-12CHQRC Standards
IEC 60529|JIC Approved|UL 508ASKU #2365307Part Number #14126-12CHQRCUNSPSC39121324UPC00782051702668

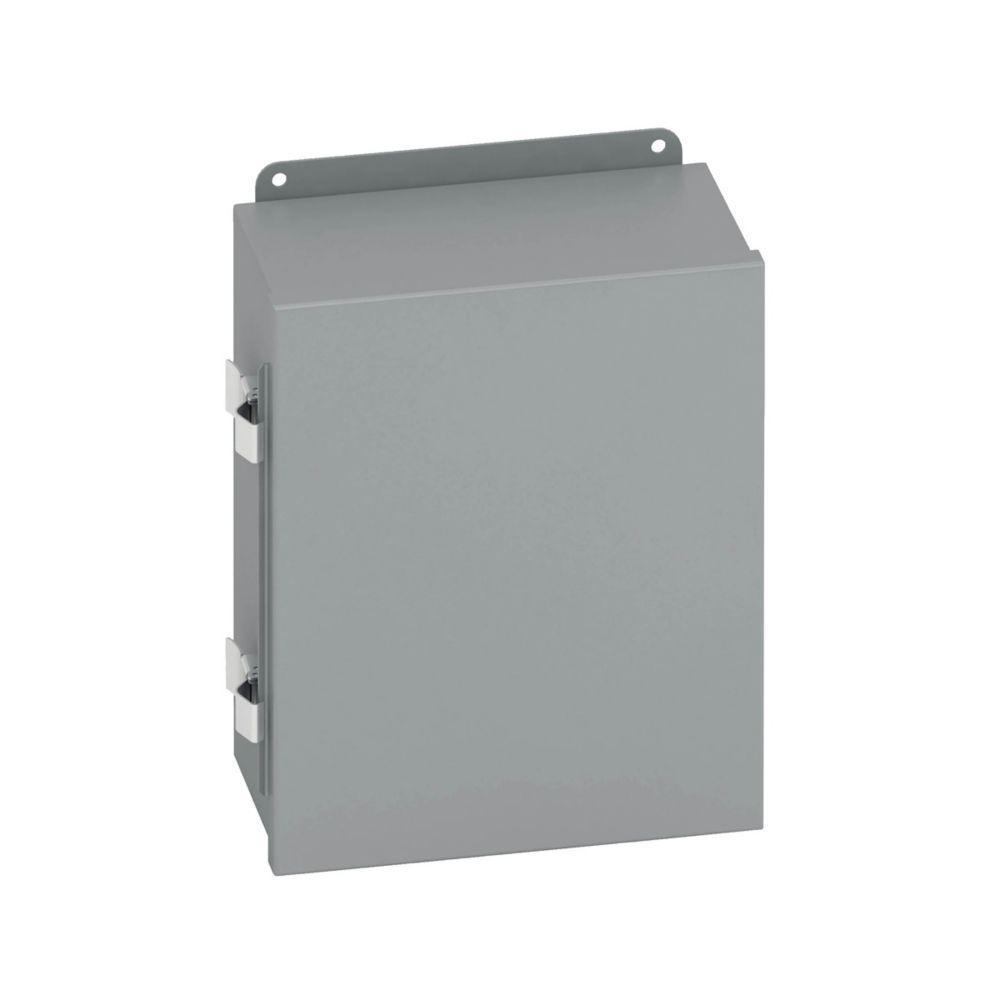

Image provided may only be a representation of final product and may include optional equipment
