Part Number # 16146-12SC
SKU # 2343246
16146-12SC

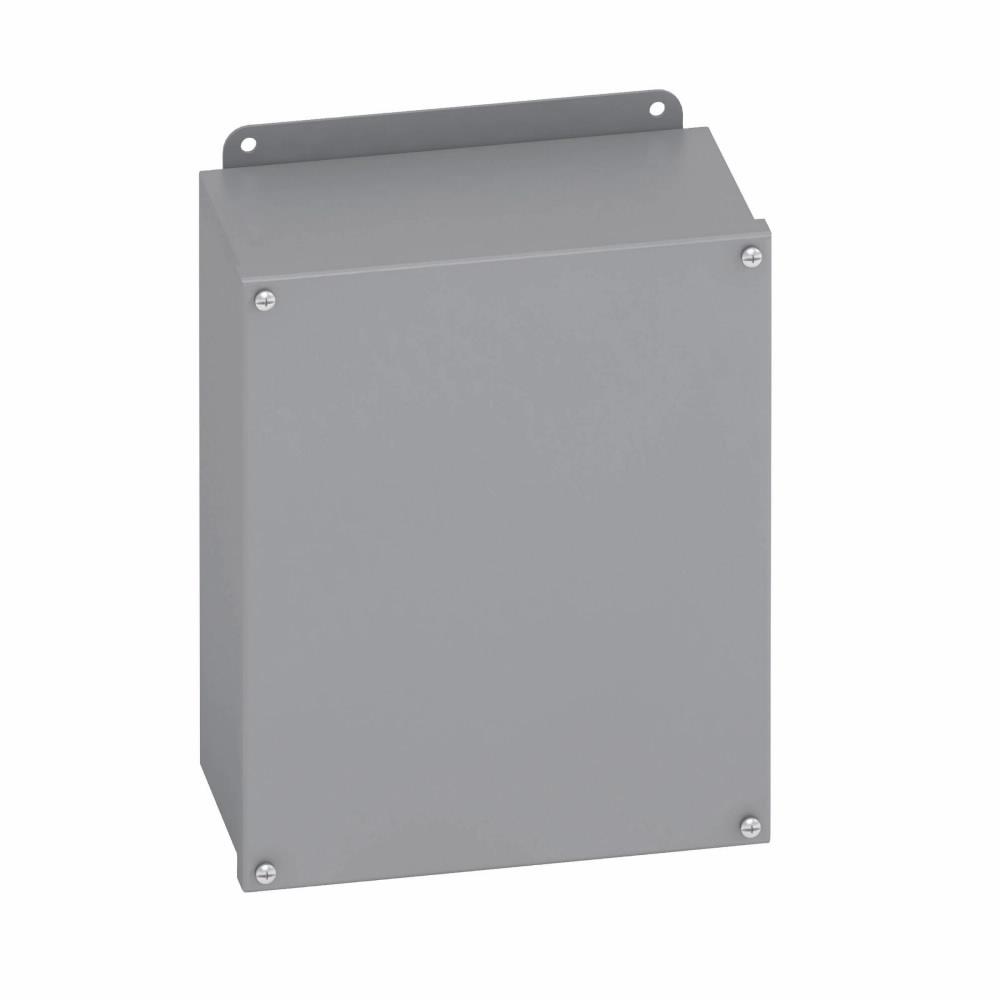

B-Line 16146-12SC JIC Panel Enclosure
Part Number # 16146-12SC
SKU # 2343246
B-Line 16146-12SC Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 16146-12SC |
| SKU #: | 2343246 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 12/IP65 |
| Panel Size: | 12.87 in W x 14.87 in H, 14.87 in H x 12.87 in W |
| Country of origin: | US |
| Depth: | 6, 6 in |
| Height: | 16 in |
| Material: | Carbon Steel, Steel |
| Mounting type: | External Feet/Wall |
| Width: | 14, 14 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051200300 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 16146-12SC JIC Panel Enclosure
Brand: B-Line
Part Number: 16146-12SC
B-Line JIC Panel Enclosure, 14 in Width, 6 in Depth, 16 in Height, NEMA 12/IP65 NEMA Rating, Screw Cover, 12.87 in W x 14.87 in H Panel, Lock: Screw, External Feet/Wall Mounting, Carbon steel, Polyester Powder Coated, Gray
Additional Description: BLIN-16146-12SC (N) 16146-12SC 16X14X6 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series JIC panel enclosure, 16" height, 6" length, 14" width, NEMA 12, Screw cover, 12SC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
16146-12SC Application
Commercial, Institutional Buildings, Structures - Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Industrial Facilities and Factories Facility, Automation and Monitoring, Critical Power, Safety and Security Systems, Manufacturing Process Electrification and Control, Utility - Substations, Transmission and Distribution Applications16146-12SC Item Features
- Enclosure and cover are fabricated from 16 ga steel
- All continuous welded seams are finished smooth
- Cover is attached with captive screws which thread into sealed well nuts
- Cover has a fixed oil-resistant gasket
- Ground stud provided on cover
- External mounting feet are provided for secure wall mounting
- Protects against circulating dust, falling dirt and dripping non-corrosive liquids
- Polyester powder coated over wash and phosphate undercoat 16 ga steel
- Captive plated screws, panel mount provisions
16146-12SC Standards
UL 50,CSA C22.2.,NEMASKU #2343246Part Number #16146-12SCUNSPSC39121324UPC00782051200300
Image provided may only be a representation of final product and may include optional equipment
