18168-4XFCHSC

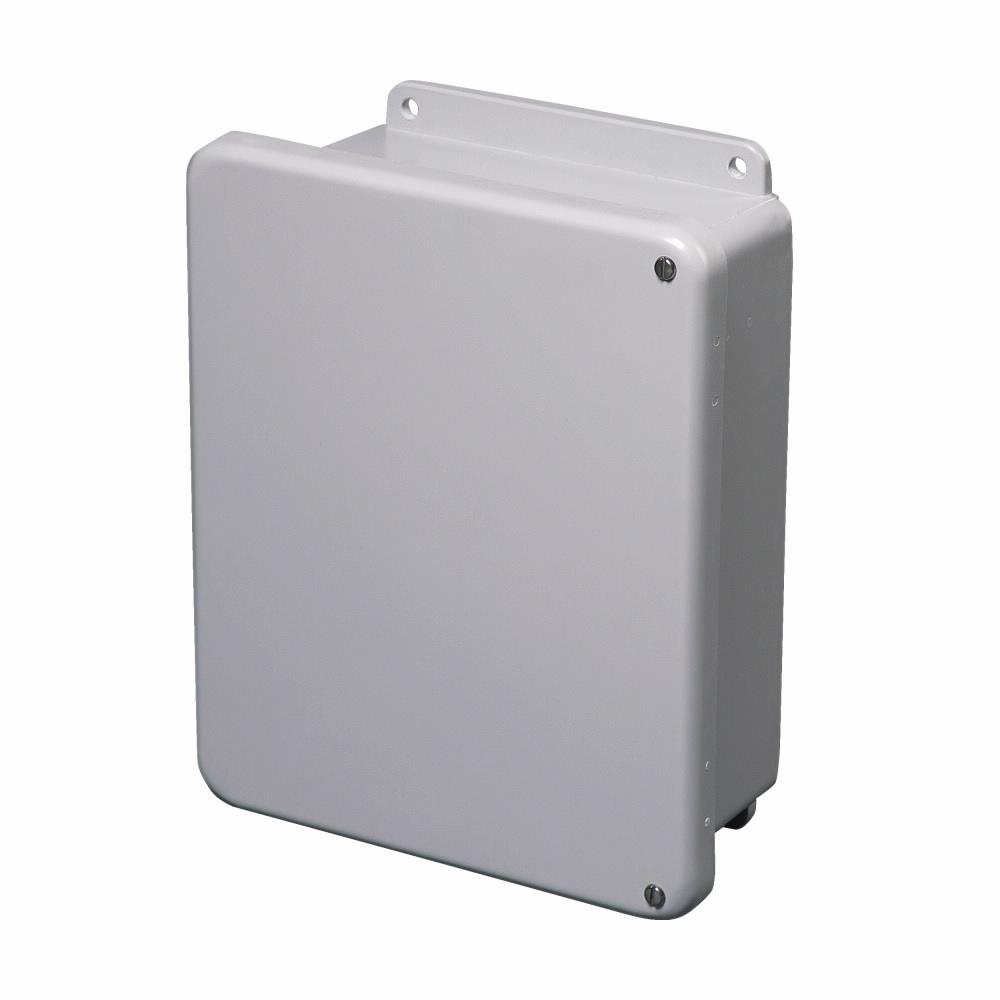

B-Line 18168-4XFCHSC JIC Enclosure
Part Number # 18168-4XFCHSC
SKU # 2253793
B-Line 18168-4XFCHSC Key Features
Brand: | B-Line |
---|---|
Part Number # : | 18168-4XFCHSC |
SKU #: | 2253793 |
NEMA Rating: | NEMA 4X |
Panel Size: | 17.69 in H x 15.69 in W x 8.45 in D |
Temperature Rating (Degrees F): | -40 to 250, -40 to 250 deg F |
Color: | Gray |
Country of origin: | US |
Depth: | 8, 8.82 in |
Height: | 19.62 in |
Length: | 18 |
Material: | Fiberglass Reinforced Polyester |
Mounting type: | Wall |
Width: | 16, 17.61 in |
Manufacturer Name: | Eaton |
UNSPSC: | 39121305 |
UPC: | 00782051523874 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 18168-4XFCHSC JIC Enclosure
Brand: B-Line
Part Number: 18168-4XFCHSC
B-Line JIC Panel Enclosure, 17.61 in Width, 8.82 in Depth, 19.62 in Height, NEMA 4X, Continuous Hinged Cover, Lock: Screw, Wall Mount, -40 to 250 deg F, Fiberglass Reinforced Polyester, Gray
Additional Description: BLIN-18168-4XFCHSC (N) 18168-4XFCHSC SCREW CVR ENC, 18X16X8 SCREW COVER ENCLOSURE, 18X16X8 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series JIC panel enclosure, 19.62" height, 8.82" length, 17.61" width, NEMA 4X, Hinged cover, 4XFCHSC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
18168-4XFCHSC Application
Industrial Facilities and Factories - Safety and Security Systems, Automation and Monitoring, Lighting and Lighting Controls, Power Distribution and Control, Critical Power, Manufacturing Process Electrification and Control, Commercial/Institutional Buildings/Structures - Power Distribution and Controls, Lighting and Lighting Controls, Critical Power, Utility - Substations, Utility Transmission and Distribution18168-4XFCHSC Item Features
- Enclosures are an impact resistant, non-conductive, lightweight hot compression molded fiberglass-reinforced polyester
- Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
- Captive screws provide smooth surfaces
- 300 series stainless steel used on all external hardware
- Integral flange molded in place for ease of mounting
- Integral mounting bosses utilize threaded brass inserts accepting #10-32 screws for mounting optional panel
- Rounded edges reduce build-up of dust and debris
- Full length stainless steel hinged cover
- Stainless screws
18168-4XFCHSC Standards
CSA C22.2 File No. 94|UL/cUL 50|UL 94-5VSKU #2253793Part Number #18168-4XFCHSCUNSPSC39121305UPC00782051523874
