Part Number # 20168-SD
SKU # 2260567
20168-SD
B-Line 20168-SD Enclosure
Part Number # 20168-SD
SKU # 2260567
B-Line 20168-SD Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 20168-SD |
| SKU #: | 2260567 |
| Panel Size: | 14 in W x 18 in H, 18 in H x 14 in W |
| UNSPSC: | 39121324 |
| UPC: | 00782051091885 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 20168-SD Enclosure
Brand: B-Line
Part Number: 20168-SD
B-Line Enclosure, 1-Door, Series: Premier , 16 in Width, 8 in Depth, 20 in Height, NEMA 4/12 NEMA Rating, Hinged Cover, 14 in W x 18 in H Panel, Lock: Quarter-Turn Latch, Wall Mounting, Carbon Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-20168-SD 20168-SD 20X16X8 ENCLOSURE, 20X16X8
Catalog Description: Eaton B-Line series wall mounted panel enclosure,20" height,8" length,16" width,NEMA 4,Hinged cover,SD enclosure,Wall mount,Medium single door,Thru holes,optional external mounting feet,Carbon steel,Seamless poured in-place gasket
20168-SD Application
Commercial, Institutional Buildings, Structures - Building Automation and Monitoring, Aftermarket, Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Safety and Security Systems, Datacenters, IT Space, CI and Hyper Converged, Generation - Renewable Energy, Alternative Energy, Other IT and Datacom - IT and Datacomm - Other, Utility - Substations, Transmission and Distribution, Indoor and Outdoor Applications20168-SD Item Features
- Enclosure and door are fabricated from code gauge steel
- All continuous welded seams are finished smooth
- Hardware kit provided contains grounding hardware, 0.312 to 18 flanged hex nuts for panel mounting and sealing washers for body mounting holes
- Body flange trough design is formed around body opening to divert liquid contaminants away from door opening
- Reduced width flange design increases enclosure opening
- Ground stud provided on enclosure body with provision on door
- Doors are secured to the body with a unique spring loaded hidden hinge design on one side and slotted quarter-turn flush latches on the opposite side
- Doors are easily removed and interchangeable
- Door has a seamless poured in place gasket
- Door opens 170 deg for easy access
- Window-door enclosures feature flush-mounted clear polycarbonate window
- Protects against circulating and windblown dust, falling dirt, dripping non-corrosive liquids, rain, splashing water and hose directed water
- Polyester powder coated over wash and phosphate undercoat 16 ga steel material
20168-SD Standards
CSA C22.2 No. 94|cUL Listed|IEC 60529|UL 508ASKU #2260567Part Number #20168-SDUNSPSC39121324UPC00782051091885

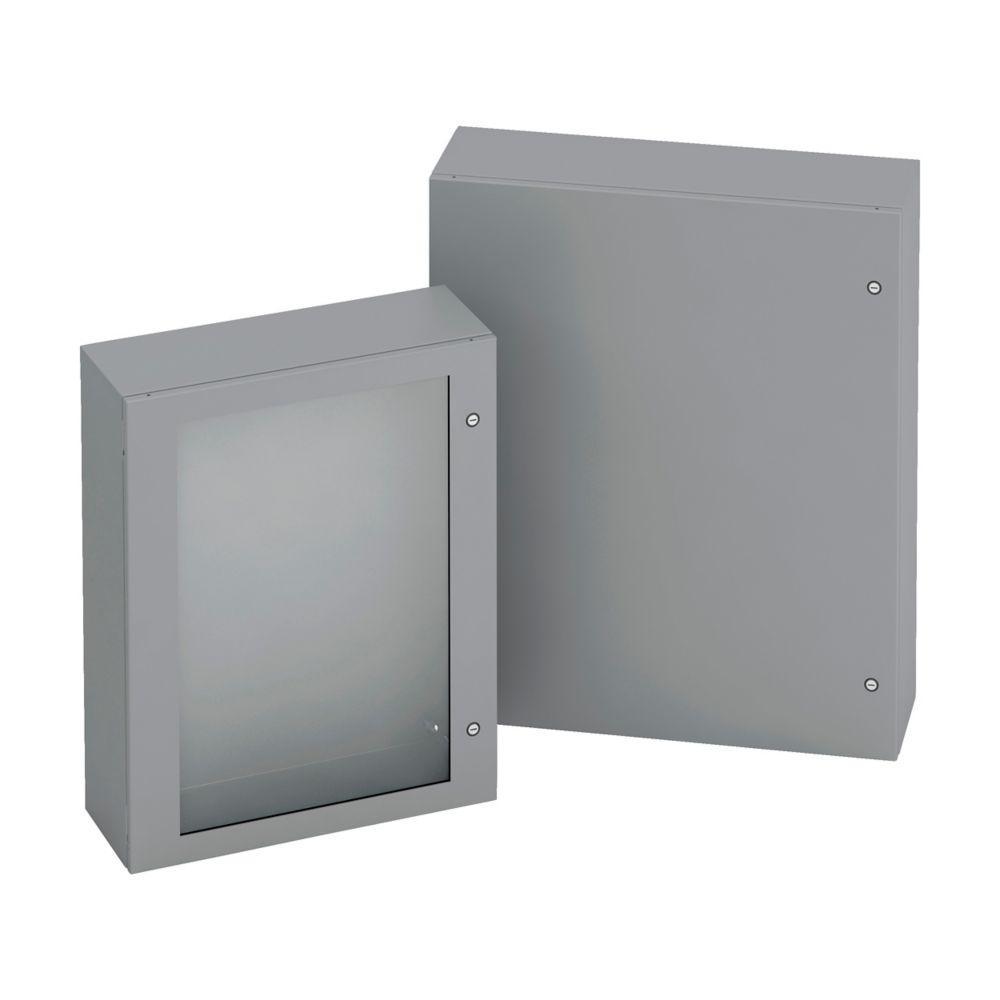

Image provided may only be a representation of final product and may include optional equipment
