Part Number # 22120GNK
SKU # 2193908
Image Disclaimers Message
22120GNK

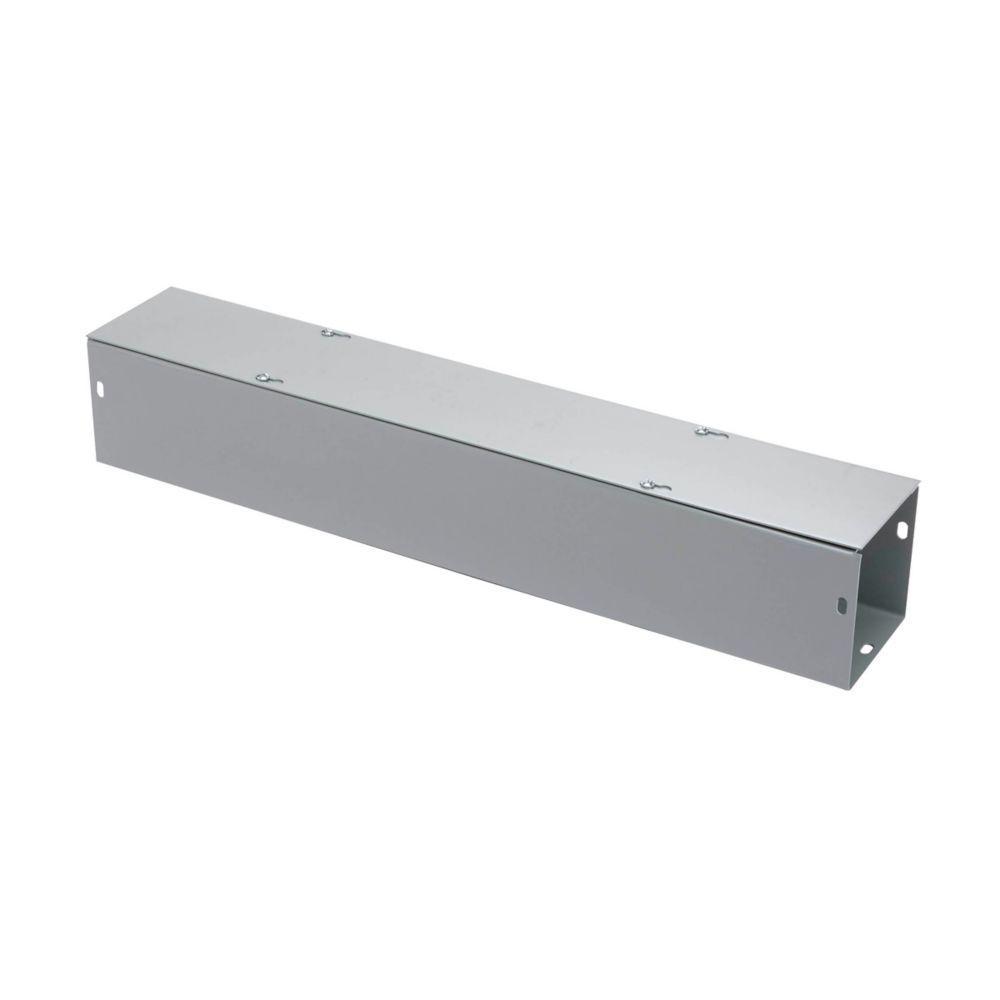

B-Line 22120GNK Lay-In Wireway
Part Number # 22120GNK
SKU # 2193908
$153.38 / Each
Typical price:$481.03 / Each
B-Line 22120GNK Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 22120GNK |
| SKU #: | 2193908 |
| Finish: | Acrylic Electro Coated/Painted, Acrylic Electrocoated/Painted |
| NEMA Rating: | NEMA 1, NEMA 1/IP30 |
| Type: | Straight Section |
| Color: | Gray |
| Country of origin: | US |
| Height: | 2-1/2, 2-1/2 in |
| Length: | 120, 120 in |
| Material: | 16 ga Steel, Steel |
| Width: | 2-1/2, 2-1/2 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131710 |
| UPC: | 00782051016215 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$153.38 / Each
Typical price:$481.03 / Each
Quantity:
B-Line 22120GNK Lay-In Wireway
Brand: B-Line
Part Number: 22120GNK
B-Line Lay-In Wireway, Straight Section, 120 in Length, 2-1/2 in Width, 2-1/2 in Height, Screw Cover, NEMA 1, 16 ga Steel, Gray, Acrylic Electrocoated/Painted
Additional Description: BLIN-22120GNK 22120 G NK
Catalog Description: Eaton B-Line series wiring trough, 2.5" height, 120" length, 2.5" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 16 gauge
22120GNK Application
Used for control and power cable, cable and wire junction, distribution and termination applications22120GNK Item Features
- Wireway body and cover are fabricated from code gauge steel or galvanized steel
- Wireway body has mounting holes on the back
- Cover is secured to the body with plated screws
- Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws
- Wireway exceeding 72 in L has 2 overlapping covers
- Variety of fittings allow runs which can change direction, junction and terminate
- Standard wireway connectors (sold separately) have a gate feature which can swing completely open allowing for lay-in of wire and cable
- Interchangeable with type 1 hinge cover wireway and fittings when HSCA connector is used
- Without knockout
22120GNK Standards
CSA C22.2 #26|IEC 60529|UL 870SKU #2193908Part Number #22120GNKUNSPSC39131710UPC00782051016215
