Part Number # 24126-4XS
SKU # 2288661
24126-4XS
B-Line 24126-4XS Electrical Enclosure
Part Number # 24126-4XS
SKU # 2288661
B-Line 24126-4XS Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 24126-4XS |
| SKU #: | 2288661 |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 4X/IP66 |
| UNSPSC: | 39121324 |
| UPC: | 00782051096682 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 24126-4XS Electrical Enclosure
Brand: B-Line
Part Number: 24126-4XS

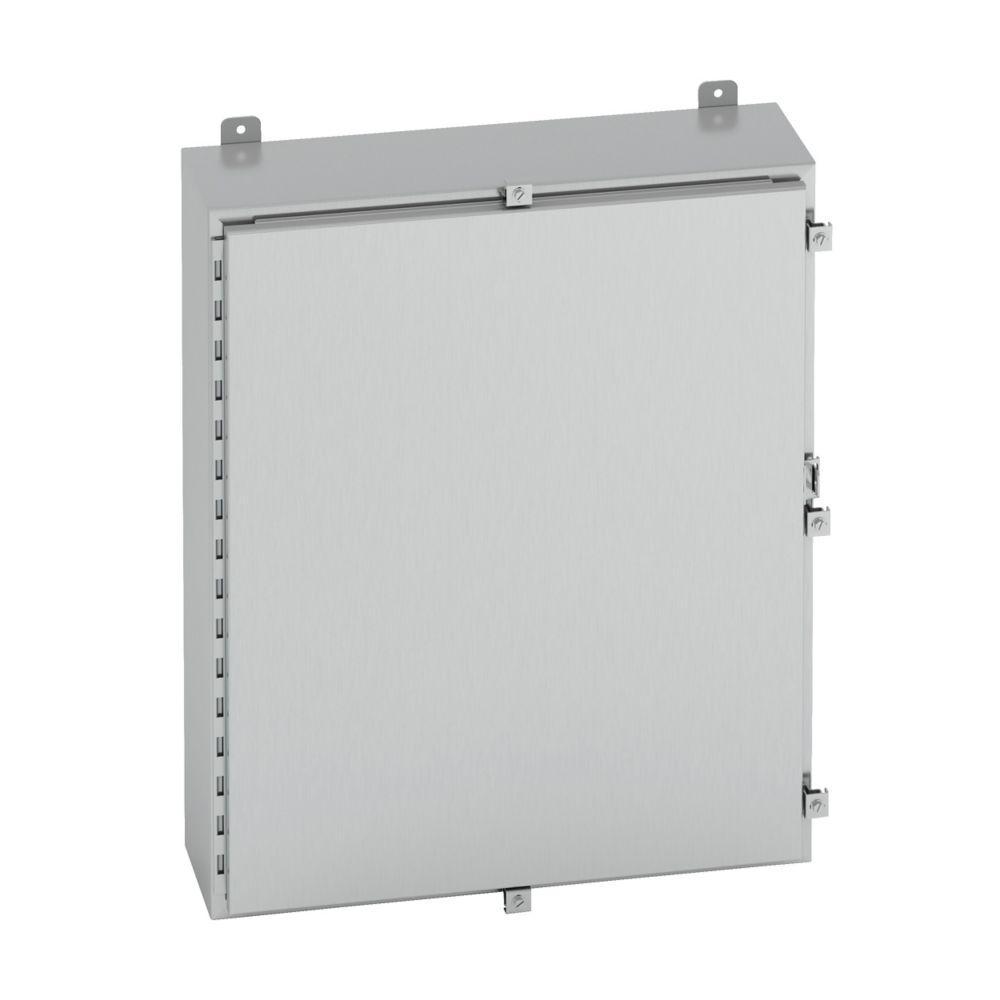

B-Line Electrical Enclosure, 1-Door, 12 in Width, 6 in Depth, 24 in Height, NEMA 4X/IP66 NEMA Rating, Continuous Hinged Cover, 9 in W x 21 in H Panel, Lock: Padlock Hasp, External Feet/Wall Mounting, 304 Stainless Steel, Smooth Brushed, Gray
Additional Description: BLIN-24126-4XS (N) 24126-4XS ENCLOSURE, 24X12X6 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series wall mounted panel enclosure, 24" height, 6" length, 12" width, NEMA 4X, Hinged cover, 4XS enclosure, Wall mount, Medium single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
24126-4XS Application
Commercial, Institutional Buildings, Structures - Building Automation and Monitoring, Aftermarket, Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Safety and Security Systems, Datacenters, IT Space, CI and Hyper Converged, Generation - Renewable Energy, Alternative Energy, Other IT and Datacom - IT and Datacomm - Other, Utility - Substations, Transmission and Distribution, Electrical Control, Instruments, Industrial and Indoor/Outdoor Applications24126-4XS Item Features
- Enclosure and door are fabricated from 14 ga type 304 or type 316L stainless steel
- All continuous welded seams are finished smooth
- Doors are secured to the body with a heavy duty, stainless steel continuous hinge and pin on one side and easy-to release stainless steel door clamps mounted to the other three sides
- Each door has a padlock hasp with sealing hole provision
- Print pocket is provided
- Door has a seamless poured in place gasket
- Ground stud provided on door and body
- Formed lip around enclosure openings to diverts liquids and contaminants
- External mounting feet are provided for secure wall mounting
- Protects against corrosion, windblown dust and rain, splashing water and hose directed water
- Stainless door clamps
24126-4XS Standards
CSA C22.2 No. 94|IEC 60529|UL 508ASKU #2288661Part Number #24126-4XSUNSPSC39121324UPC00782051096682
Image provided may only be a representation of final product and may include optional equipment
