Part Number # 24208-4XF
SKU # 2327031
Image Disclaimers Message
Brand: B-Line
24208-4XF
B-Line 242084XF Electrical Enclosure
Part Number # 24208-4XF
SKU # 2327031
$1518.84 / Each
Typical price:$1800.68 / Each
B-Line 24208-4XF Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 24208-4XF |
| SKU #: | 2327031 |
| NEMA Rating: | NEMA 4X, NEMA 4X/3R/12 |
| Panel Size: | 24.05 in H x 20.39 in W x 9.25 in D |
| Temperature Rating (Degrees F): | -40 to 250, -40 to 250 deg F |
| Type: | 1-Door |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 8, 9.9 in |
| Height: | 27 in |
| Length: | 24 |
| Material: | Fiberglass Reinforced Polyester |
| Mounting type: | Wall |
| Width: | 20, 21.24 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121305 |
| UPC: | 00782051524833 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1518.84 / Each
Typical price:$1800.68 / Each
Quantity:

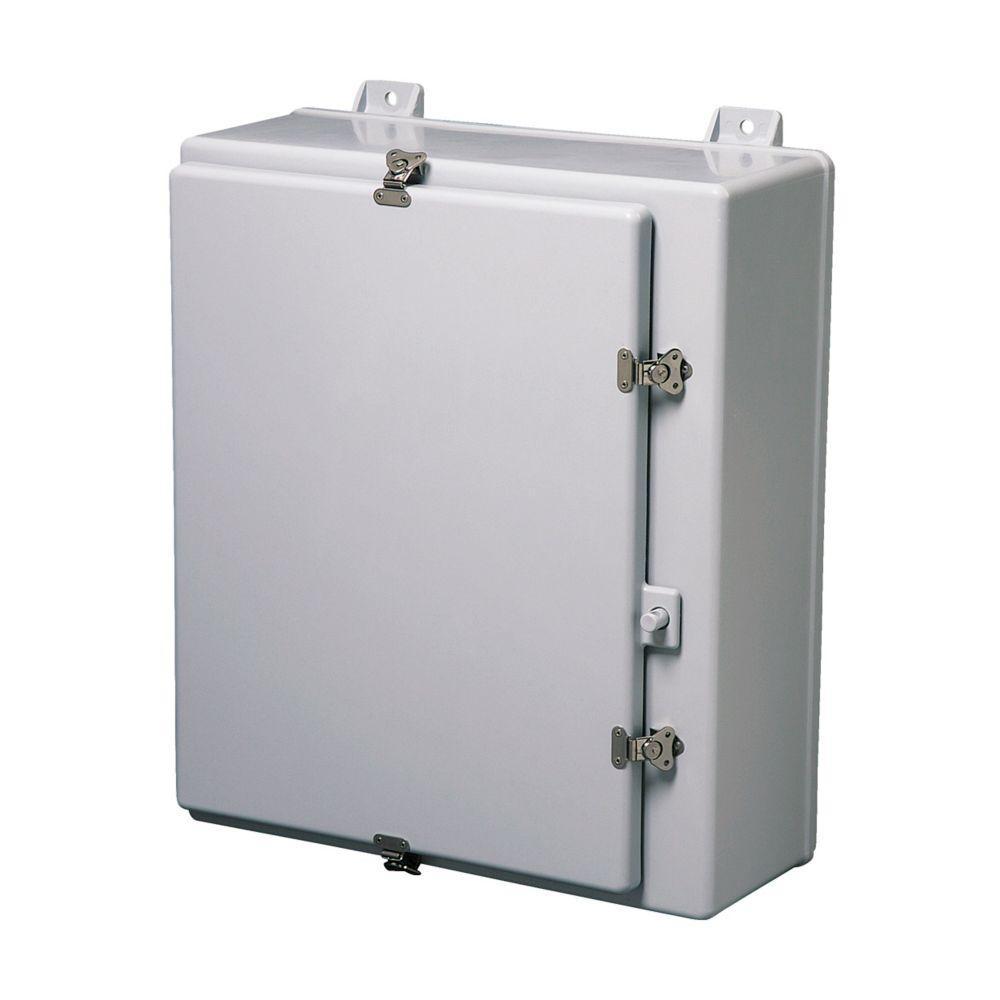

- B-Line Panel Enclosure, 1-Door, 21.24 in Width, 9.9 in Depth, 27 in Height, NEMA 4X, Hinged Cover, Lock: Twist-Lock Latch, Wall Mount, -40 to 250 deg F, Fiberglass Reinforced Polyester, Gray
24208-4XF Application
Datacenters IT Space, CI and Hyper Converged, Generation - Renewable Energy, Alternative Energy, Commercial/Institutional Buildings/Structures - Aftermarket, Lighting and Lighting Controls, Critical Power, Building Automation and Monitoring, Safety and Security Systems, Power Distribution and Controls, Utility - Substations, Utility Transmission and Distribution, Other IT and Datacom24208-4XF Item Features
- Enclosures are an impact resistant, non-conductive, lightweight hot compression molded fiberglass-reinforced polyester
- Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
- Twist lock latches provide ease of entry into enclosure
- 300 series stainless steel used on all external hardware
- Integral mounting feet molded in place for ease of mounting
- Integral mounting bosses utilize threaded brass inserts accepting #10-32 screws for mounting optional panel
- Rounded edges reduce build-up of dust and debris
- Full length stainless steel hinged cover
- Stainless pull drawn catch
24208-4XF Standards
CSA C22.2 File No. 94|UL/cUL 50|UL 94-5VSKU #2327031Part Number #24208-4XFUNSPSC39121305UPC00782051524833
