Part Number # 30208-4XS
SKU # 2337002
Image Disclaimers Message
30208-4XS

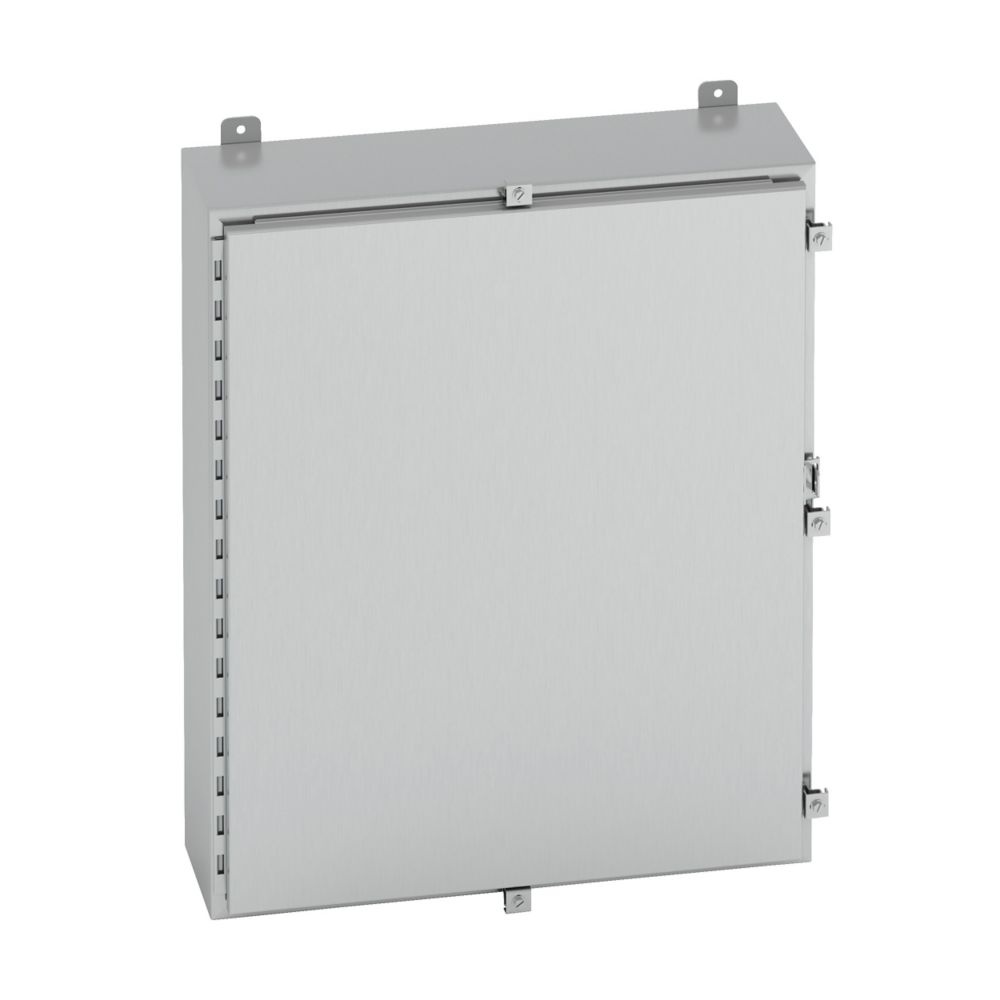

B-Line 302084XS Electrical Enclosure
Part Number # 30208-4XS
SKU # 2337002
B-Line 30208-4XS Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 30208-4XS |
| SKU #: | 2337002 |
| Finish: | Brushed, Smooth Brushed |
| NEMA Rating: | NEMA 4X, NEMA 4X/IP66 |
| Panel Size: | 16.87 in W x 26.87 in H, 26.87 in H x 16.87 in W |
| Type: | 1-Door |
| Country of origin: | US |
| Depth: | 8, 8 in |
| Height: | 30 in |
| Length: | 30 |
| Material: | 304 Stainless Steel |
| Mounting type: | External Feet/Wall, Wall |
| Width: | 20, 20 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121305 |
| UPC: | 00782051407723 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 302084XS Electrical Enclosure
Brand: B-Line
Part Number: 30208-4XS
B-Line Panel Enclosure, 1-Door, 20 in Width, 8 in Depth, 30 in Height, NEMA 4X, Continuous Hinged Cover, 16.87 in W x 26.87 in H Panel, Lock: Padlock Hasp, Wall Mount, 304 Stainless Steel, Brushed
Additional Description: BLIN-30208-4XS (N) 30208-4XS ENCLOSURE, 30X20X8 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series wall mounted panel enclosure, 30" height, 8" length, 20" width, NEMA 4X, Hinged cover, 4XS enclosure, Wall mount, Medium single door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
30208-4XS Application
Other IT and Datacom, Commercial/Institutional Buildings/Structures - Aftermarket, Power Distribution and Controls, Safety and Security Systems, Lighting and Lighting Controls, Critical Power, Building Automation and Monitoring, Generation - Renewable Energy, Alternative Energy, IT Space - CI and Hyper Converged, Utility - Substations, Utility Transmission and Distribution30208-4XS Item Features
- Enclosure and door are fabricated from 14 ga, type 304 stainless steel
- All continuous welded seams are finished smooth
- Doors are secured to the body with a heavy duty, stainless steel continuous hinge and pin on one side and easy to release stainless steel door clamps mounted to the other three sides
- Each door has a padlock hasp with sealing hole provision
- Print pocket provided
- Door has a seamless poured in place gasket
- Ground stud provided on door and body
- Formed lip around enclosure openings to diverts liquids and contaminants
- External mounting feet are provided for secure wall mounting
- Door and sides of body have a smooth #4 brushed finish
30208-4XS Standards
CSA C22.2 File No. 94|IEC 60529|UL 508ASKU #2337002Part Number #30208-4XSUNSPSC39121305UPC00782051407723
