Part Number # 302412-1
SKU # 2267131
302412-1
B-Line 302412-1 Panel Enclosure
Part Number # 302412-1
SKU # 2267131
B-Line 302412-1 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 302412-1 |
| SKU #: | 2267131 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 1/IP30 |
| Panel Size: | 22-1/2 in W x 26 in H, 26 in H x 22-1/2 in W |
| Type: | D80 Subclass Medium |
| Country of origin: | US |
| Depth: | 12.62, 12.62 in |
| Height: | 30 in |
| Length: | 30 |
| Material: | Carbon Steel, Steel |
| Mounting type: | Wall |
| Width: | 24, 24 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051082166 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 302412-1 Panel Enclosure
Brand: B-Line
Part Number: 302412-1
B-Line Panel Enclosure, D80 Subclass Medium, 24 in Width, 12.62 in Depth, 30 in Height, NEMA 1/IP30 NEMA Rating, Continuous Hinged Cover, 22-1/2 in W x 26 in H Panel, Lock: Flush Coin Latch, Wall Mounting, Carbon steel, Polyester Powder Coated, Gray
Additional Description: BLIN-302412-1 (N) 302412-1 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series Type 1 panel enclosures, 30" height, 12" length, 24" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Medium single door, Keyhole slots, Carbon steel
302412-1 Application
Aviation, Commercial, Institutional Buildings, Structures - Aftermarket, Lighting and Lighting Controls, Safety and Security Systems, Building Automation and Monitoring, Critical Power, Power Distribution and Controls,Residential Buildings and Facilities, Electrical Assemblies, Panels and EOEMs, Industrial Facilities and Factories, Other IT and Datacom - Other Infrastructures, Utility, Generation - Renewable Energy, Alternative Energy, Conventional Energy, Water and Wastewater Systems, Datacenters - IT Space, Enterprise, Server Room and Network Closet Applications302412-1 Item Features
- Enclosure and door are fabricated from code gauge steel
- Enclosure body has mounting holes on the back which are accessible with or without the optional panel installed
- Door is secured to the body with a continuous hinge on one side and a flush latch mounted to the opposite side
- Flush latch is designed to operate with either coin or screwdriver
- No knockouts
- Ground stud provided on door
- Continuous piano hinge
302412-1 Standards
ANSI 61|CSA C22.2 No. 40|IEC 60529|UL 50SKU #2267131Part Number #302412-1UNSPSC39121324UPC00782051082166

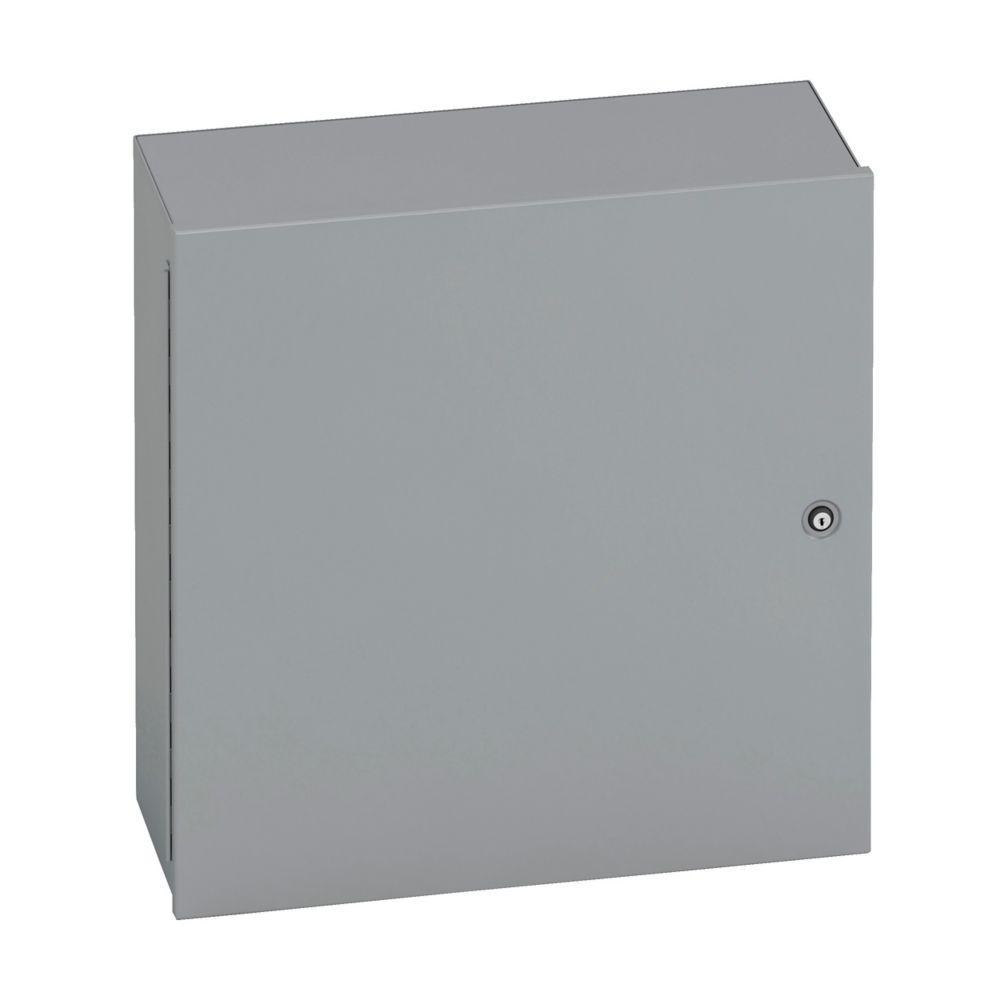

Image provided may only be a representation of final product and may include optional equipment
