Part Number # 30248-SD
SKU # 2365314
30248-SD
B-Line 30248-SD Electrical Enclosure
Part Number # 30248-SD
SKU # 2365314
B-Line 30248-SD Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 30248-SD |
| SKU #: | 2365314 |
| Finish: | Polyester Powder Coated/Phosphate Undercoat |
| Panel Size: | 22 in W x 28 in H |
| Series: | Premier |
| Type: | 1-Solid Door Slotted |
| UNSPSC: | 39121324 |
| UPC: | 00782051091960 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 30248-SD Electrical Enclosure
Brand: B-Line
Part Number: 30248-SD
B-Line Electrical Enclosure, 1-Solid Door Slotted, Series: Premier , 24 in Width, 8 in Depth, 30 in Height, NEMA 4/12 NEMA Rating, Hinged Cover, 22 in W x 28 in H Panel, Lock: Quarter-Turn Flush Latch/Padlock Handle, Wall Mounting, Carbon Steel, Polyester Powder Coated/Phosphate Undercoat, Gray
Additional Description: BLIN-30248-SD (N) 30248-SD 30X24X8 ENCLOSURE, 30X24X8 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series Type 4 panel enclosure,30"height,8"length,24"width,NEMA 4,Hinged cover,SD enclosure,Wall mount,Medium single door,Thru holes,optional external mounting feet,Carbon steel,Seamless poured in-place gasket
30248-SD Application
For electrical controls, instruments, industrial and indoor/outdoor use, protects against circulating and windblown dust, falling dirt, dripping non-corrosive liquids, rain, splashing water and hose directed water, commercial, institutional buildings, structures - building automation and monitoring, aftermarket, critical power, lighting and lighting controls, power distribution and controls, safety and security systems, datacenters, IT space, CI and hyper converged, generation - renewable energy, alternative energy, other IT and datacom - IT and datacomm - other, utility - substations, transmission and distribution30248-SD Item Features
- Enclosure and door are fabricated from code gauge steel
- All continuous welded seams are finished smooth
- Hardware kit contains grounding hardware, 0.312 to 18 flanged hex nuts for panel mounting and sealing washers for body mounting holes
- Body flange trough design is formed around body opening to divert liquid contaminants away from door opening
- Reduced width flange design increases enclosure opening
- Ground stud provided on enclosure body with provision on door
- Doors are secured to the body with concealed hinge design on one side and slotted quarter-turn flush latches on the opposite side
- Doors are easily removed and interchangeable
- Door has a seamless poured in place gasket
- Door opens 180 deg for easy access
- Window-door enclosures feature flush-mounted clear polycarbonate window
- Utility bracket provides wire management and accessory mounting options
- CI and hyper converged
30248-SD Standards
CSA C22.2 No. 94|cUL Listed|IEC 60529|UL 508ASKU #2365314Part Number #30248-SDUNSPSC39121324UPC00782051091960

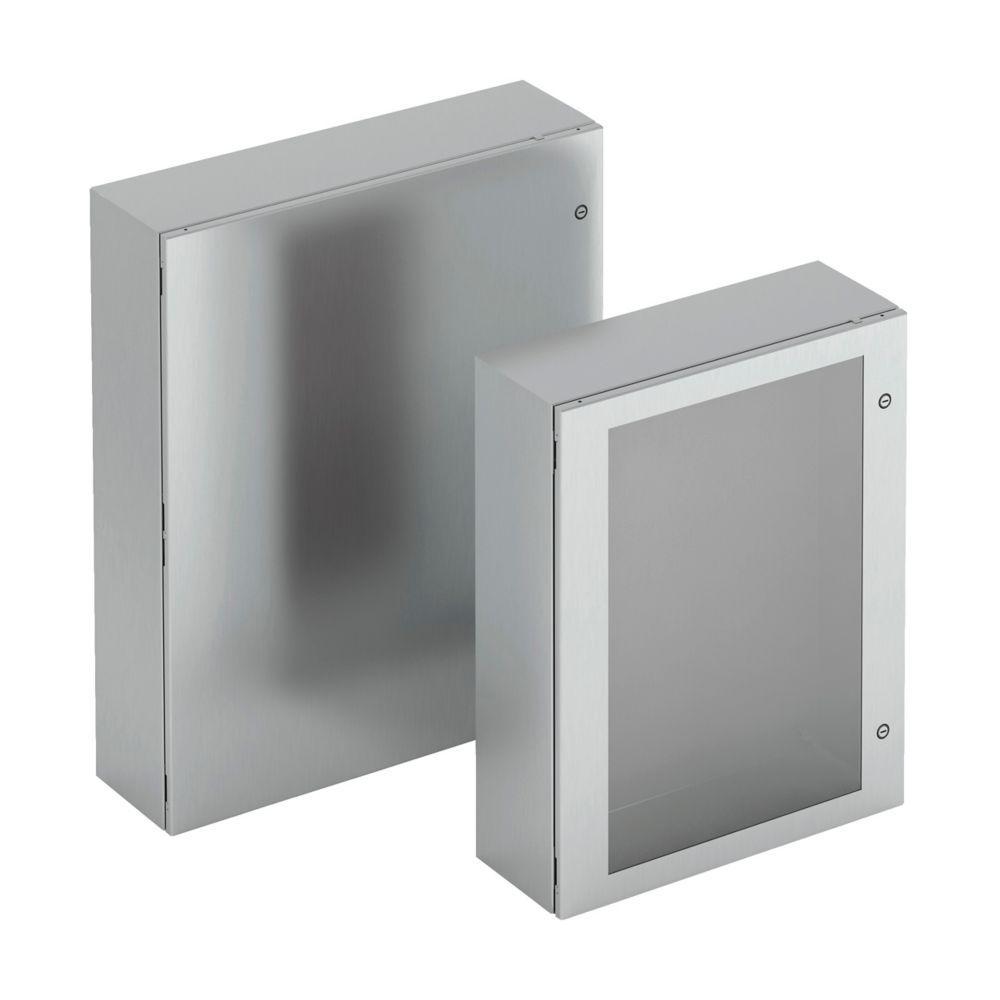

Image provided may only be a representation of final product and may include optional equipment
