30249-12CHSC

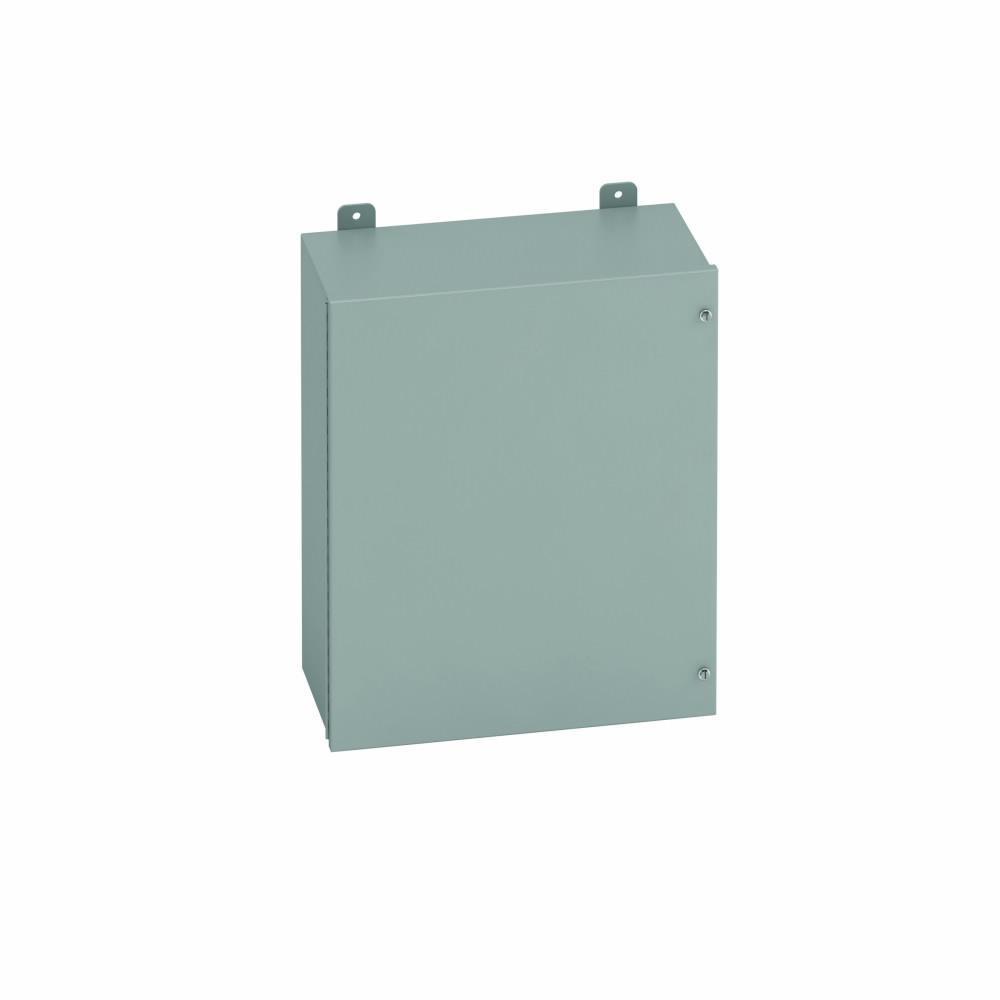

B-Line 30249-12CHSC JIC Enclosure
Part Number # 30249-12CHSC
SKU # 2303751
$970.54 / Each
Typical price:$2160.24 / Each
B-Line 30249-12CHSC Key Features
Brand: B-Line
Part Number # 30249-12CHSC
SKU #2303751
Finish: Polyester Powder Coated, Polyester Powder Coated/Phosphate Undercoat
NEMA Rating: NEMA 12, NEMA 12/IP65
Panel Size: 20.87 in W x 26.87 in H, 26.87 in H x 20.87 in W
Type: 1-Door, Large
Color: Gray
Country of origin: US
Depth: 9, 9 in
Height: 30 in
Length: 30
Material: 14 ga Steel, Steel
Mounting type: External Feet/Wall, Wall
Width: 24, 24 in
Manufacturer Name: Eaton
UNSPSC: 39121324
UPC: 00782051770803
$970.54 / Each
Typical price:$2160.24 / Each
B-Line 30249-12CHSC JIC Enclosure
Brand: B-Line
Part Number: 30249-12CHSC
B-Line JIC Panel Enclosure, Large, 24 in Width, 9 in Depth, 30 in Height, NEMA 12, Continuous Piano Hinged Cover, 20.87 in W x 26.87 in H Panel, Lock: Screw, Wall Mount, 14 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-30249-12CHSC (N) 30249-12CHSC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series JIC panel enclosure, 30" height, 9" length, 24" width, NEMA 12, Hinged cover, 12CHSC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
30249-12CHSC Application
Commercial/Institutional Buildings/Structures - Power Distribution and Controls, Critical Power, Lighting and Lighting Controls, Industrial Facilities and Factories - Lighting and Lighting Controls, Automation and Monitoring, Manufacturing Process Electrification and Control, Critical Power, Safety and Security Systems, Power Distribution and Control, Utility - Substations, Utility Transmission and Distribution30249-12CHSC Item Features
- Enclosure and door are fabricated from 14 ga steel
- All continuous welded seams are finished smooth
- Door is secured to the body with a continuous hinge on one side and captive hex head screws which thread into sealed well nuts on the opposite side
- Each door has a print pocket
- Door has a fixed, oil-resistant gasket
- Ground stud provided on door
- Heavy gauge panel mounted to 3/4 to 16 collar studs is provided with enclosure
- External mounting feet are provided for secure wall mounting
30249-12CHSC Standards
CSA C22.2 File No. 94|IEC 60529|UL 508ASKU #2303751Part Number #30249-12CHSCUNSPSC39121324UPC00782051770803
