Part Number # 3336GNK
SKU # 2338769
Image Disclaimers Message
3336GNK

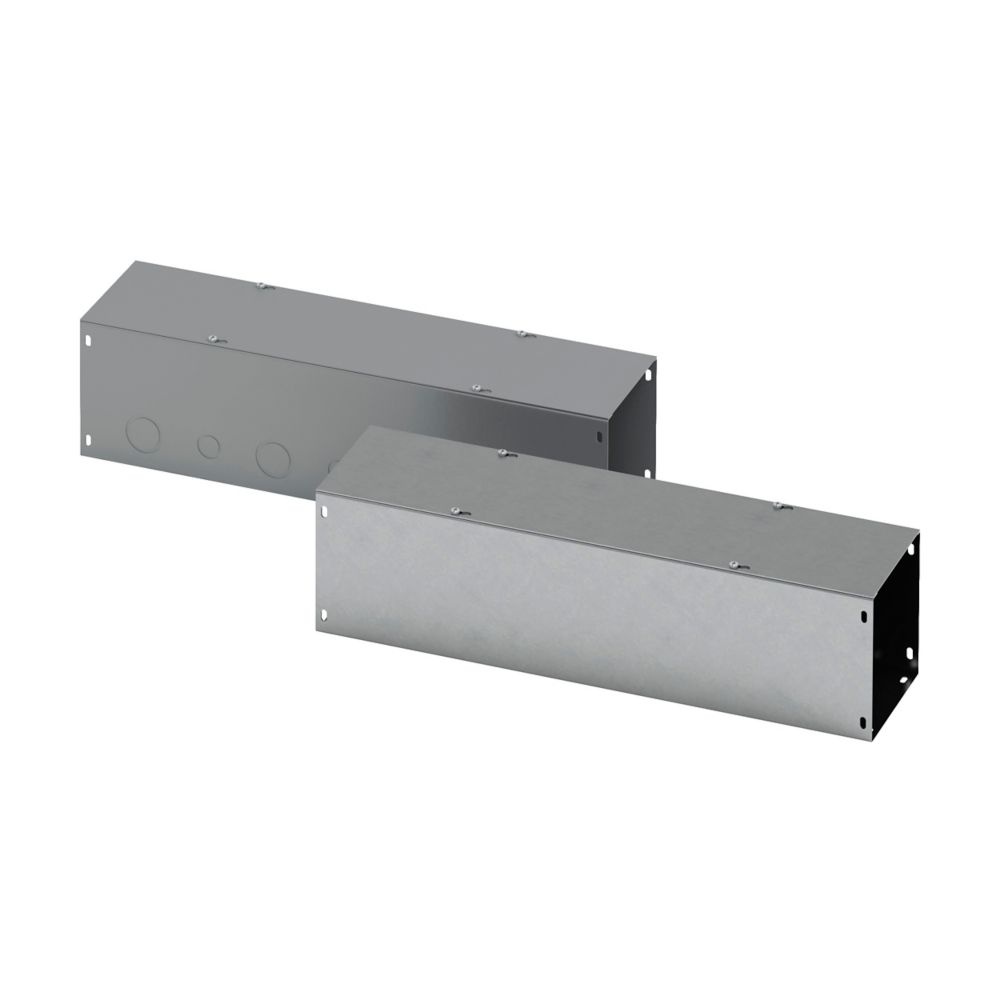

B-Line 3336GNK Lay-In Wireway
Part Number # 3336GNK
SKU # 2338769
$57.91 / Each
Typical price:$181.64 / Each
B-Line 3336GNK Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 3336GNK |
| SKU #: | 2338769 |
| Finish: | Acrylic Electro Coated/Painted, Acrylic Electrocoated/Painted |
| NEMA Rating: | NEMA 1, NEMA 1/IP30 |
| Type: | Straight Section |
| Color: | Gray |
| Country of origin: | US |
| Height: | 3, 3 in |
| Length: | 36, 36 in |
| Material: | 16 ga Steel, Steel |
| Width: | 3, 3 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131710 |
| UPC: | 00782051302202 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$57.91 / Each
Typical price:$181.64 / Each
Quantity:
B-Line 3336GNK Lay-In Wireway
Brand: B-Line
Part Number: 3336GNK
B-Line Lay-In Wireway, Straight Section, 36 in Length, 3 in Width, 3 in Height, Screw Cover, NEMA 1, 16 ga Steel, Gray, Acrylic Electrocoated/Painted
Additional Description: BLIN-3336GNK (N) 3336 G NK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series wireway, 3" height, 36" length, 3" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 16 gauge
3336GNK Application
Used for control and power cable, cable and wire junction, distribution and termination applications3336GNK Item Features
- Wireway body and cover are fabricated from code gauge steel or galvanized steel
- Wireway body has mounting holes on the back
- Cover is secured to the body with plated screws
- Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws
- Wireway exceeding 72 in L has 2 overlapping covers
- Variety of fittings allow runs which can change direction, junction and terminate
- Standard wireway connectors (sold separately) have a gate feature which can swing completely open allowing for lay-in of wire and cable
- Interchangeable with type 1 hinge cover wireway and fittings when HSCA connector is used
- Without knockout
3336GNK Standards
CSA C22.2 #26|IEC 60529|UL 870SKU #2338769Part Number #3336GNKUNSPSC39131710UPC00782051302202
