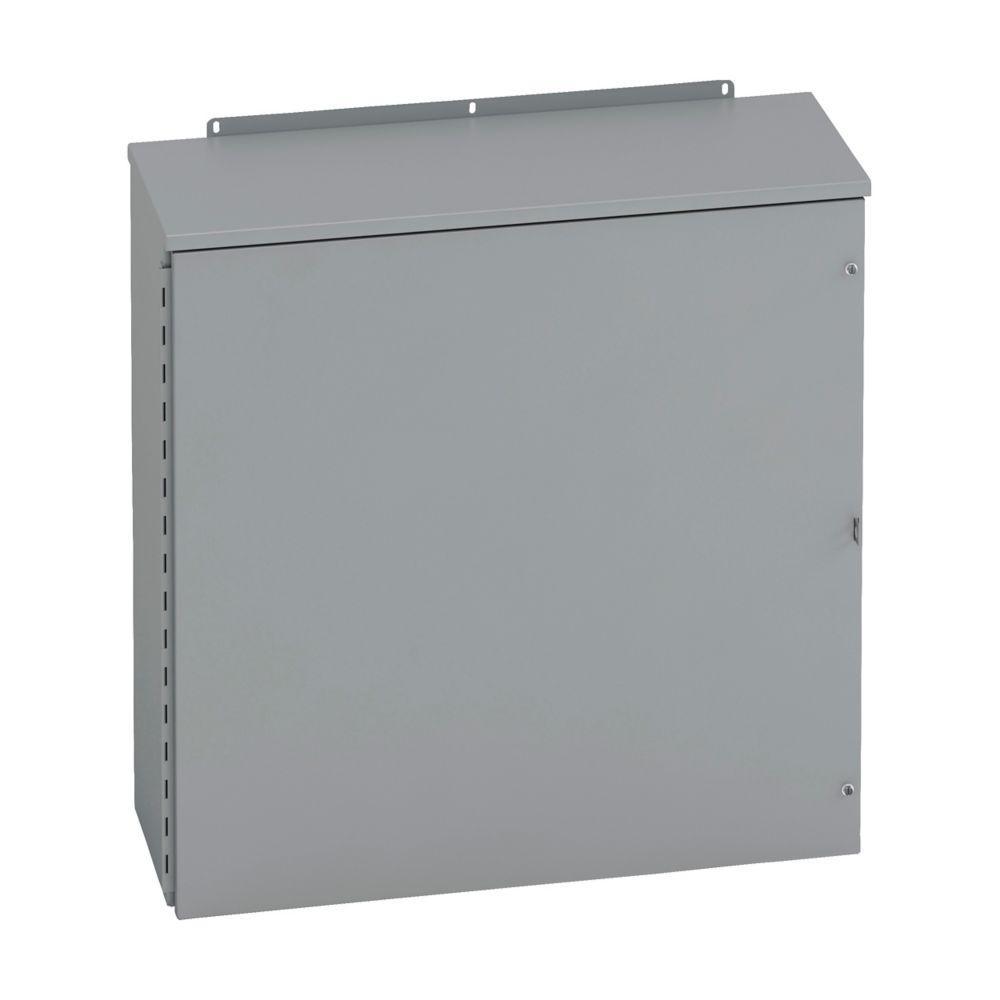

B-Line 362412RHC Electrical Enclosure
Part Number # 362412RHC
SKU # 2288577
$881.81 / Each
Typical price:$2433.79 / Each
B-Line 362412RHC Key Features
Brand: B-Line
Part Number # 362412RHC
SKU #2288577
Finish: Galvanneal/Polyester Powder Coated/Phosphate Undercoat, Galvannealed/Polyester Powder Coated
NEMA Rating: NEMA 3R, NEMA 3R/IP32
Panel Size: 20.87 in W x 32.87 in H, 32.87 in H x 20.87 in W
Type: Large
Color: Gray
Country of origin: US
Depth: 12, 12 in
Height: 36 in
Length: 36
Material: 16 ga Steel, Steel
Mounting type: External Feet/Wall, Wall
Width: 24, 24 in
Manufacturer Name: Eaton
UNSPSC: 39121332
UPC: 00782051234404
$881.81 / Each
Typical price:$2433.79 / Each
B-Line 362412RHC Electrical Enclosure
Brand: B-Line
Part Number: 362412RHC
B-Line Panel Enclosure, Large, 24 in Width, 12 in Depth, 36 in Height, NEMA 3R, Continuous Hinged Cover, 20.87 in W x 32.87 in H Panel, Lock: Padlock Hasp, Wall Mount, 16 ga Steel, Galvannealed/Polyester Powder Coated, Gray
Additional Description: BLIN-362412RHC (N) 362412 RHC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series Type 3/3R panel enclosures, 36" height, 12" length, 24" width, NEMA 3R, Hinged cover, RHC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel
362412RHC Application
Commercial/Institutional Buildings/Structures - Building Automation and Monitoring, Critical Power, Lighting and Lighting Controls, Safety and Security Systems, Power Distribution and Controls, Rail and Rail Systems, Electrical Assemblies, Panels and EOEMs, Mobile Machinery and Equipment, Utility - Substations, Utility Transmission and Distribution362412RHC Item Features
- Enclosure and door are fabricated from code gauge galvanneal steel
- Enclosure standard without knockouts
- Door is secured to the body with a continuous hinge and stainless steel pin on one side and captive screws on the opposite side
- Door has padlock hasp with sealing hole provision
- External mounting feet are provided for secure wall mounting
- Ground stud provided on door
- Piano hinge with stainless steel pin
- Rain hood
362412RHC Standards
CSA C22.2 File No. 40|IEC 60529|UL 50SKU #2288577Part Number #362412RHCUNSPSC39121332UPC00782051234404
