Part Number # 36249-12CHSC
SKU # 2200462
Image Disclaimers Message
36249-12CHSC

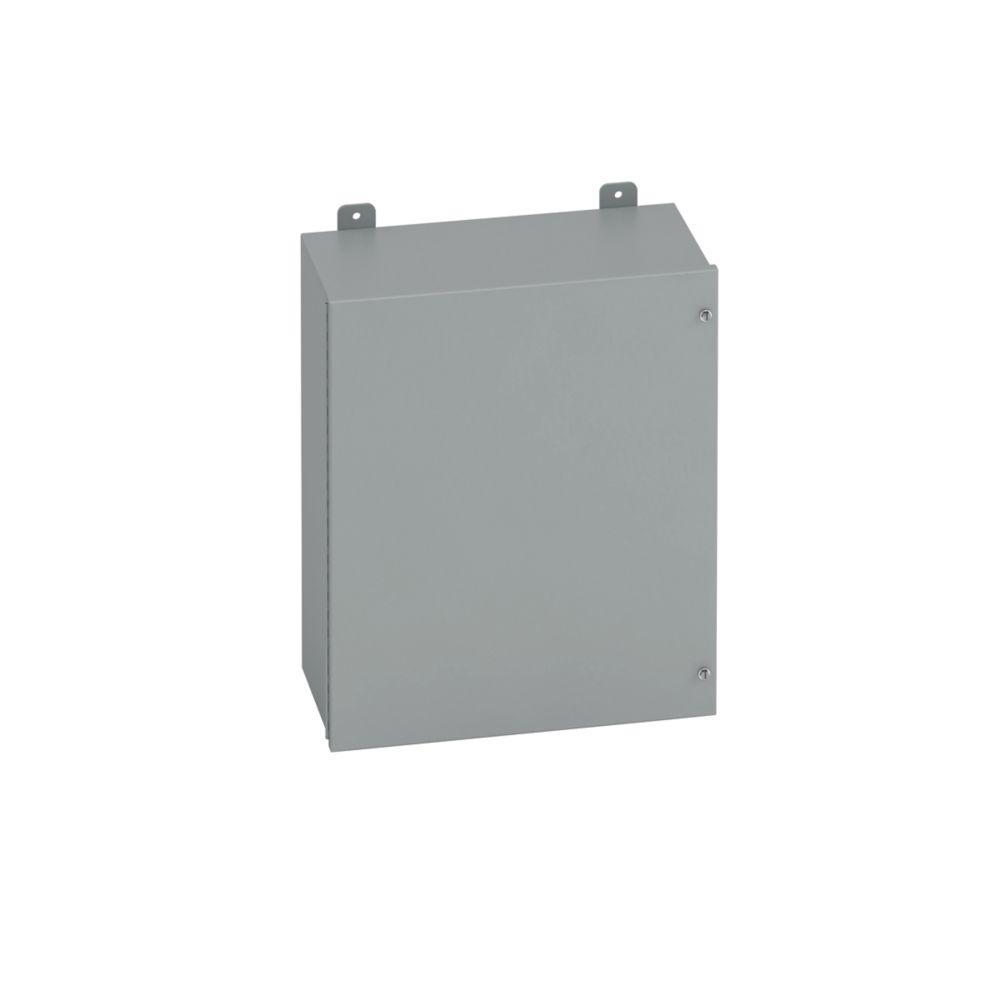

B-Line 36249-12CHSC JIC Enclosure
Part Number # 36249-12CHSC
SKU # 2200462
$1114.38 / Each
Typical price:$2480.40 / Each
B-Line 36249-12CHSC Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 36249-12CHSC |
| SKU #: | 2200462 |
| Finish: | Polyester Powder Coated/Phosphate Undercoat |
| NEMA Rating: | NEMA 12/IP65 |
| Panel Size: | 20.87 in W x 32.87 in H, 32.87 in H x 20.87 in W |
| Type: | 1-Door |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 9, 9 in |
| Height: | 36 in |
| Length: | 36 |
| Material: | Carbon Steel, Steel |
| Mounting type: | External Feet/Wall |
| Width: | 24, 24 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051770902 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1114.38 / Each
Typical price:$2480.40 / Each
Quantity:
- B-Line JIC Enclosure, 1-Door, 24 in Width, 9 in Depth, 36 in Height, NEMA 12/IP65 NEMA Rating, Large Continuous Hinged/Screw Cover, 20.87 in W x 32.87 in H Panel, External Feet/Wall Mounting, Carbon Steel, Polyester Powder Coated/Phosphate Undercoat, Gray
36249-12CHSC Application
For electrical controls, instruments, industrial and indoor/outdoor use, protects against circulating dust, falling dirt and dripping non-corrosive liquids, commercial, institutional buildings, structures - critical power, lighting and lighting controls, power distribution and controls, industrial facilities and factories facility, automation and monitoring, critical power, safety and security systems, manufacturing process electrification and control, utility - substations, transmission and distribution applications36249-12CHSC Item Features
- Enclosure and door are fabricated from 14 ga steel
- All continuous welded seams are finished smooth
- Door is secured to the body with a continuous hinge on one side and captive hex head screws which thread into sealed well nuts ON the opposite side
- Each door has a print pocket
- Door has a fixed, oil-resistant gasket
- Ground stud provided on door
- Heavy gauge panel mounted to 3/4 to 16 collar studs is provided with enclosure
- External mounting feet are provided for secure wall mounting
- Panels have a white enamel finish
- Continuous piano hinge, white back, print pocket, plated screw
36249-12CHSC Standards
CSA C22.2 No. 94|IEC 60529|UL 508ASKU #2200462Part Number #36249-12CHSCUNSPSC39121324UPC00782051770902
