Part Number # 363612RHC
SKU # 2436896
363612RHC
B-Line 363612RHC
Part Number # 363612RHC
SKU # 2436896
B-Line 363612RHC Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 363612RHC |
| SKU #: | 2436896 |
| Finish: | Galvannealed/Polyester Powder Coated/Phosphate Undercoat |
| NEMA Rating: | NEMA 3R/IP32 |
| Panel Size: | 32.87 in W x 32.87 in H |
| Country of origin: | US |
| Depth: | 12 in |
| Height: | 36 in |
| Material: | Carbon Steel |
| Mounting type: | External Feet/Wall |
| Width: | 36 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051408355 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 363612RHC
Brand: B-Line
Part Number: 363612RHC
B-Line Electrical Enclosure, 36 in Width, 12 in Depth, 36 in Height, NEMA 3R/IP32 NEMA Rating, Large Continuous Hinge Cover, 32.87 in W x 32.87 in H Panel, Lock: Padlock Hasp, External Feet/Wall Mounting, Steel, Galvanneal/Polyester Powder Coated/Phosphate Undercoat, Gray
Additional Description: BLIN-363612RHC 363612 RHC
Catalog Description: Eaton B-Line series Type 3/3R panel enclosures, 36" height, 12" length, 36" width, NEMA 3R, Hinged cover, RHC enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel
363612RHC Application
Wiring Boxes, Junction and Pull Boxes, Commercial, Institutional Buildings, Structures - Building Automation and Monitoring, Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Safety and Security Systems, Electrical Assemblies, Panels and EOEMs, Mobile Machinery and Equipment - Other, Rail and Rail Systems, Utility - Substations, Transmission and Distribution Applications363612RHC Item Features
- Used as wiring boxes, junction and pull boxes
- Enclosure and door are fabricated from code gauge galvaneal steel
- Enclosure standard without knockouts
- Door is secured to the body with a continuous hinge and stainless steel pin ON one side and captive screws ON the opposite side
- Door has padlock hasp with sealing hole provision
- External mounting feet are provided for secure wall mounting
- Ground stud provided on door
- Protects against falling rain, sleet and external ice formation
- Rain hood, plated screws, piano hinge with stainless steel pin
363612RHC Standards
ANSI 61|CSA C22.2 No. 40|IEC 60529|UL 50SKU #2436896Part Number #363612RHCUNSPSC39121324UPC00782051408355

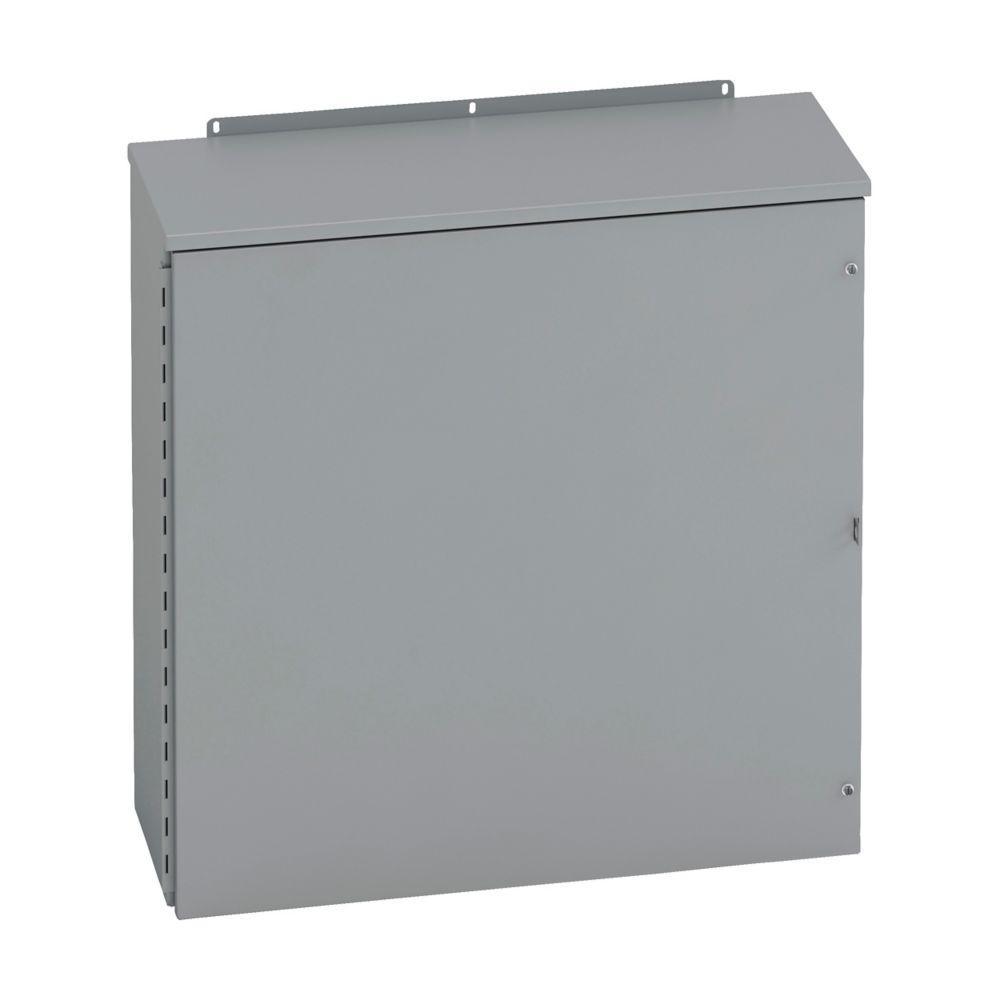

Image provided may only be a representation of final product and may include optional equipment
