Part Number # 366012-4XSD3PT
SKU # 2257062
Image Disclaimers Message
366012-4XSD3PT

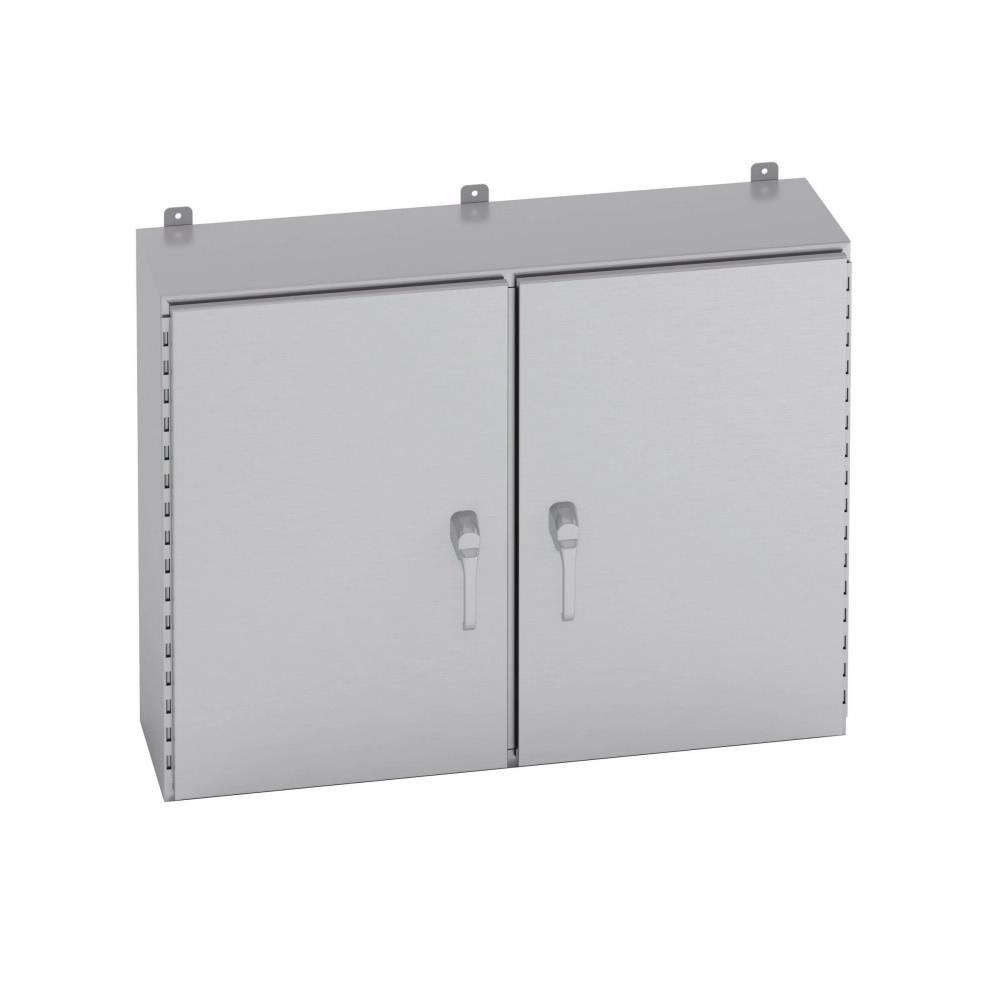

B-Line 366012-4XSD3PT Electrical Enclosure
Part Number # 366012-4XSD3PT
SKU # 2257062
B-Line 366012-4XSD3PT Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 366012-4XSD3PT |
| SKU #: | 2257062 |
| Finish: | Brushed, Smooth Brushed |
| NEMA Rating: | NEMA 4X |
| Panel Size: | 32.87 in W x 56.87 in H, 56.87 in H x 32.87 in W |
| Type: | 2-Door |
| Country of origin: | US |
| Depth: | 12, 12 in |
| Height: | 36 in |
| Length: | 30 |
| Material: | 304 Stainless Steel, Stainless Steel |
| Mounting type: | Wall |
| Width: | 60, 60 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121305 |
| UPC: | 00782051885590 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 366012-4XSD3PT Electrical Enclosure
Brand: B-Line
Part Number: 366012-4XSD3PT
B-Line Panel Enclosure, 2-Door, 60 in Width, 12 in Depth, 36 in Height, NEMA 4X NEMA Rating, Continuous Hinged Cover, 32.87 in W x 56.87 in H Panel, Lock: 3-Point Padlock Handle, Wall Mounting, Stainless Steel, Brushed
Additional Description: BLIN-366012-4XSD3PT (N) 366012-4XSD3PT MOUNT ENC 36X60X12 Mount Enclosure 36x60x12 NON-CANCELABLE, NON-RETURNABLE steel enclosure
Catalog Description: Eaton B-Line series wall mounted panel enclosure, 36" height, 12" length, 60" width, NEMA 4X, Hinged cover, 4XSD3PT enclosure, Wall mount, Medium double door, External mounting feet, 304 stainless steel, Seamless poured in-place gasket
366012-4XSD3PT Application
IT Space - CI and Hyper Converged, Other IT and Datacom, Commercial/Institutional Buildings/Structures - Safety and Security Systems, Lighting and Lighting Controls, Building Automation and Monitoring, Critical Power, Power Distribution and Controls, Aftermarket, Generation - Renewable Energy, Alternative Energy, Utility - Substations, Utility Transmission and Distribution366012-4XSD3PT Item Features
- Enclosure and cover are fabricated from 14 ga stainless steel
- All continuous welded seams are finished smooth
- Stainless Steel continuous hinge and pin
- Internal three-point latching with a keylocking and padlock handle
- Removable center post for easy panel installation
- Door has a seamless poured in place gasket
- Formed lip around enclosure openings to diverts liquids and contaminants
- Ground stud provided on door and body
- Print pocket provided
- External mounting feet
- Door and sides of body have a smooth #4 brushed finish
366012-4XSD3PT Standards
CSA C22.2 File No. 94|UL 508ASKU #2257062Part Number #366012-4XSD3PTUNSPSC39121305UPC00782051885590
