Part Number # 423012-12
SKU # 2257446
Image Disclaimers Message
423012-12

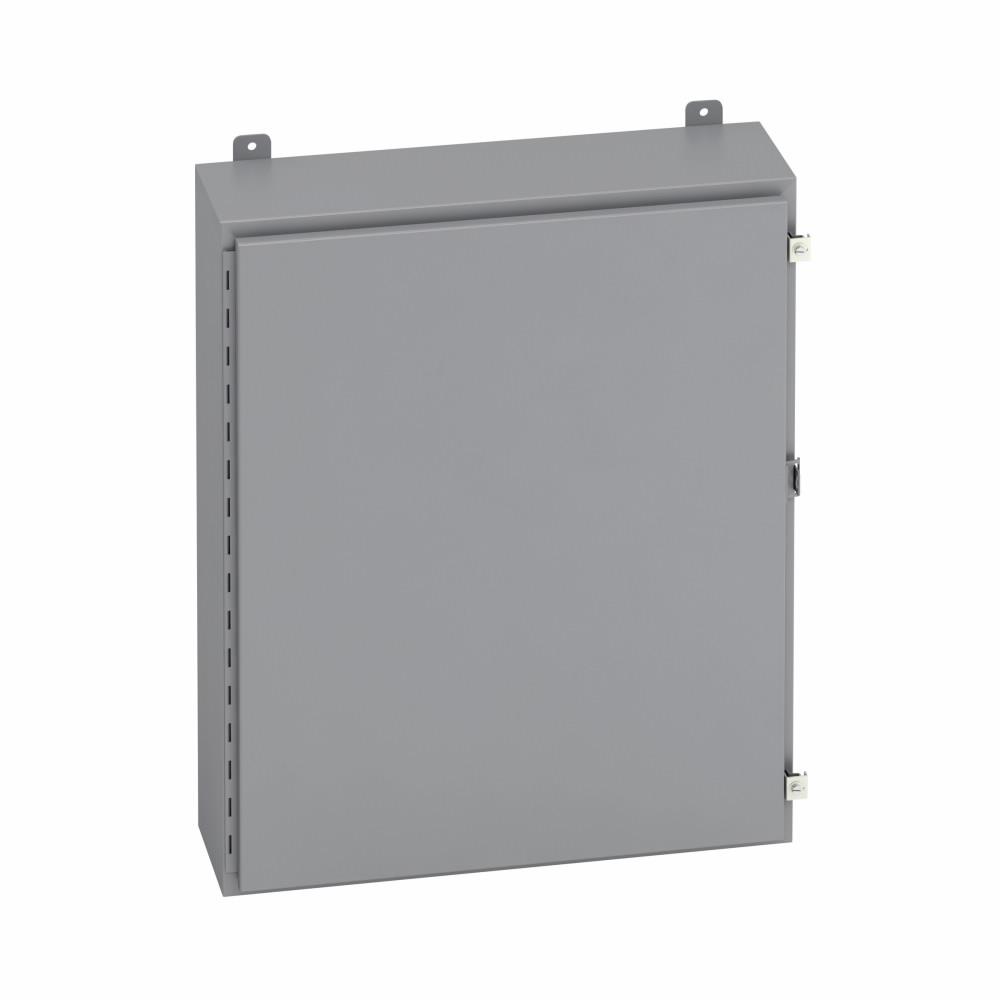

B-Line 423012-12 Electrical Enclosure
Part Number # 423012-12
SKU # 2257446
B-Line 423012-12 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 423012-12 |
| SKU #: | 2257446 |
| Finish: | Polyester Powder Coated, Polyester Powder Coated/Phosphate Undercoat |
| NEMA Rating: | NEMA 12, NEMA 12/IP65 |
| Panel Size: | 26.87 in W x 38.87 in H, 38.87 in H x 26.87 in W |
| Type: | 1-Door |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 12, 12 in |
| Height: | 42 in |
| Length: | 42 |
| Material: | 14 ga Steel, Steel |
| Mounting type: | External Feet/Wall, Wall |
| Width: | 30, 30 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051408805 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 423012-12 Electrical Enclosure
Brand: B-Line
Part Number: 423012-12
B-Line Panel Enclosure, 1-Door, 30 in Width, 12 in Depth, 42 in Height, NEMA 12, Continuous Hinged Cover, 26.87 in W x 38.87 in H Panel, Lock: Padlock Hasp, Wall Mount, 14 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-423012-12 (N) 423012-12 42X30X12 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series wall mounted panel enclosure, 42" height, 12" length, 30" width, NEMA 12, Hinged cover, 12 enclosure, Wall mount, Medium single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
423012-12 Application
Other IT and Datacom, Utility - Substations, Utility Transmission and Distribution, IT Space - CI and Hyper Converged, Commercial/Institutional Buildings/Structures - Aftermarket, Critical Power, Building Automation and Monitoring, Safety and Security Systems, Lighting and Lighting Controls, Power Distribution and Controls, Generation - Renewable Energy, Alternative Energy423012-12 Item Features
- Enclosure and door are fabricated from 14 ga steel
- All continuous welded seams are finished smooth
- Doors are secured to the body with a heavy duty continuous hinge on one side and easy-to-release door clamps mounted to the opposite side
- Each door has a padlock hasp with sealing hole provision
- Print pocket provided
- Door has a seamless poured in place gasket
- Ground stud provided on door and body
- Formed lip around enclosure openings to diverts liquids and contaminants
- External mounting feet are provided for secure wall mounting
- Plated door clamps
423012-12 Standards
CSA C22.2 File No. 94|IEC 60529|UL 508ASKU #2257446Part Number #423012-12UNSPSC39121324UPC00782051408805
