Part Number # 4412-12FW
SKU # 2301937
Image Disclaimers Message
Brand: B-Line
4412-12FW

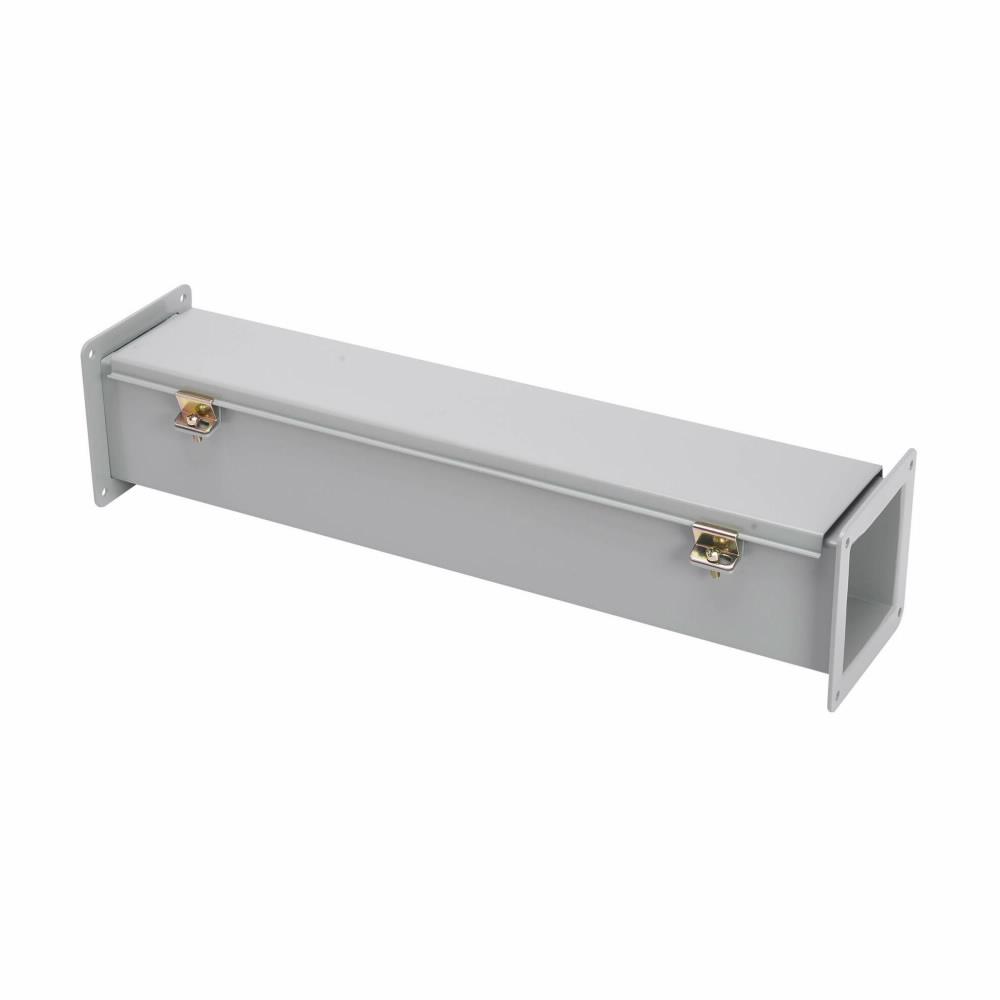

B-Line 4412-12FW Wireway
Part Number # 4412-12FW
SKU # 2301937
$162.65 / Each
Typical price:$400.82 / Each
B-Line 4412-12FW Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 4412-12FW |
| SKU #: | 2301937 |
| Finish: | Painted |
| NEMA Rating: | NEMA 12, NEMA 12/IP54 |
| Type: | Feed-Through Straight Section, Straight Section |
| Color: | Gray |
| Country of origin: | US |
| Height: | 4, 4 in |
| Length: | 12, 12 in |
| Material: | 14 ga Steel, Steel |
| Width: | 4, 4 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131710 |
| UPC: | 00782051109306 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$162.65 / Each
Typical price:$400.82 / Each
Quantity:
B-Line 4412-12FW Wireway
Brand: B-Line
Part Number: 4412-12FW
B-Line Feed-Through Wireway, Straight Section, 12 in Length, 4 in Width, 4 in Height, Hinged Screw Cover, NEMA 12, 14 ga Steel, Gray, Painted
Additional Description: BLIN-4412-12FW (N) 4412-12FW SECTION NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series wireway, 4" height, 12" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, ANSI 61 gray, 14 gauge
4412-12FW Application
Used for control and power cable applications, protects against circulating dust, falling dirt and dripping noncorrosive liquids4412-12FW Includes
(1) Gasket Kit4412-12FW Item Features
- Wireway body and cover are fabricated from 14 ga steel
- Flanges are 10 ga steel
- All continuous welded seams are finished smooth
- External and internal edges are rounded to prevent injury or damage to cable
- Covers are secured to the wireway body with heavy duty hinges on one side and easy-to-operate screw clamps mounted to the opposite side
- Continuous flanged ends assure rigid connections of wireway and fittings
- Covers have a seamless poured in-place gasket
- An oil-resistant gasket is provided for installation between flanges
4412-12FW Standards
CSA C22.2 #26|IEC 60529|UL 870SKU #2301937Part Number #4412-12FWUNSPSC39131710UPC00782051109306
