Part Number # 44120-12FW
SKU # 2267409

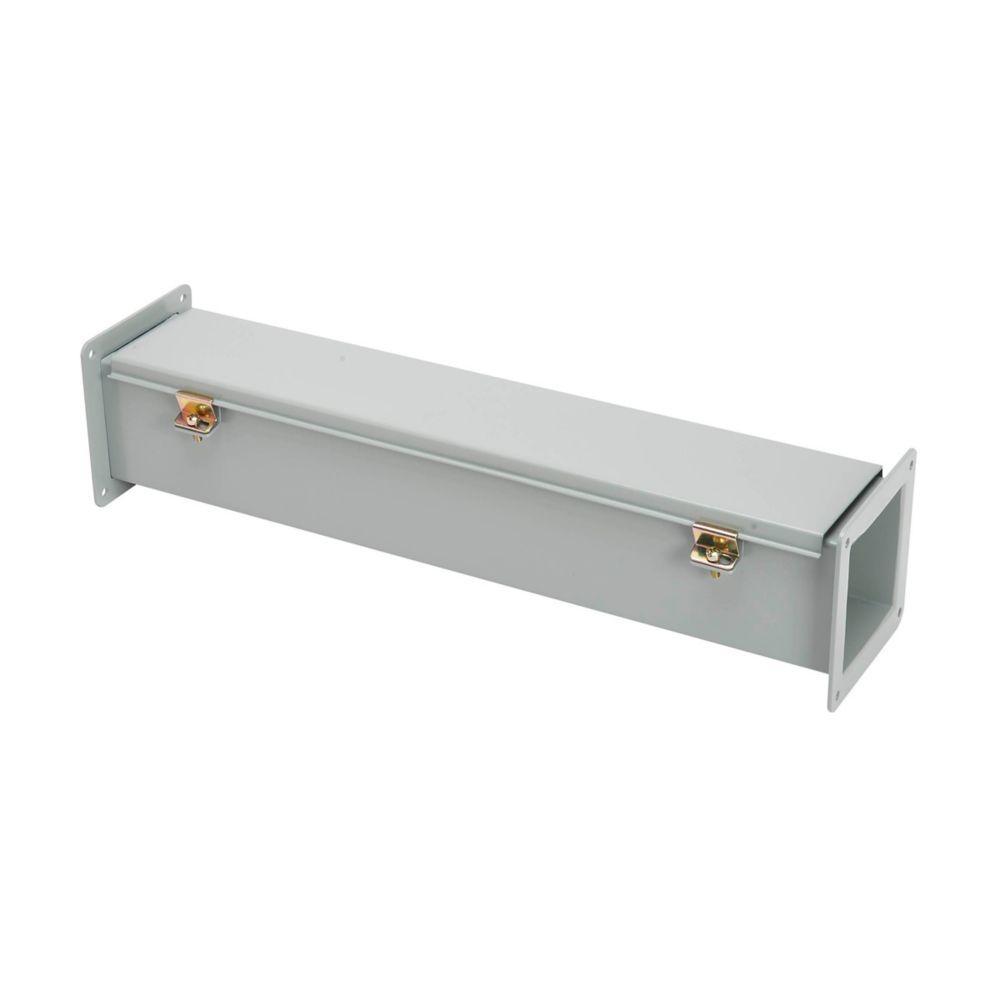

Image provided may only be a representation of
final product and may include optional equipment
44120-12FW
B-Line 44120-12FW Feed-Through Wireway
Part Number # 44120-12FW
SKU # 2267409
B-Line 44120-12FW Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 44120-12FW |
| SKU #: | 2267409 |
| Finish: | Painted |
| NEMA Rating: | NEMA 12/IP54 |
| Series: | FW |
| Type: | Seamless Poured In-Place Straight Section, Straight Section |
| Country of origin: | US |
| Height: | 4, 4 in |
| Length: | 120, 120 in |
| Material: | Steel |
| Width: | 4, 4 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131710 |
| UPC: | 00782051109351 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 44120-12FW Feed-Through Wireway
Brand: B-Line
Part Number: 44120-12FW
B-Line Wireway, Seamless Poured In-Place Straight Section, Series: FW, 120 in Length, 4 in Width, 4 in Height, Hinged/Screw Clamp Cover, NEMA 12/IP54 NEMA Rating, Steel, Gray, Painted
Additional Description: BLIN-44120-12FW (N) 44120-12FW SECTION NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series wireway, 4" height, 120" length, 4" width, 12FW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Seamless poured in-place, Hinged, ANSI 61 gray, 14 gauge
44120-12FW Application
Commercial, Institutional Buildings, Structures and Other Applications44120-12FW Includes
Gasket Kit44120-12FW Item Features
- Flanges are 10 ga steel
- All continuous welded seams are finished smooth
- External and internal edges are rounded to prevent injury or damage to cable
- Continuous flanged ends assure rigid connection of wireway and fitting
- Covers have a seamless poured in place gasket
- An oil-resistant gasket is provided for installation between flanges
- Wireway body and cover are fabricated from 14 ga steel
- Covers are secured to the wireway and fitting body with heavy duty butt hinges and quick release latches
- Covers have a fixed, oil-resistant gasket
- All covers and sealing plate can be hinged completely open or removed to allow for continuous lay-in cable feed
- All straight sections and fitting are furnished with sealing plate kits
- ANSI 61 polyester powder, wash and phosphate undercoat
44120-12FW Standards
CSA C22.2 File No. 26|IEC 60529|UL File No. 870|UL ListedSKU #2267409Part Number #44120-12FWUNSPSC39131710UPC00782051109351
