Part Number # 44120G
SKU # 2434270
B-Line 44120G Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 44120G |
| SKU #: | 2434270 |
| Finish: | Acrylic Electro Coated/Painted |
| Knockout Size: | 3/4 in, 1/2 in, 1-1/4 in, 1 in |
| NEMA Rating: | NEMA 1/IP30 |
| Number of Knockouts: | 78 |
| Series: | G Series |
| Type: | Straight Section |
| Country of origin: | US |
| Height: | 4 in |
| Length: | 120 in |
| Material: | Steel |
| Width: | 4 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131710 |
| UPC: | 00078205110150 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 44120G
Brand: B-Line
Part Number: 44120G
B-Line Lay-In Wireway, Straight Section, Series, 120 Length, Width in, in 4, 4 Height, Cover Type in, Number of Knockouts, 3/4 or 1/2 in, 1-1/4 or 1 in Knockout, NEMA Rating, Steel, Color, Acrylic Electro Coated/Painted
Additional Description: BLIN-44120G (S)
Catalog Description: Eaton B-Line series wiring trough, 4" height, 120" length, 4" width, G wireway, Thru holes, 39 top knockouts, 39 bottom knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 16 gauge
44120G Application
Industrial Facilities Factories, Facility, Automation and Monitoring Applications44120G Item Features
- Wireway body and cover are fabricated from code gauge steel or galvanized steel
- Wireway body has mounting holes on the back
- Cover is secured to the body with plated screws
- Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws
- Wireway exceeding 72 in L has two overlapping covers
- Variety of fitting allow runs which can change direction, junction and terminate
- Standard wireway connector have a gate feature which can swing completely open allowing for lay-in of wire and cable
- Interchangeable with type 1 hinge cover wireway and fitting when HSCA connector is used
- A2 discount schedule
- AK1 and Z40 subclass
- Wash and phosphate undercoat or galvanized steel finish
44120G Standards
CSA C22.2 File No. 26|CSA Certified|IEC 60529|UL File No. 870|UL ListedSKU #2434270Part Number #44120GUNSPSC39131710UPC00078205110150

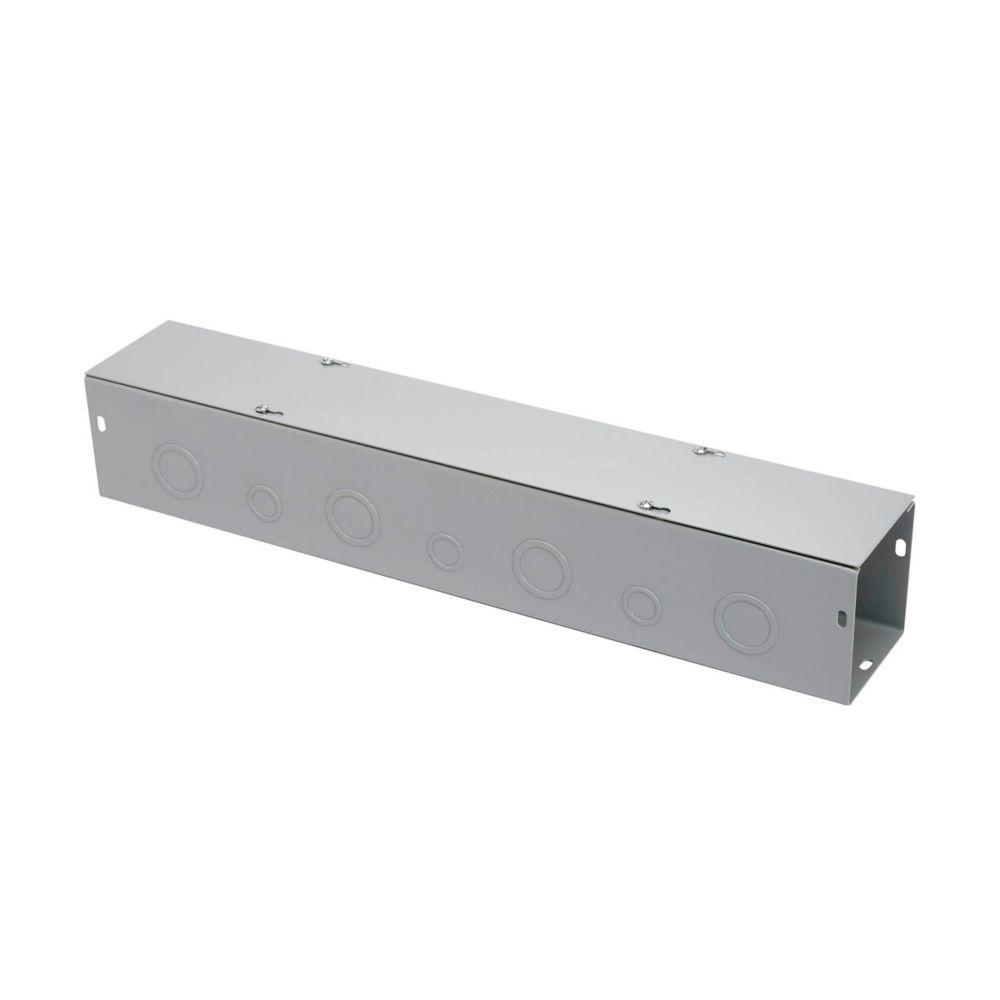

Image provided may only be a representation of final product and may include optional equipment
