Part Number # 4424GGVNK
SKU # 2316325
Image provided may only be a representation of
final product and may include optional equipment
4424GGVNK

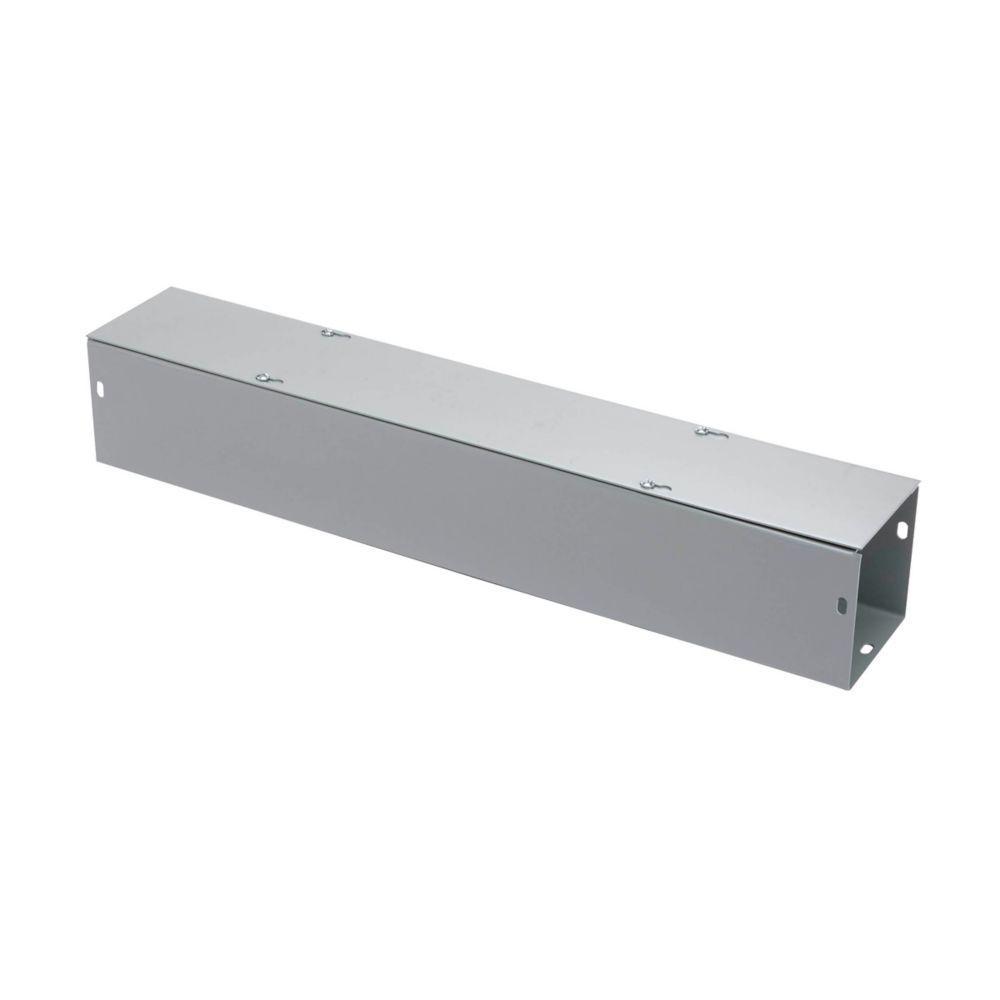

B-Line 4424GGVNK Lay-In Wireway
Part Number # 4424GGVNK
SKU # 2316325
$35.43 / Each
Typical price:$111.15 / Each
B-Line 4424GGVNK Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 4424GGVNK |
| SKU #: | 2316325 |
| Finish: | Acrylic Electro Coated/Pre-Galvanized, Acrylic Electrocoated/Pre-Galvanized |
| NEMA Rating: | NEMA 1, NEMA 1/IP30 |
| Type: | Straight Section |
| Country of origin: | US |
| Height: | 4, 4 in |
| Length: | 24, 24 in |
| Material: | 16 ga Steel, Steel |
| Width: | 4, 4 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131710 |
| UPC: | 00782051006933 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.43 / Each
Typical price:$111.15 / Each
Quantity:
B-Line 4424GGVNK Lay-In Wireway
Brand: B-Line
Part Number: 4424GGVNK
B-Line Lay-In Wireway, Straight Section, 24 in Length, 4 in Width, 4 in Height, Screw Cover, NEMA 1, 16 ga Steel, Gray, Acrylic Electrocoated/Pre-Galvanized
Additional Description: BLIN-4424GGVNK 4424 GGV NK KO
Catalog Description: Eaton B-Line series wiring trough, 4" height, 24" length, 4" width, GGV NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Galvanized steel, Plated screws, Gray, 16 gauge
4424GGVNK Application
Used for control and power cable, cable and wire junction, distribution and termination applications4424GGVNK Item Features
- Wireway body and cover are fabricated from code gauge steel or galvanized steel
- Wireway body has mounting holes on the back
- Cover is secured to the body with plated screws
- Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws
- Wireway exceeding 72 in L has 2 overlapping covers
- Variety of fittings allow runs which can change direction, junction and terminate
- Standard wireway connectors (sold separately) have a gate feature which can swing completely open allowing for lay-in of wire and cable
- Interchangeable with type 1 hinge cover wireway and fittings when HSCA connector is used
- Without knockout
4424GGVNK Standards
CSA C22.2 #26|IEC 60529|UL 870SKU #2316325Part Number #4424GGVNKUNSPSC39131710UPC00782051006933
