Part Number # 483617-1
SKU # 2195297
Image Disclaimers Message
483617-1

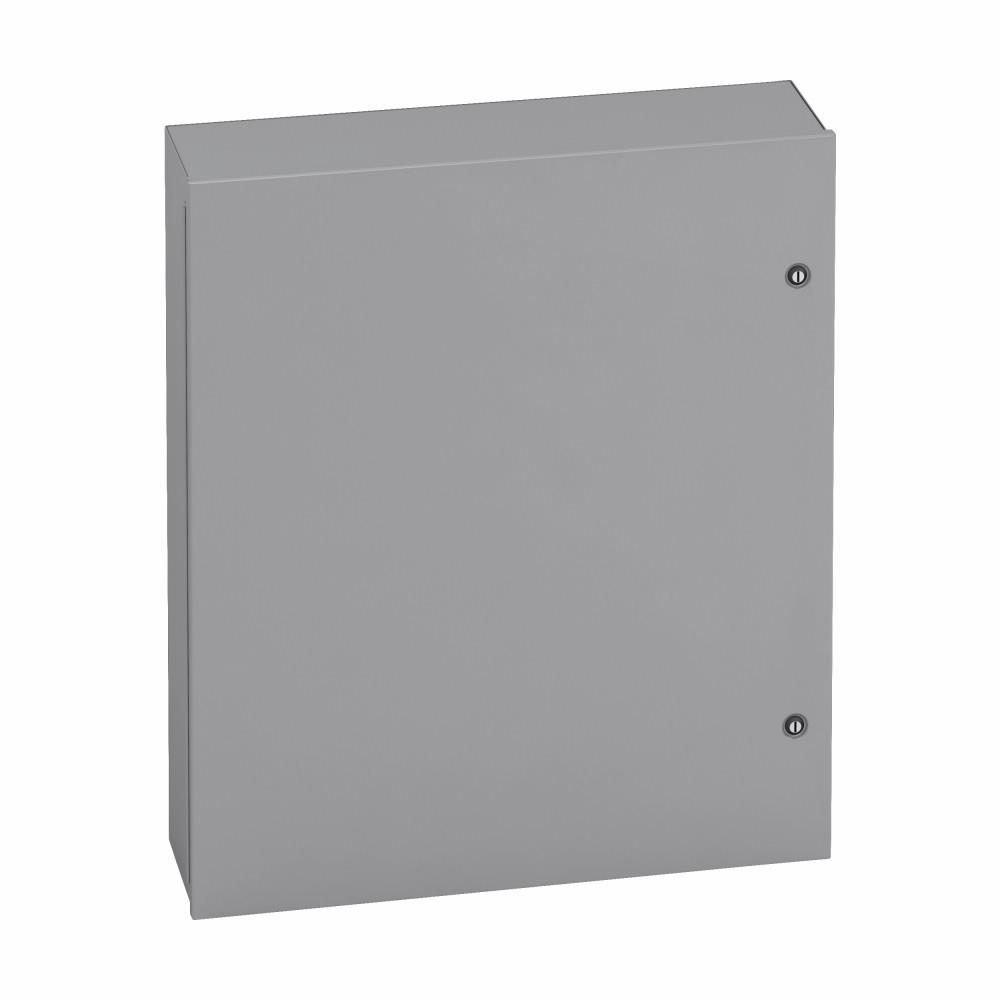

B-Line 483617-1 Panel Enclosure
Part Number # 483617-1
SKU # 2195297
B-Line 483617-1 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 483617-1 |
| SKU #: | 2195297 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 1/IP30 |
| Panel Size: | 32.87 in W x 44.87 in H, 44.87 in H x 32.87 in W |
| Type: | D80 Subclass Large |
| Country of origin: | US |
| Depth: | 17-1/4, 17-1/4 in |
| Height: | 48 in |
| Length: | 48 |
| Material: | 14 ga Steel, Steel |
| Mounting type: | Wall |
| Width: | 36, 36 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051088885 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 483617-1 Panel Enclosure
Brand: B-Line
Part Number: 483617-1
B-Line Panel Enclosure, D80 Subclass Large, 36 in Width, 17-1/4 in Depth, 48 in Height, NEMA 1/IP30, Continuous Hinged Cover, 32.87 in W x 44.87 in H Panel, Lock: Flush Coin Latch, Wall Mount, 14 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-483617-1 (N) 483617-1 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series Type 1 panel enclosures, 48" height, 17" length, 36" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Medium single door, Keyhole slots, Carbon steel
483617-1 Application
Commercial/Institutional Buildings/Structures - Aftermarket, Lighting and Lighting Controls, Safety and Security Systems, Building Automation and Monitoring, Critical Power, Residential Buildings and Facilities, Industrial Facilities and Factories, Other IT and Datacom - Other Infrastructures, Utility, Generation - Renewable Energy, Alternative Energy, Conventional Energy, Water and Wastewater Systems, Datacenters - IT Space, Enterprise/Server Room/Network Closet483617-1 Item Features
- Enclosure and door are fabricated from 14 gauge steel
- Door is secured to the body with a heavy duty continuous hinge on one side and slotted flush latches on the opposite side
- Body has stiffener for extra rigidity
- Slotted flush latch is designed to operate with either a coin or a screwdriver
- No knockouts
- Ground stud provided on door
- Continuous piano hinge
483617-1 Standards
CSA C22.2 File No. 40|IEC 60529|UL 50SKU #2195297Part Number #483617-1UNSPSC39121324UPC00782051088885
