Part Number # 626012-4FD
SKU # 2270289
626012-4FD

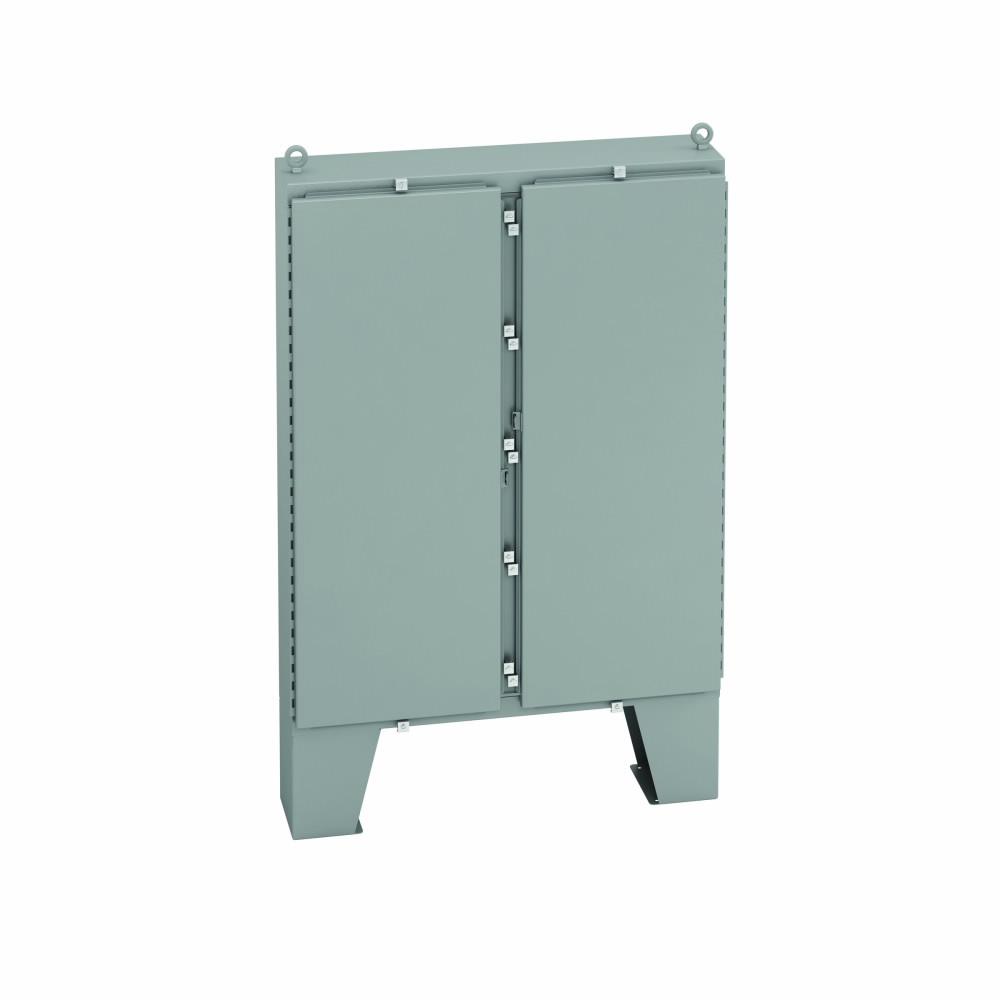

B-Line 626012-4FD Ground Mount Enclosure
Part Number # 626012-4FD
SKU # 2270289
B-Line 626012-4FD Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 626012-4FD |
| SKU #: | 2270289 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 4/IP66 |
| Panel Size: | 55.87 in H x 55.87 in W, 55.87 in W x 55.87 in H |
| Type: | 2-Door, 2-Door Less Panel |
| Country of origin: | US |
| Depth: | 12, 12 in |
| Height: | 62, 62 in |
| Material: | Carbon Steel, Steel |
| Mounting type: | Floor/Leg |
| Width: | 60, 60 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051806458 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 626012-4FD Ground Mount Enclosure
Brand: B-Line
Part Number: 626012-4FD
B-Line Ground Mount Enclosure, 2-Door, 60 in Width, 12 in D, 62 in Height, NEMA 4/IP66, Hinged Cover, 55.87 in W x 55.87 in H Panel, Lock: Padlock Hasp, Floor/Leg Mount, Carbon steel, Polyester Powder Coated, Gray
Additional Description: BLIN-626012-4FD (N) 626012-4FD LESS PNL, 62X60X12 ENCLOSURE, LESS PANEL, 62X60X12 NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series ground mounted panel enclosure, 62" height, 12" length, 60" width, NEMA 4, Hinged cover, 4FD enclosure, Ground mount, Large double door, Ground mount legs, Carbon steel, Seamless poured in-place gasket
626012-4FD Application
Electrical Assemblies, Panels and EOEMs, Mobile Machinery and Equipment, Stationary Mobile Machinery and Equipment In Factory - Robotics, Utility - Substations, Utility Transmission and Distribution, Rail and Rail Systems, Water and Wastewater Systems, Stationary Machinery Equipment In Factory - Robotics, Industrial, Houses Electrical Controls and Instruments, Indoor and Outdoor Applications626012-4FD Item Features
- Enclosure and door are fabricated from 12 ga steel
- All continuous welded seams are finished smooth
- Doors are secured to the body with removable concealed hinges and easy to remove stainless steel door clamps on three sides
- Modern bevel profile on hinge side of enclosure door
- Print pocket is provided
- Each door has a padlock hasp with sealing hole provision
- Door have a seamless poured in place gasket
- Ground stud provided on door and body
- Removable center post for complete front access
- Large lifting eyebolts are supplied
- Mounting legs are provided for floor mounting
- Wash and phosphate undercoat
- ANSI 61 gray polyester powder finish
- Stainless door clamps
626012-4FD Standards
ANSI 61|CSA C22.2 No. 94|IEC 60529|UL 508ASKU #2270289Part Number #626012-4FDUNSPSC39121324UPC00782051806458
Image provided may only be a representation of final product and may include optional equipment
