Part Number # 643-4LC
SKU # 2368975
Image Disclaimers Message
643-4LC

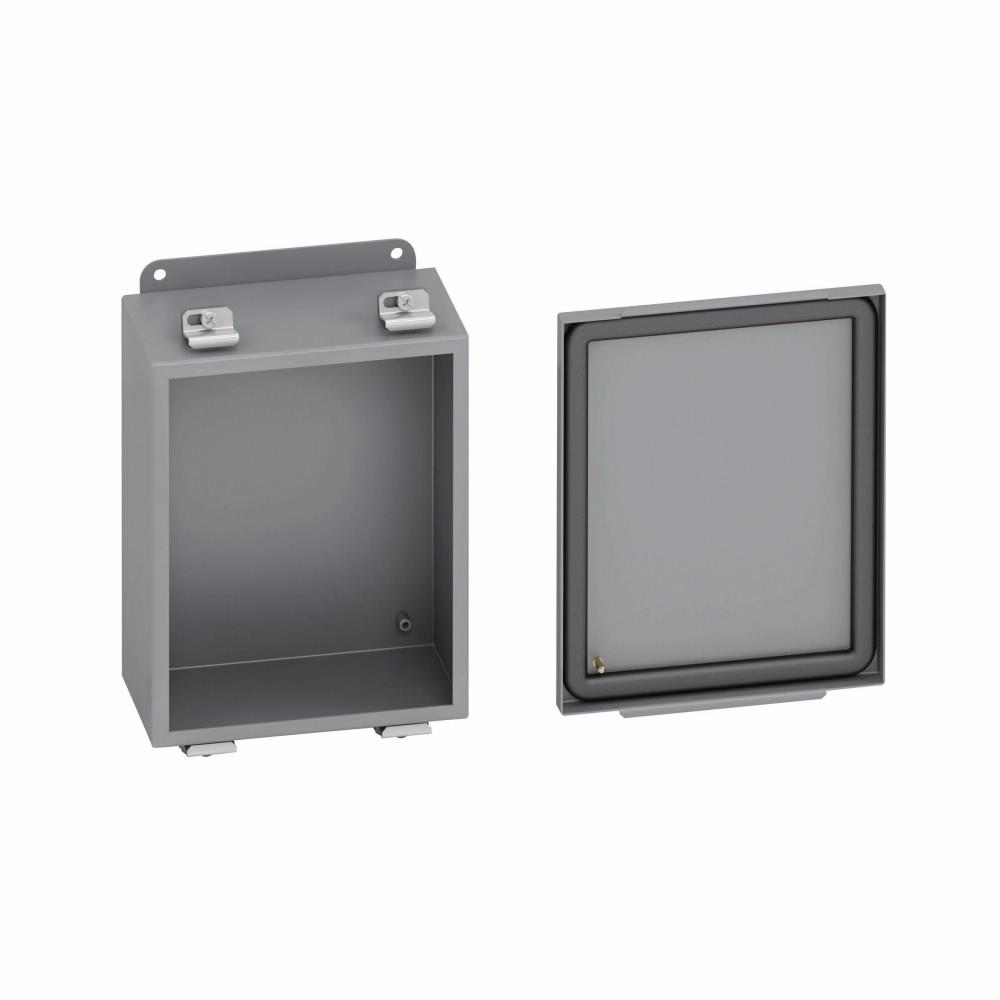

B-Line 643-4LC JIC Enclosure
Part Number # 643-4LC
SKU # 2368975
B-Line 643-4LC Key Features
Brand: | B-Line |
---|---|
Part Number # : | 643-4LC |
SKU #: | 2368975 |
Finish: | Polyester Powder Coated, Polyester Powder Coated/Phosphate Undercoat |
NEMA Rating: | NEMA 4 |
Panel Size: | 2.87 in W x 4.87 in H, 4.87 in H x 2.87 in W |
Color: | Gray |
Country of origin: | US |
Depth: | 3, 3 in |
Height: | 6 in |
Length: | 6 |
Material: | 16 ga Steel, Steel |
Mounting type: | External Feet/Wall, Wall |
Width: | 4, 4 in |
Manufacturer Name: | Eaton |
UNSPSC: | 39121324 |
UPC: | 00782051760101 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 643-4LC JIC Enclosure
Brand: B-Line
Part Number: 643-4LC
B-Line JIC Panel Enclosure, 4 in Width, 3 in Depth, 6 in Height, NEMA 4 NEMA Rating, Lift-Off Cover, 2.87 in W x 4.87 in H Panel, Lock: Screw Clamp, Wall Mounting, 16 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-643-4LC (N) 643-4LC ENCLOSURE, 6X4X3 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series JIC panel enclosure, 6" height, 3" length, 4" width, NEMA 4, Screw cover, 4LC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
643-4LC Application
Commercial/Institutional Buildings/Structures - Lighting and Lighting Controls, Critical Power, Power Distribution and Controls, Industrial Facilities and Factories - Lighting and Lighting Controls, Power Distribution and Control, Safety and Security Systems, Manufacturing Process Electrification and Control, Critical Power, Automation and Monitoring, Utility - Substations, Utility Transmission and Distribution643-4LC Item Features
- Enclosure and cover are fabricated from 16 ga steel
- All continuous welded seams are finished smooth
- Cover is secured to the body with easy to operate stainless steel screw clamps mounted on all four sides
- Cover has a seamless poured in place gasket
- Ground stud provided on cover
- External mounting feet are provided for secure wall mounting
- Stainless door clamps
643-4LC Standards
CSA C22.2 File No. 94|IEC 60529|UL 508ASKU #2368975Part Number #643-4LCUNSPSC39121324UPC00782051760101
