B-Line 6624-12LW Wireway
Part Number # 6624-12LW
SKU # 2411071
6624-12LW
B-Line 6624-12LW Wireway
Part Number # 6624-12LW
SKU # 2411071
B-Line 6624-12LW Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 6624-12LW |
| SKU #: | 2411071 |
| UNSPSC: | 39131710 |
| UPC: | 00782051004410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 6624-12LW Wireway
Brand: B-Line
Part Number: 6624-12LW
B-Line Wireway, Straight Section, Series: LW, 24 in Length, 6 in Width, 6 in Height, Hinged/Latched Cover, NEMA 12/IP54 NEMA Rating, Steel, Gray, Phosphate Undercoated/Polyester Powder Coated/Painted
Additional Description: BLIN-6624-12LW (N) 6624-12LW NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series wireway, 6" height, 24" length, 6" width, 12LW wireway, Wireway hanger, Hinged cover, NEMA 12, Steel, Oil-resistant gasket, Hinged, ANSI 61 gray, 14 gauge
6624-12LW Application
Commercial, Institutional Buildings, Structures, Power Distribution and Controls Applications6624-12LW Includes
Sealing Plate Kit6624-12LW Item Features
- Wireway body and cover are fabricated from 14 ga steel
- Flanges are 10 ga steel
- All continuous welded seams are finished smooth
- External and internal edges are rounded to prevent injury or damage to cable
- Covers have a fixed, oil-resistant gasket
- An oil-resistant gasket is provided for installation between flanges
- All covers and sealing plate can be hinged completely open or removed to allow for continuous lay-in cable feed
- Covers are secured to the wireway and fitting body with heavy duty butt hinges and quick release latches
- Houses runs of control and power cable
- ANSI 61 polyester powder, wash and phosphate undercoat
6624-12LW Standards
CSA C22.2|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to - www.P65Warnings.ca.gov|UL ListedSKU #2411071Part Number #6624-12LWUNSPSC39131710UPC00782051004410

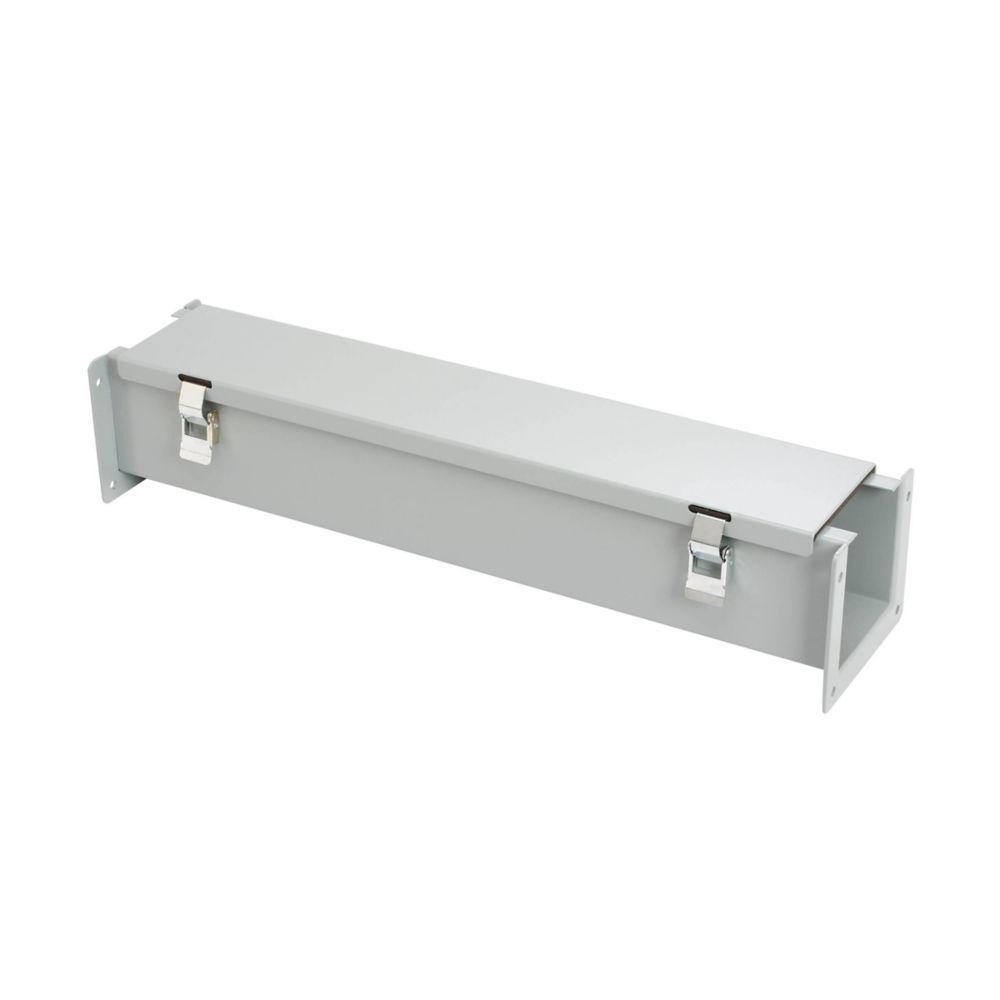

Image provided may only be a representation of final product and may include optional equipment
