Part Number # 6636-4XSFW
SKU # 2200540
Image Disclaimers Message
6636-4XSFW
B-Line 6636-4XSFW Feed-Through Wireway
Part Number # 6636-4XSFW
SKU # 2200540
$1166.78 / Each
Typical price:$2683.61 / Each
B-Line 6636-4XSFW Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 6636-4XSFW |
| SKU #: | 2200540 |
| Finish: | Smooth Brushed |
| NEMA Rating: | NEMA 4X, NEMA 4X/IP55 |
| Type: | Straight Section |
| Country of origin: | US |
| Height: | 6, 6 in |
| Length: | 36, 36 in |
| Material: | 14 ga 304 Stainless Steel, 304 Stainless Steel |
| Width: | 6, 6 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131710 |
| UPC: | 00782051134506 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1166.78 / Each
Typical price:$2683.61 / Each
Quantity:

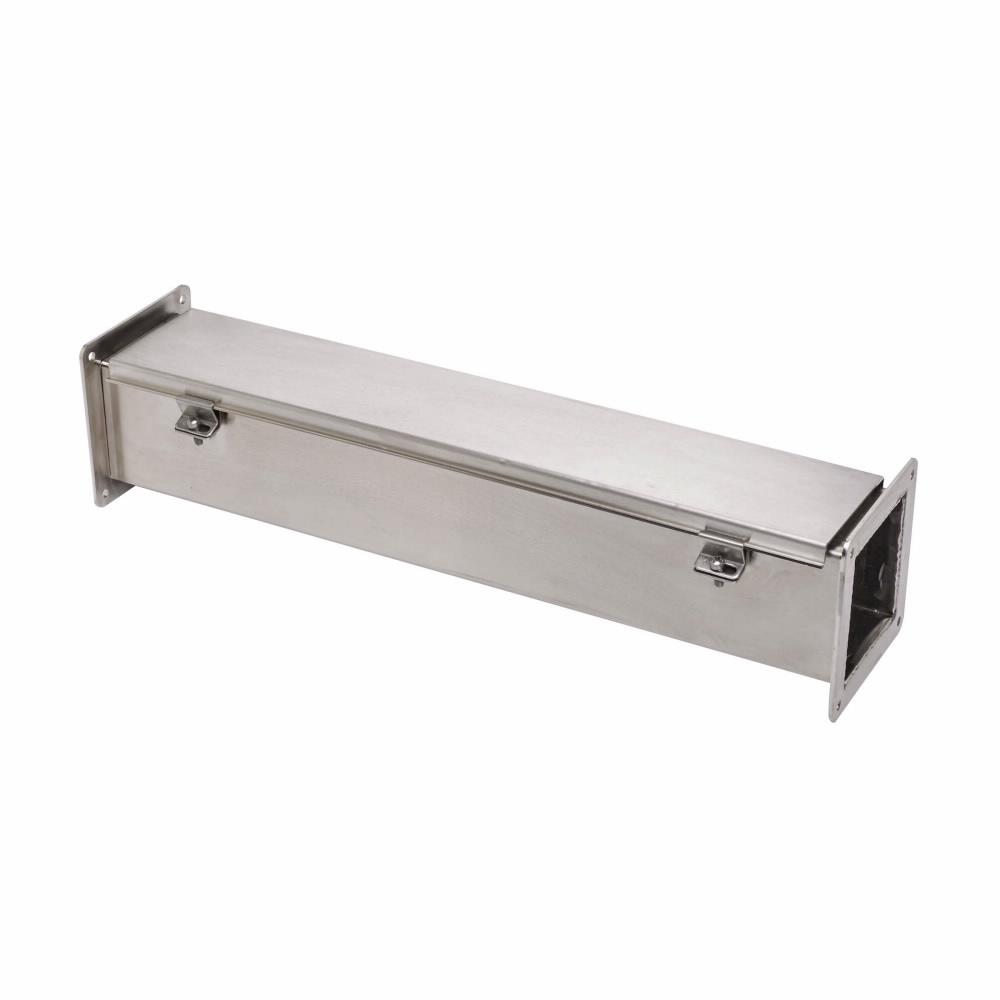

B-Line 6636-4XSFW Feed-Through Wireway
Brand: B-Line
Part Number: 6636-4XSFW
B-Line Feed-Through Wireway, Straight Section, 36 in Length, 6 in Width, 6 in Height, Hinged Screw Cover, NEMA 4X, 14 ga 304 Stainless Steel
Additional Description: BLIN-6636-4XSFW (N) 6636-4XSFW SECTION NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series wireway, 6" height, 36" length, 6" width, 4XSFW wireway, Wireway hanger, Hinged cover, NEMA 4X, 304 stainless steel, Seamless poured in-place, Hinged, #4 brushed finish, 16 gauge
6636-4XSFW Application
Used for control and power cables, indoor and outdoor applications, protects against corrosion, windblown dust and rain, splashing water and hose-directed water6636-4XSFW Includes
(1) Gasket Kit6636-4XSFW Item Features
- Wireway body and cover are fabricated from type 304 stainless steel
- Flanges are 10 ga stainless steel
- All continuous welded seams are finished smooth
- External and internal edges are rounded to prevent injury or damage to cable
- Covers are secured to the wireway body with heavy duty hinges on one side and easy-to-operate screw clamps mounted to the opposite side
- Continuous flanged ends assure rigid connections of wireway and fittings
- Cover has a seamless poured in-place gasket
- An oil-resistant gasket is provided for installation between flanges
6636-4XSFW Standards
CSA C22.2 #26|IEC 60529|UL 870SKU #2200540Part Number #6636-4XSFWUNSPSC39131710UPC00782051134506
