B-Line 6636GNK Lay-In Wireway
Part Number # 6636GNK
SKU # 2241241
6636GNK
B-Line 6636GNK Lay-In Wireway
Part Number # 6636GNK
SKU # 2241241
B-Line 6636GNK Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 6636GNK |
| SKU #: | 2241241 |
| Series: | G NK |
| Type: | Straight Section Through Hole |
| UNSPSC: | 39131710 |
| UPC: | 00782051102710 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 6636GNK Lay-In Wireway
Brand: B-Line
Part Number: 6636GNK
B-Line Wiring Trough, Straight Section Through Hole, Series: G NK, 36 in Length, 6 in Width, 6 in Height, Screw Cover, NEMA 1/IP30 NEMA Rating, Steel, Gray, Acrylic Electro Coated/Painted
Additional Description: BLIN-6636GNK (N) 6636 G NK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series wiring trough, 6" height, 36" length, 6" width, G NK wireway, Thru holes, No knockouts, Screw cover, NEMA 1, Steel, Plated screws, ANSI 61 gray, 16 gauge
6636GNK Application
Commercial, Institutional Buildings, Structures, Safety and Security Systems Applications6636GNK Item Features
- Wireway body and cover are fabricated from code gauge steel or galvanized steel
- Wireway body has mounting holes on the back
- Cover is secured to the body with plated screws
- Keyhole slots are furnished on the wireway cover which allow easy access to the inside without removing the screws
- Wireway exceeding 72 in L has two overlapping covers
- Variety of fitting allow runs which can change direction, junction and terminate
- Standard wireway connector have a gate feature which can swing completely open allowing for lay-in of wire and cable
- Interchangeable with type 1 hinge cover wireway and fitting when HSCA connector is used
- A2 discount schedule
- AK1 and Z40 subclass
- Wash and phosphate undercoat or galvanized steel finish
- Without knockout
6636GNK Standards
CSA C22.2 File No. 26|CSA Certified|IEC 60529|UL File No. 870|UL ListedSKU #2241241Part Number #6636GNKUNSPSC39131710UPC00782051102710

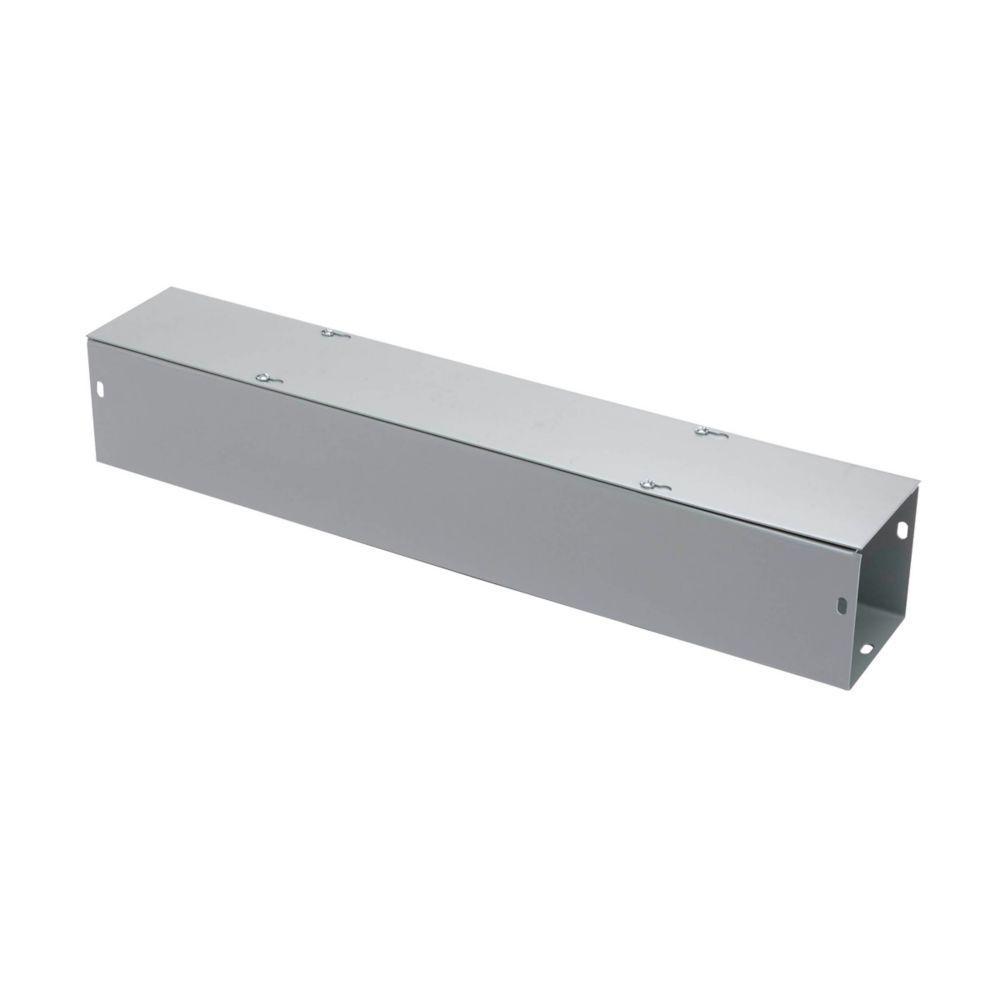

Image provided may only be a representation of final product and may include optional equipment
