Part Number # 6636HSNK
SKU # 2383577
6636HSNK

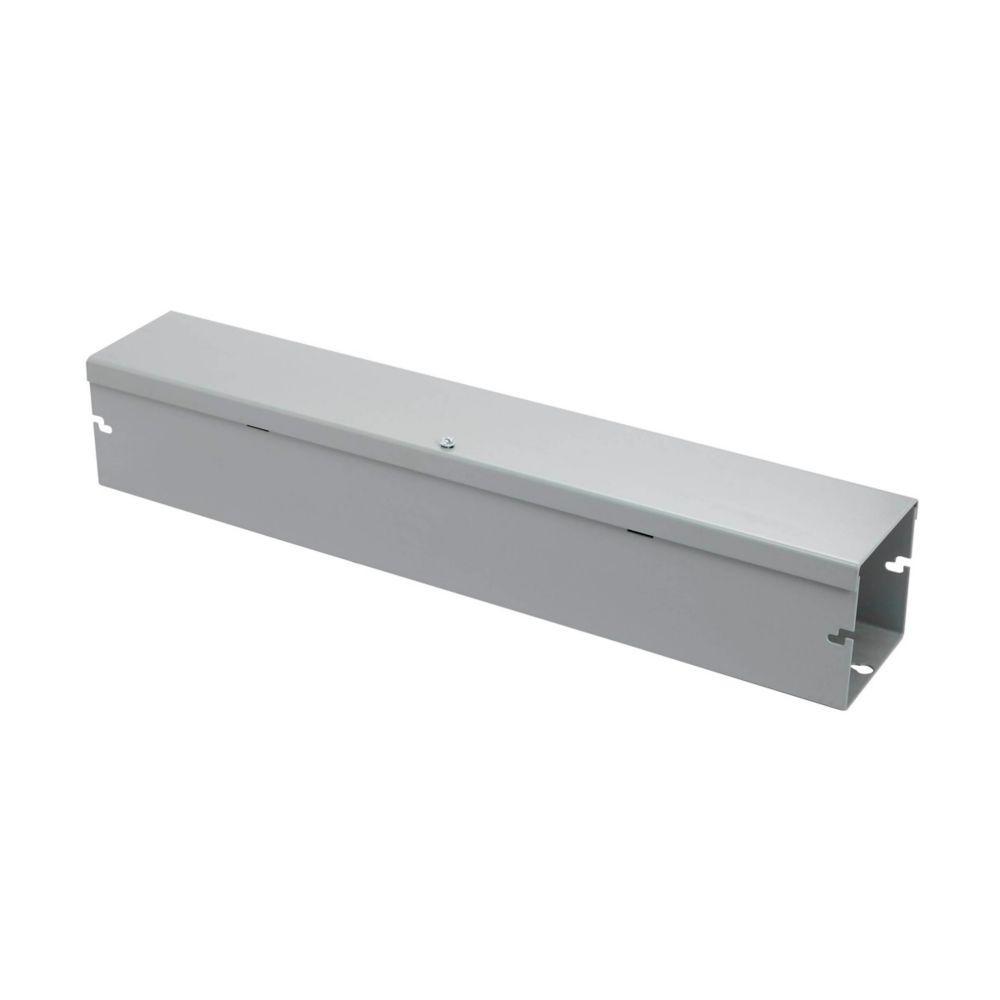

B-Line 6636HSNK Wiring Trough
Part Number # 6636HSNK
SKU # 2383577
B-Line 6636HSNK Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 6636HSNK |
| SKU #: | 2383577 |
| Finish: | Acrylic Electro Coated/Phosphate Undercoated |
| NEMA Rating: | NEMA 1/IP30 |
| Series: | HSNK |
| Type: | NEMA 1 Quick-Connect Through Hole |
| Country of origin: | US |
| Height: | 6 in |
| Length: | 36 in |
| Material: | Steel |
| Width: | 6 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131710 |
| UPC: | 00078205147909 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 6636HSNK Wiring Trough
Brand: B-Line
Part Number: 6636HSNK
B-Line Wiring Trough, NEMA 1 Quick-Connect Through Hole, Series: HSNK, 36 in Length, 6 in Width, 6 in Height, Hinged Cover, NEMA 1/IP30 NEMA Rating, Steel, Gray, Acrylic Electro Coated/Phosphate Undercoated
Additional Description: BLIN-6636HSNK 6636 HSNK KNOCKOUTS, 6X6X36
Catalog Description: Eaton B-Line series wiring trough, 6" height, 36" length, 6" width, HSNK wireway, Thru holes, No knockouts, Hinged cover, NEMA 1, Steel, Hinged, ANSI 61 gray, 16 gauge
6636HSNK Application
Commercial, Institutional Buildings, Structures, Power Distribution and Controls Applications6636HSNK Item Features
- Wireway body and cover are fabricated from code gauge steel
- Wireway body has mounting holes on the back
- Variety of fitting allow runs which can change direction, junction and terminate
- Wireway connector have a gate feature which can swing completely open allowing for lay-in of wire and cable
- Except for wireway end, completely interchangeable with type 1 screw cover wireway and fitting through use of the adapter style connector HSCA
- Reversible and removable hinge cover
- Pre-installed hardware on quick connector
- Without knockout
6636HSNK Standards
CSA C22.2.,UL ListedSKU #2383577Part Number #6636HSNKUNSPSC39131710UPC00078205147909
Image provided may only be a representation of final product and may include optional equipment
