664-12CHSC

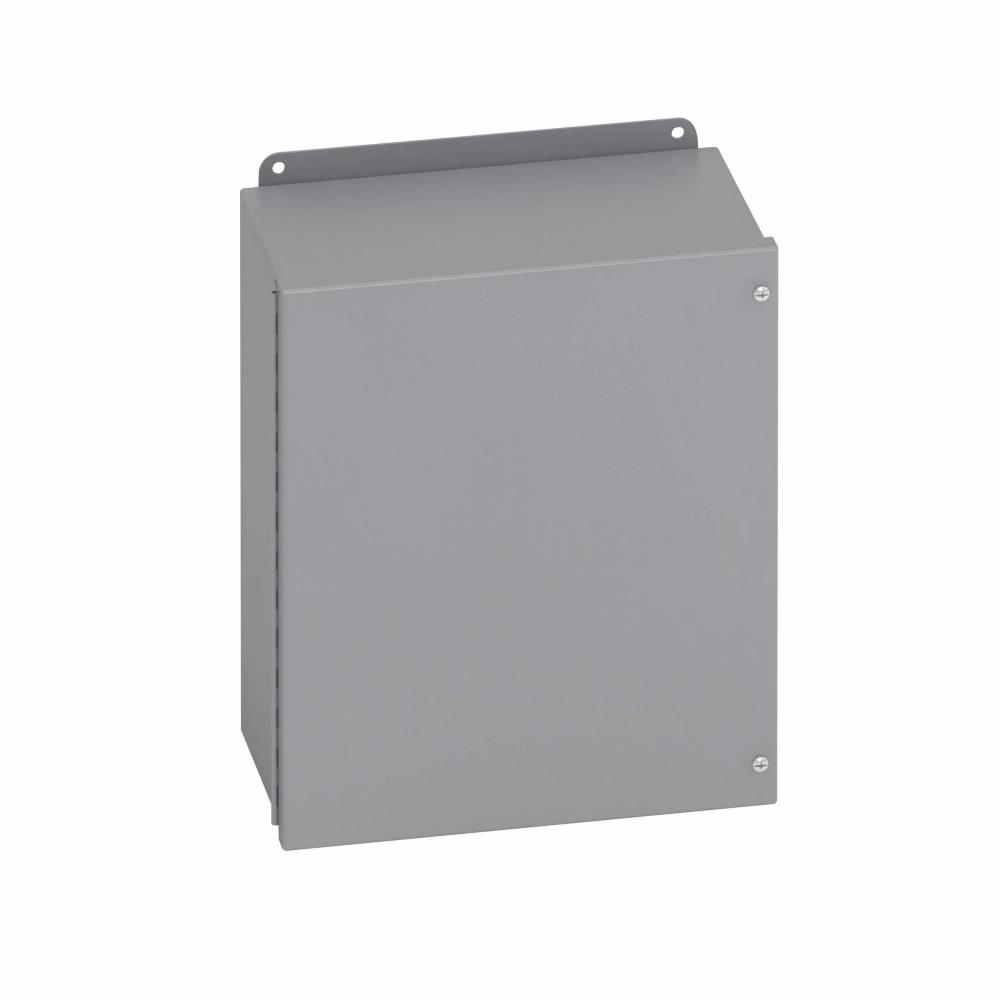

B-Line 664-12CHSC JIC Enclosure
Part Number # 664-12CHSC
SKU # 2208301
B-Line 664-12CHSC Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 664-12CHSC |
| SKU #: | 2208301 |
| Finish: | Polyester Powder Coated, Polyester Powder Coated/Phosphate Undercoat |
| NEMA Rating: | NEMA 12, NEMA 12/IP65 |
| Panel Size: | 4.87 in H x 4.87 in W, 4.87 in W x 4.87 in H |
| Color: | ANSI 61 Gray, Gray |
| Country of origin: | US |
| Depth: | 4, 4 in |
| Height: | 6 in |
| Length: | 6 |
| Material: | 16 ga Steel, Steel |
| Mounting type: | External Feet/Wall, Wall |
| Width: | 6, 6 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051702880 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 664-12CHSC JIC Enclosure
Brand: B-Line
Part Number: 664-12CHSC
B-Line JIC Panel Enclosure, 6 in Width, 4 in Depth, 6 in Height, NEMA 12, Continuous Piano Hinged Cover, 4.87 in W x 4.87 in H Panel, Lock: Screw, Wall Mount, 16 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-664-12CHSC (N) 664-12CHSC Encl 6x6x4 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series JIC panel enclosure, 6" height, 4" length, 6" width, NEMA 4X, Hinged cover, 12CHSC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Oil-resistant gasket
664-12CHSC Application
Industrial Facilities and Factories - Manufacturing Process Electrification and Control, Power Distribution and Control, Critical Power, Power Distribution and Controls, Lighting and Lighting Controls, Safety and Security Systems, Commercial/Institutional Buildings/Structures - Critical Power, Lighting and Lighting Controls, Automation and Monitoring, Utility - Substations, Utility Transmission and Distribution664-12CHSC Item Features
- Enclosure and cover are fabricated from 16 ga steel
- All continuous welded seams are finished smooth
- Cover is secured to the body with a continuous hinge on one side and captive screws which thread into sealed well nuts on the opposite side
- Cover has a fixed, oil-resistant gasket
- Ground stud provided on cover
- External mounting feet are provided for secure wall mounting
664-12CHSC Standards
CSA C22.2 File No. 94|IEC 60529|UL 508ASKU #2208301Part Number #664-12CHSCUNSPSC39121324UPC00782051702880
