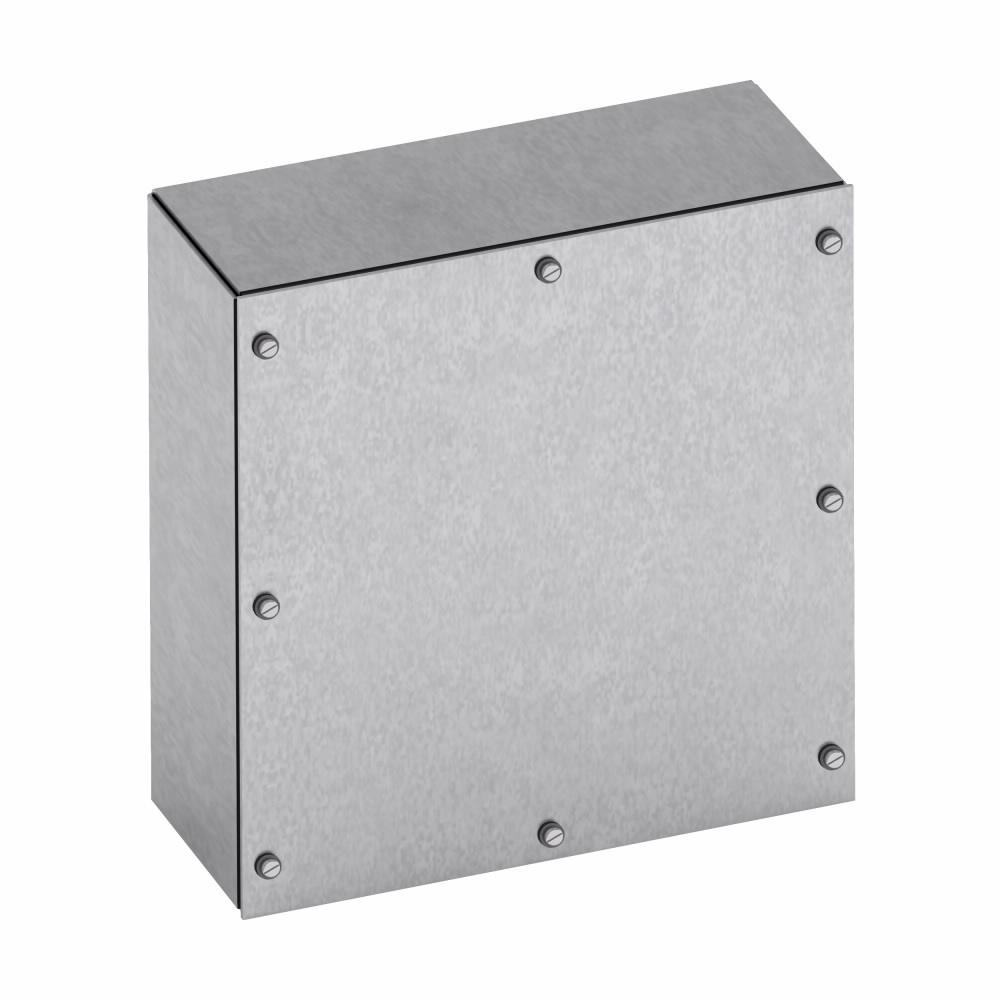

B-Line 664SCG Junction Box
Part Number # 664SCG
SKU # 2327643
$100.91 / Each
Typical price:$278.50 / Each
B-Line 664SCG Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 664SCG |
| SKU #: | 2327643 |
| Finish: | Bright Galvanized, Bright/Galvanized |
| NEMA Rating: | NEMA 3, NEMA 3/12/IP66 |
| Country of origin: | US |
| Depth: | 4, 4 in |
| Height: | 6, 6 in |
| Material: | 14 ga Steel, Steel |
| Mounting type: | Surface |
| Width: | 6, 6 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051108569 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$100.91 / Each
Typical price:$278.50 / Each
Quantity:
B-Line 664SCG Junction Box
Brand: B-Line
Part Number: 664SCG
B-Line Junction Box, 6 in Height, 6 in Width, 4 in Depth, NEMA 3, Lock: Gasketed Screw, Surface Mount, 14 ga Steel, Bright Galvanized
Additional Description: BLIN-664SCG 664 SCG
Catalog Description: Eaton B-Line series Type 3/3R junction boxes, 6" height, 4" length, 6" width, NEMA 3 and 12, Screw cover, SCG enclosure, Surface mounted, Small single door, No mounting provisions, Galvanized steel, Oil-resistant gasket, gasketed screws
664SCG Application
Commercial/Institutional Buildings/Structures - Critical Power, Automation and Monitoring, Lighting and Lighting Controls, Aftermarket, Safety and Security Systems, Residential Buildings, Aviation664SCG Item Features
- Enclosure and cover are fabricated from galvanized steel
- All continuous welded seams are finished smooth
- Enclosure standard without knockouts
- Cover is attached with gasketed screws
- Cover has a fixed, oil and water resistant gasket
- #10-32 weldnut is furnished for optional ground lug kit
- Ground screw provided
- Zinc-rich coating over all external welds
664SCG Standards
IEC 60529|UL 508A|CSA C22.2SKU #2327643Part Number #664SCGUNSPSC39121324UPC00782051108569
