723018-4XSFS3PT
B-Line 723018-4XSFS3PT
Part Number # 723018-4XSFS3PT
SKU # 2464926
B-Line 723018-4XSFS3PT Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 723018-4XSFS3PT |
| SKU #: | 2464926 |
| UNSPSC: | 39121305 |
| UPC: | 00078205189210 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 723018-4XSFS3PT
Brand: B-Line
Part Number: 723018-4XSFS3PT

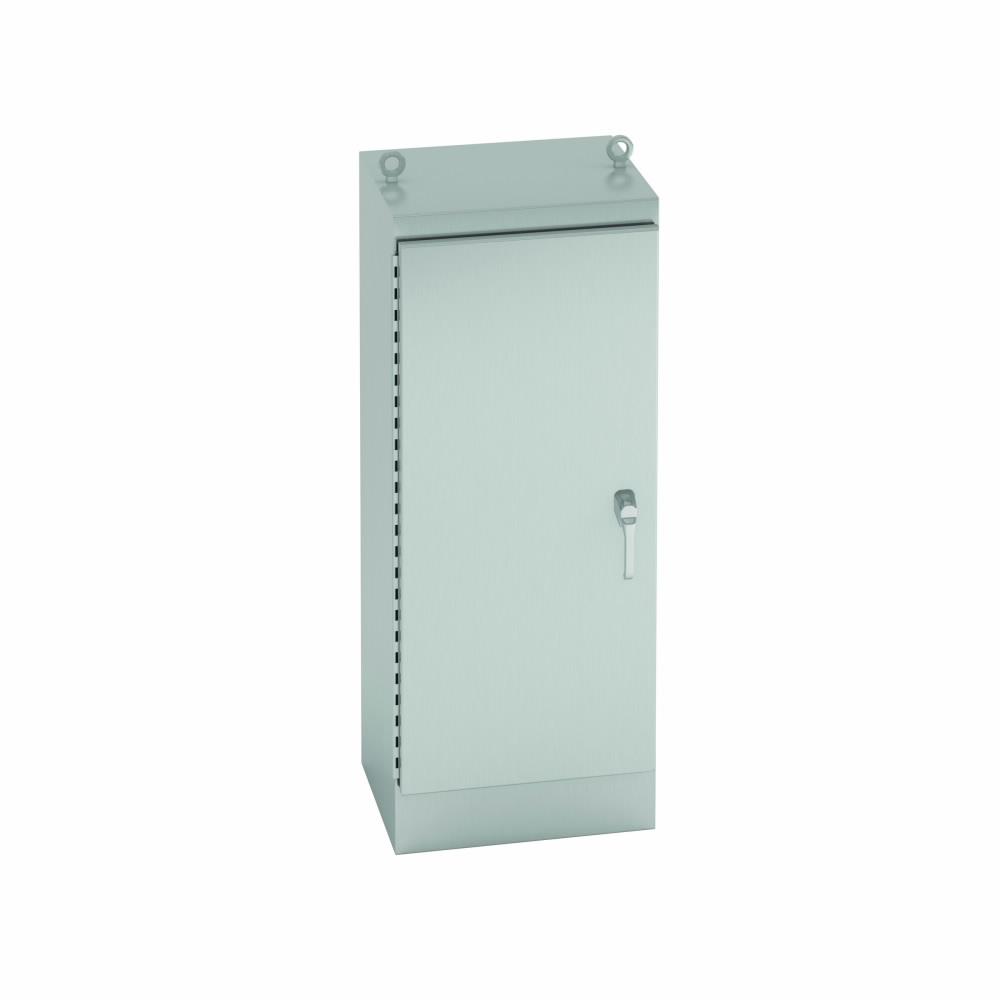

B-Line Ground Mount Enclosure, 1-Door, 30 in Width, 18 in Depth, 72 in Height, NEMA 4X, Hinged Cover, Lock: 3-Point, Freestanding Mount, 304 Stainless Steel, Brushed
Additional Description: BLIN-723018-4XSFS3PT (N) 723018-4XSFS3PT NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series ground mounted panel enclosure, 72" height, 18" length, 30" width, NEMA 4X, Hinged cover, 4XSFS3PT enclosure, Ground mount, Large single door, No mounting provisions, 304 stainless steel, Seamless poured in-place gasket
723018-4XSFS3PT Application
Industrial, Houses Electrical Controls and Instruments, Indoor and Outdoor Applications723018-4XSFS3PT Item Features
- Enclosure and door are fabricated from 12 ga type 304 stainless steel
- All continuous welded seams are finished smooth
- Door is secured to the body with removable concealed stainless hinges and a center locating three-point key locking and padlock handle mechanism
- Modern bevel profile on hinge side of enclosure door
- Additional quarter-turn latches provided top and bottom on all enclosure doors
- Door have a seamless poured in place gasket
- Formed lip around enclosure openings to diverts liquids and contaminants
- Ground stud provided on door and body
- Print pocket provided
- Mounting channels are welded inside for locating panels or rack mount equipment along enclosure depth
- Provision for mounting fluorescent light
- Large lifting eyebolts are supplied
- Hole seals are provided to seal enclosure after removal of lifting eyebolts
- Protects against corrosion, windblown dust and rain, splashing water and hose directed water
723018-4XSFS3PT Standards
CSA C22.2 No. 94|E.I.A. RS-310-D|UL 508ASKU #2464926Part Number #723018-4XSFS3PTUNSPSC39121305UPC00078205189210
Image provided may only be a representation of final product and may include optional equipment
