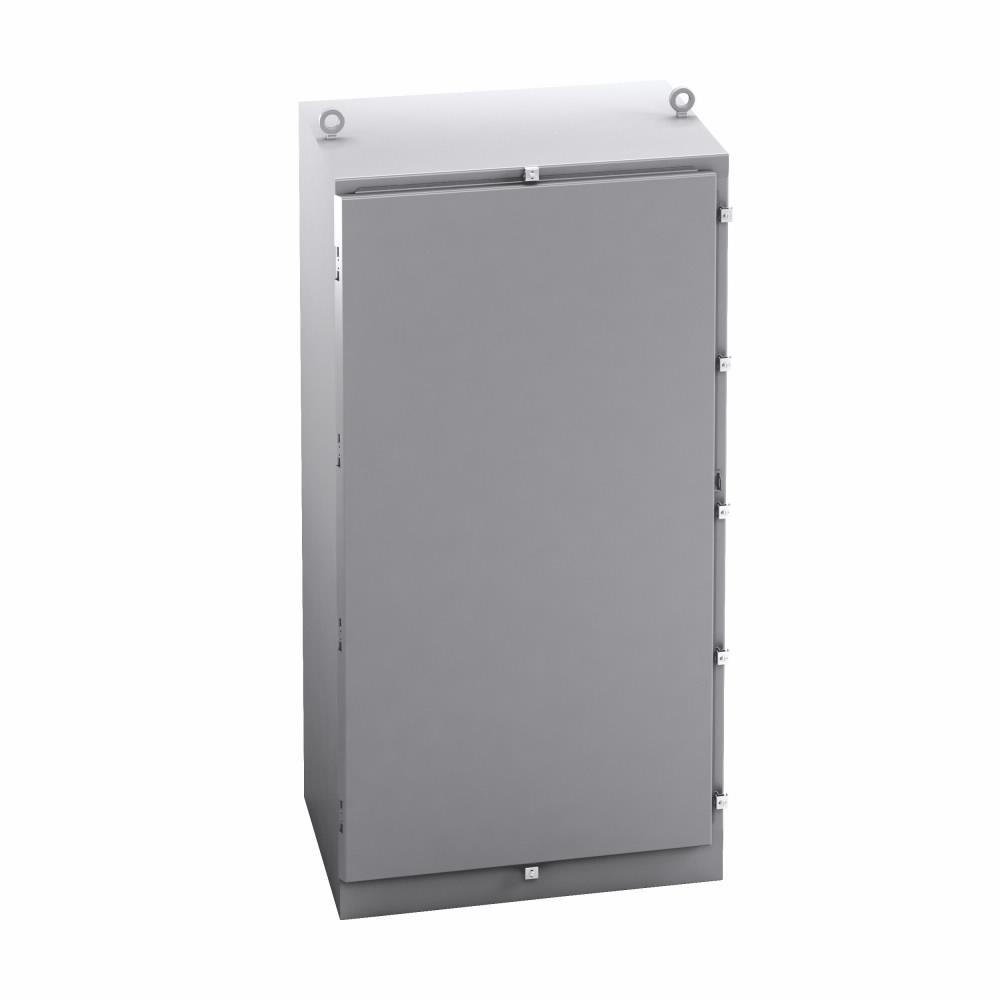

Image provided may only be a representation of
final product and may include optional equipment
723724-4FS
B-Line 723724-4FS Ground Mount Enclosure
Part Number # 723724-4FS
SKU # 2283633
B-Line 723724-4FS Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 723724-4FS |
| SKU #: | 2283633 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 4/IP66 |
| Type: | 1-Door, 1-Door Free-Standing |
| Country of origin: | US |
| Depth: | 24, 24 in |
| Height: | 72, 72 in |
| Material: | Carbon Steel, Steel |
| Mounting type: | Floor, Floor/Freestanding |
| Width: | 37, 37 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051236668 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 723724-4FS Ground Mount Enclosure
Brand: B-Line
Part Number: 723724-4FS
B-Line Ground Mount Enclosure, 1-Door, 37 in Width, 24 in D, 72 in Height, NEMA 4/IP66, Hinged Cover, Lock: Padlock Hasp, Floor/Freestanding Mount, Carbon steel, Polyester Powder Coated, Gray
Additional Description: BLIN-723724-4FS (N) 723724-4FS 72X37X24 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series ground mounted panel enclosure, 72" height, 24" length, 37" width, NEMA 4, Hinged cover, 4FS enclosure, Ground mount, Large single door, No mounting provisions, Carbon steel, Seamless poured in-place gasket
723724-4FS Application
Electrical Assemblies, Panels and EOEMs, Mobile Machinery and Equipment, Stationary Mobile Machinery and Equipment In Factory - Robotics, Utility - Substations, Utility Transmission and Distribution, Rail and Rail Systems, Water and Wastewater Systems, Stationary Machinery Equipment In Factory - Robotics, Industrial, Houses Electrical Controls and Instruments, Indoor and Outdoor Applications723724-4FS Item Features
- Enclosure and door are fabricated from 12 ga steel
- All continuous welded seams are finished smooth
- Door is secured to the body with removable concealed hinges and easy to remove stainless steel door clamps on three sides
- Modern bevel profile on hinge side of enclosure door
- Door has a seamless poured in place gasket
- Ground stud provided on door and body
- Each door has a padlock hasp with sealing hole provision
- Print pocket is provided
- Large lifting eyebolts are supplied
- Mounting channels are welded inside for locating panels or rack mount equipment along enclosure depth
- Protects against windblown dust and rain, splashing water and hose directed water
- Wash and phosphate undercoat
- Stainless door clamps
723724-4FS Standards
ANSI 61|CSA C22.2 No. 94|E.I.A. RS-310-D|IEC 60529|UL 508ASKU #2283633Part Number #723724-4FSUNSPSC39121324UPC00782051236668
