863.5-12CHC

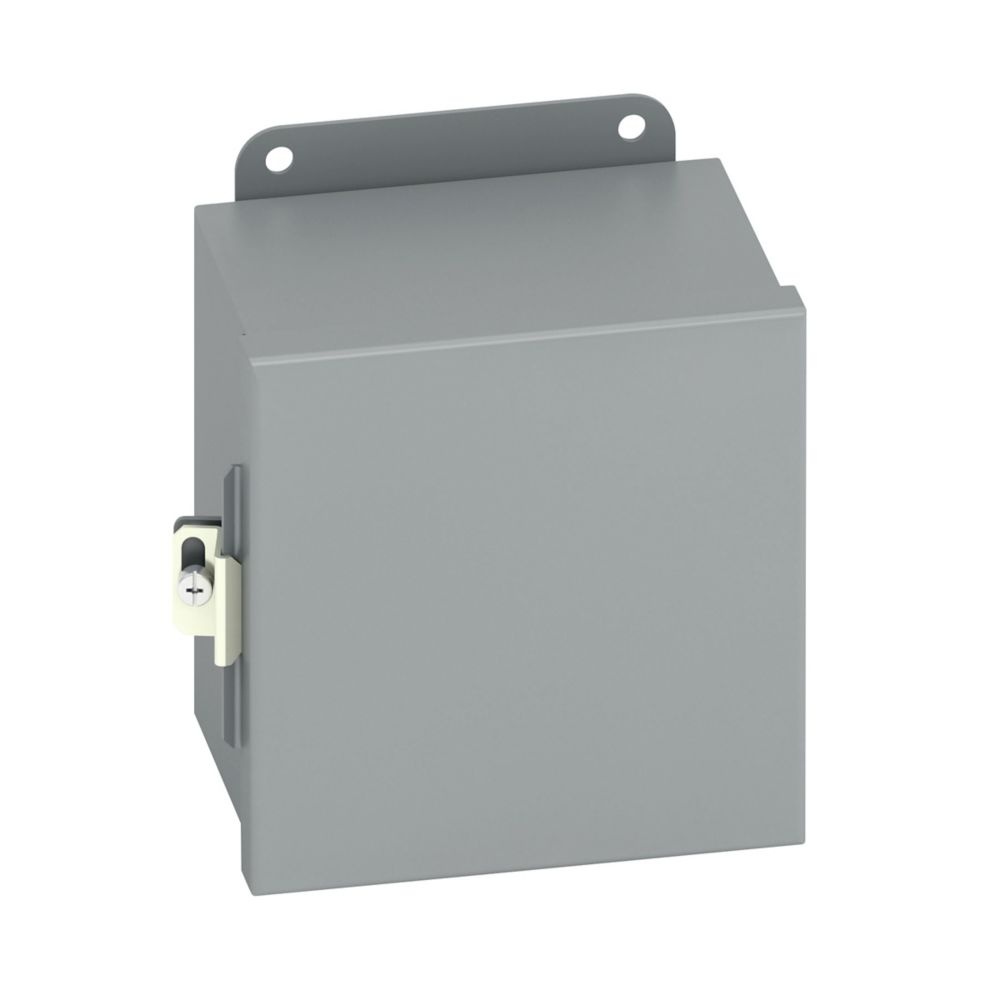

B-Line 8635-12CHC JIC Enclosure
Part Number # 863.5-12CHC
SKU # 2257104
B-Line 863.5-12CHC Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 863.5-12CHC |
| SKU #: | 2257104 |
| Finish: | Polyester Powder Coated, Polyester Powder Coated/Phosphate Undercoat |
| NEMA Rating: | NEMA 12, NEMA 12/IP65 |
| Panel Size: | 4.87 in W x 6.87 in H, 6.87 in H x 4.87 in W |
| Type: | 1-Door |
| Color: | ANSI 61 Gray, Gray |
| Country of origin: | US |
| Depth: | 3-1/2, 3-1/2 in |
| Height: | 8 in |
| Length: | 8 |
| Material: | 16 ga Steel, Steel |
| Mounting type: | External Feet/Wall, Wall |
| Width: | 6, 6 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051750508 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 8635-12CHC JIC Enclosure
Brand: B-Line
Part Number: 863.5-12CHC
B-Line JIC Panel Enclosure, 6 in Width, 3-1/2 in Depth, 8 in Height, NEMA 12 NEMA Rating, Continuous Piano Hinged Cover, 4.87 in W x 6.87 in H Panel, Lock: Screw Clamp, Wall Mounting, 16 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-863.5-12CHC (N) 863.5-12CHC 8X6X35 ENCLOSURE, 8X6X3.5 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series JIC panel enclosure, 8" height, 3.5" length, 6" width, NEMA 12, Hinged cover, 12CHC enclosure, Wall mount, Small single door, External mounting feet, Carbon steel, Seamless poured in-place gasket
863.5-12CHC Application
Industrial Facilities and Factories - Manufacturing Process Electrification and Control, Critical Power, Automation and Monitoring, Lighting and Lighting Controls, Power Distribution and Control, Safety and Security Systems, Commercial/Institutional Buildings/Structures - Lighting and Lighting Controls, Power Distribution and Controls, Critical Power, Utility - Substations, Utility Transmission and Distribution863.5-12CHC Item Features
- Enclosure and cover are fabricated from 16 ga steel
- All continuous welded seams are finished smooth
- Cover is secured to the body with a continuous hinge on one side and easy-to-operate screw clamps mounted to the opposite side
- Cover has a seamless poured in place gasket
- Ground stud provided on cover
- External mounting feet are provided for secure wall mounting
- Plated door clamps
863.5-12CHC Standards
CSA C22.2 File No. 94|IEC 60529|UL 508ASKU #2257104Part Number #863.5-12CHCUNSPSC39121324UPC00782051750508
