Part Number # 864-1
SKU # 1790907
Image provided may only be a representation of
final product and may include optional equipment
864-1

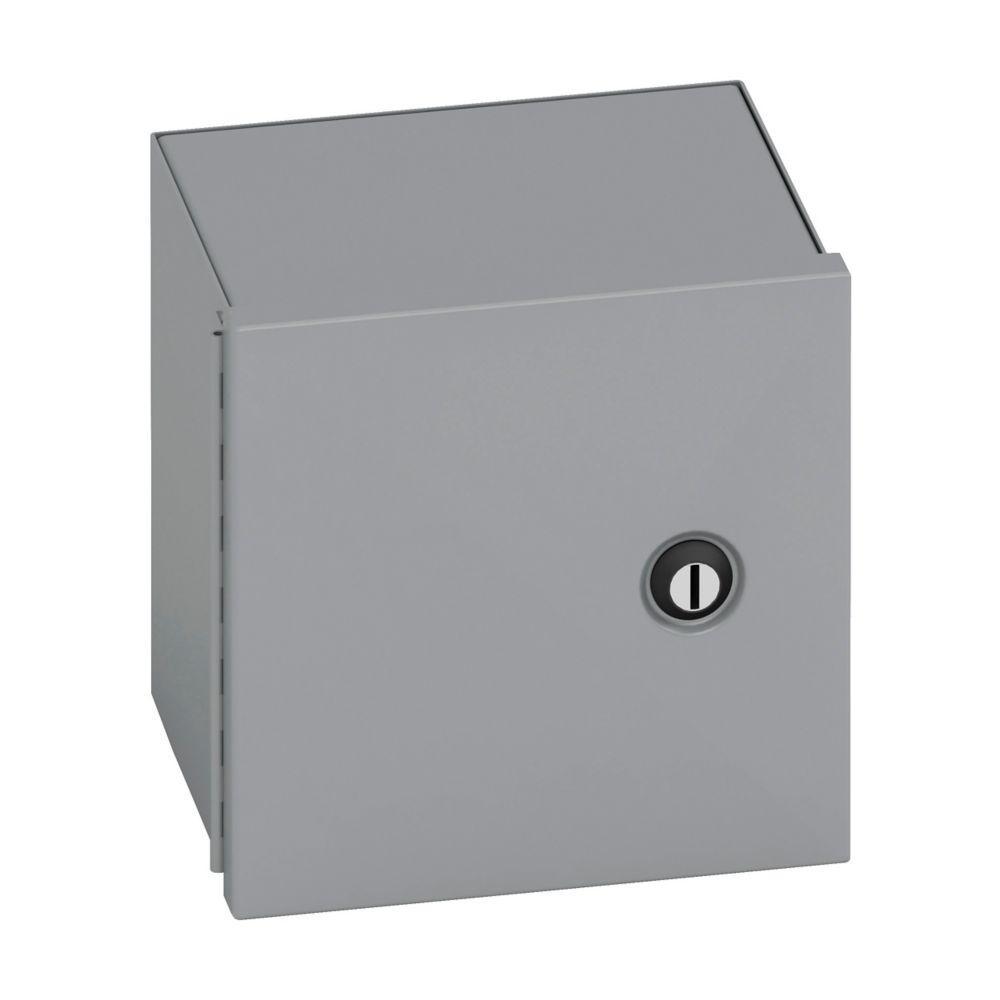

B-Line 864-1 Panel Enclosure
Part Number # 864-1
SKU # 1790907
$83.25 / Each
Typical price:$229.77 / Each
B-Line 864-1 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 864-1 |
| SKU #: | 1790907 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 1, NEMA 1/IP30 |
| Panel Size: | 4-1/4 in W x 6-1/4 in H, 6-1/4 in H x 4-1/4 in W |
| Type: | D70 Subclass Small, Small |
| Country of origin: | US |
| Depth: | 4, 4 in |
| Height: | 8 in |
| Length: | 8 |
| Material: | 16 ga Steel, Steel |
| Mounting type: | Wall |
| Width: | 6, 6 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121324 |
| UPC: | 00782051792102 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$83.25 / Each
Typical price:$229.77 / Each
Quantity:
B-Line 864-1 Panel Enclosure
Brand: B-Line
Part Number: 864-1
B-Line Panel Enclosure, Small, 6 in Width, 4 in Depth, 8 in Height, NEMA 1, Continuous Hinged Cover, 4-1/4 in W x 6-1/4 in H Panel, Lock: Flush Latch, Wall Mount, 16 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-864-1 864-1
Catalog Description: Eaton B-Line series Type 1 panel enclosures, 8" height, 4" length, 6" width, NEMA 1, Hinged cover, 1 enclosure, Wall mount, Small single door, Thru holes, Carbon steel
864-1 Application
Commercial/Institutional Buildings/Structures - Aftermarket, Lighting and Lighting Controls, Safety and Security Systems, Building Automation and Monitoring, Critical Power, Residential Buildings and Facilities, Industrial Facilities and Factories, Other IT and Datacom - Other Infrastructures, Utility, Generation - Renewable Energy, Alternative Energy, Conventional Energy, Water and Wastewater Systems, Datacenters - IT Space, Enterprise/Server Room/Network Closet864-1 Item Features
- Enclosure and door are fabricated from code gauge steel
- Cover is secured to the body with a continuous hinge on one side and flush latch on the opposite side
- Flush latch is designed to operate with either coin or screwdriver
- No knockouts
- Ground stud provided on door
- Continuous piano hinge
864-1 Standards
CSA C22.2 File No. 40|IEC 60529|UL 50SKU #1790907Part Number #864-1UNSPSC39121324UPC00782051792102
