884-4XFCHQRC

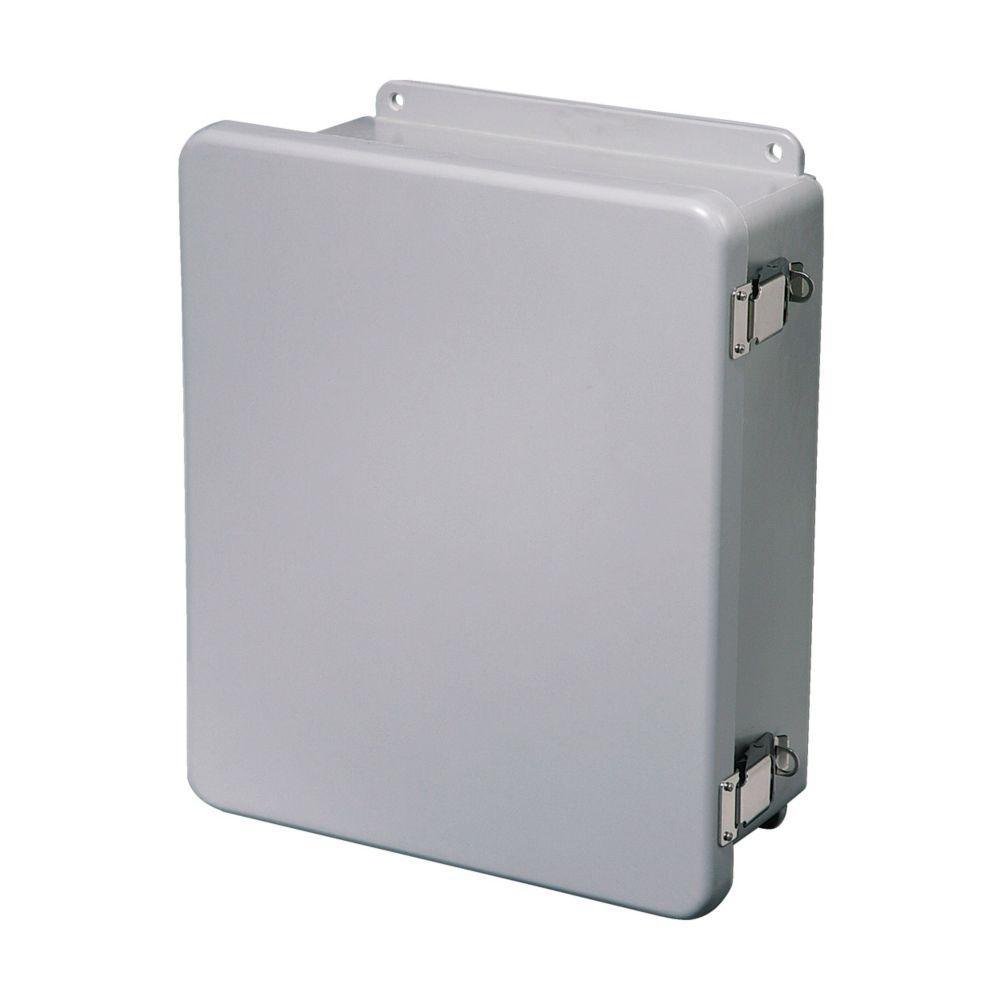

B-Line 884-4XFCHQRC Jic Enclosure
Part Number # 884-4XFCHQRC
SKU # 2404875
B-Line 884-4XFCHQRC Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | 884-4XFCHQRC |
| SKU #: | 2404875 |
| NEMA Rating: | NEMA 4X |
| Panel Size: | 5.74 in W x 4.45 in D x 7.73 in H |
| Temperature Rating (Degrees F): | -40 to 250 deg F |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 4.87 in |
| Height: | 9.56 in |
| Material: | Fiberglass Reinforced Polyester |
| Mounting type: | Wall |
| Width: | 9.38 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121305 |
| UPC: | 00078205152392 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line 884-4XFCHQRC Jic Enclosure
Brand: B-Line
Part Number: 884-4XFCHQRC
B-Line JIC Enclosure, 9.38 in Width, 4.87 in Depth, 9.56 in Height, NEMA 4X NEMA Rating, Hinged Cover, 5.74 in W x 4.45 in D x 7.73 in H Panel, Lock: Quick-Release Latch/Padlock, Wall Mounting, -40 to 250 deg F, Fiberglass Reinforced Polyester, Gray
Additional Description: BLIN-884-4XFCHQRC (N) 884-4XFCHQRC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series JIC panel enclosure, 9.56" height, 4.87" length, 9.38" width, NEMA 4X, Hinged cover, 4XFCHQRC enclosure, Wall mount, Medium single door, External mounting feet, Fiberglass, Seamless poured in-place gasket
884-4XFCHQRC Application
Electrical, Electronic Controls, Instruments, Harsh Environments and Indoor/Outdoor Applications884-4XFCHQRC Item Features
- Enclosures are an impact resistant, non-conductive, lightweight hot compression molded fiberglass-reinforced polyester
- Poured polyurethane seamless gasket provides watertight, dust-tight environmental seal
- Captive screws provide smooth surfaces
- 300 series stainless steel used ON all external hardware
- Integral flange molded-in place for ease of mounting
- Integral mounting bosses utilize threaded brass inserts accepting #10-32 screws for mounting optional panel
- Rounded edges reduce build-up of dust and debris
- Full length stainless steel hinged cover
- Padlocking latches provide quick access and optional closure locking (padlock not included)
- Protects against corrosion, windblown dust and rain, splashing water, hose directed water and prolonged submersion
- Non-flame propagating self extinguishing
- Chemical resistance
884-4XFCHQRC Standards
cUL 50|CSA C22.2 File No. 94|JIC Approved|UL945 V Flammability Rating|UL ListedSKU #2404875Part Number #884-4XFCHQRCUNSPSC39121305UPC00078205152392
