Part Number # 884-4XSS6CHC
SKU # 2403335
Image Disclaimers Message
884-4XSS6CHC

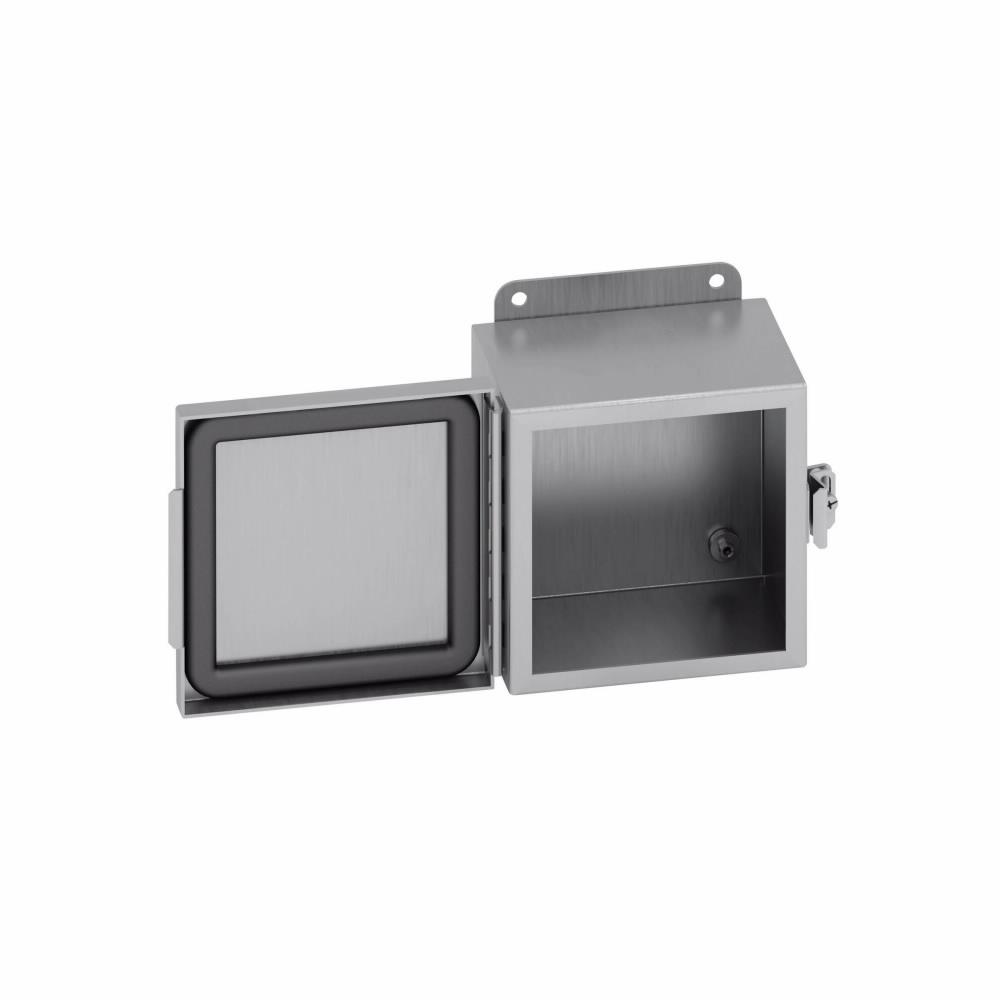

B-Line 884-4XSS6CHC Jic Enclosure
Part Number # 884-4XSS6CHC
SKU # 2403335
$674.45 / Each
Typical price:$1551.22 / Each
B-Line 884-4XSS6CHC Key Features
Brand: B-Line
Part Number # 884-4XSS6CHC
SKU #2403335
Finish: Smooth Brushed
NEMA Rating: NEMA 4X/IP66
Panel Size: 6.87 in W x 6.87 in H
Color: Gray
Country of origin: US
Depth: 4 in
Height: 8 in
Material: 316 Stainless Steel
Mounting type: External Feet/Wall
Width: 8 in
Manufacturer Name: Eaton
UNSPSC: 39121324
UPC: 00782051132069
$674.45 / Each
Typical price:$1551.22 / Each
B-Line 884-4XSS6CHC Jic Enclosure
Brand: B-Line
Part Number: 884-4XSS6CHC
B-Line JIC Enclosure, 8 in Width, 4 in Depth, 8 in Height, NEMA 4X/IP66 NEMA Rating, Continuous Hinged Cover, 6.87 in W x 6.87 in H Panel, External Feet/Wall Mounting, 316 Stainless Steel, Smooth Brushed, Gray
Additional Description: BLIN-884-4XSS6CHC (N) 884-4XSS6CHC NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series JIC panel enclosure, 8" height, 4" length, 8" width, NEMA 4X, Hinged cover, 4XSS6CHC enclosure, Wall mount, Small single door, External mounting feet, 316 stainless steel, Seamless poured in-place gasket
884-4XSS6CHC Application
Commercial, Institutional Buildings, Structures - Critical Power, Lighting and Lighting Controls, Power Distribution and Controls, Industrial Facilities and Factories Facility, Automation and Monitoring, Critical Power, Safety and Security Systems, Manufacturing Process Electrification and Control, Utility - Substations, Transmission and Distribution, Electrical Controls, Instruments and Indoor/Outdoor Applications884-4XSS6CHC Item Features
- Enclosure and cover are fabricated from 16 ga, type 304 or type 316L stainless steel
- All continuous welded seams are finished smooth
- Cover is secured to the body with a stainless steel continuous hinge and pin on one side and easy to operate stainless steel screw clamps mounted to the opposite side
- Cover has a seamless poured in place gasket
- Ground stud provided on cover
- External mounting feet are provided for secure wall mounting
- Protects against corrosion, windblown dust and rain, splashing water and hose directed water
- Continuous piano hinge, panel mount provided, stainless steel door clamps
884-4XSS6CHC Standards
cUL 50|CSA C22.2 No. 94|IEC 60529|UL 508ASKU #2403335Part Number #884-4XSS6CHCUNSPSC39121324UPC00782051132069
