Part Number # AWA-37-225
SKU # 2186410
AWA-37-225
B-Line AWA-37-225WEDGEANCHR3/8X21/4 Wedge Anchor
Part Number # AWA-37-225
SKU # 2186410
B-Line AWA-37-225 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | AWA-37-225 |
| SKU #: | 2186410 |
| Finish: | Zinc Plated |
| Overall Length: | 2-1/4, 2-1/4 in |
| Thread Size: | 3/8-16, 3/8/2016 |
| Type: | Expansion |
| Diameter: | 3/8, 3/8 in |
| Material: | Carbon Steel |
| Manufacturer Name: | Eaton |
| UNSPSC: | 31162102 |
| UPC: | 00781011030711 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line AWA-37-225WEDGEANCHR3/8X21/4 Wedge Anchor
Brand: B-Line
Part Number: AWA-37-225
EATON B-Line Wedge Anchor, Expansion, 3/8 in Diameter, 2-1/4 in Overall Length, 1-1/4 in Thread Length, Carbon Steel, Zinc Plated, 1-5/8 in Minimum Embedment Depth, 3/8 in Drill, 3/8-16 Thread, UNC Thread, 940 lb Shear Strength, 760 lb Tensile Strength
Additional Description: BLIN-AWA-37-225 (N) AWA-37-225 WEDGE ANCHR 3/8X2 1/4 ZN PLTD LENGTH, ZINC PLATED NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series fastener hardware and accessories, Heavy and medium duty all purpose anchor, Zinc plated carbon steel ,3?8" x 2-1?4", Anchors can be installed through the fixture,Wedge anchor
AWA-37-225 Application
Solid Concrete and Grout Filled Block ApplicationsAWA-37-225 Item Features
- Heavy and medium duty all purpose anchor
- Anchors can be installed through the fixture, no need for hole spotting
- Interlocking clip wedges prevent anchor spinning during installation
AWA-37-225 Standards
UL Listed,Not ApplicableSKU #2186410Part Number #AWA-37-225UNSPSC31162102UPC00781011030711

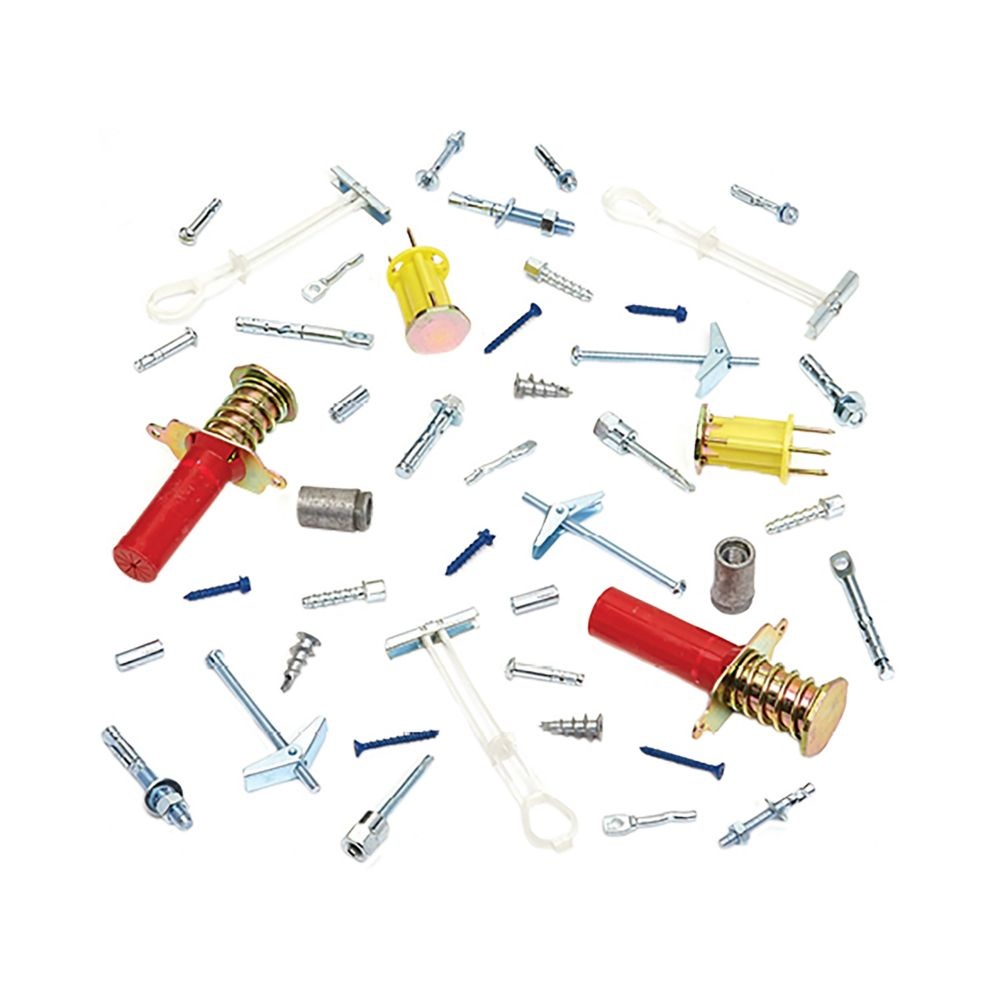

Image provided may only be a representation of final product and may include optional equipment
