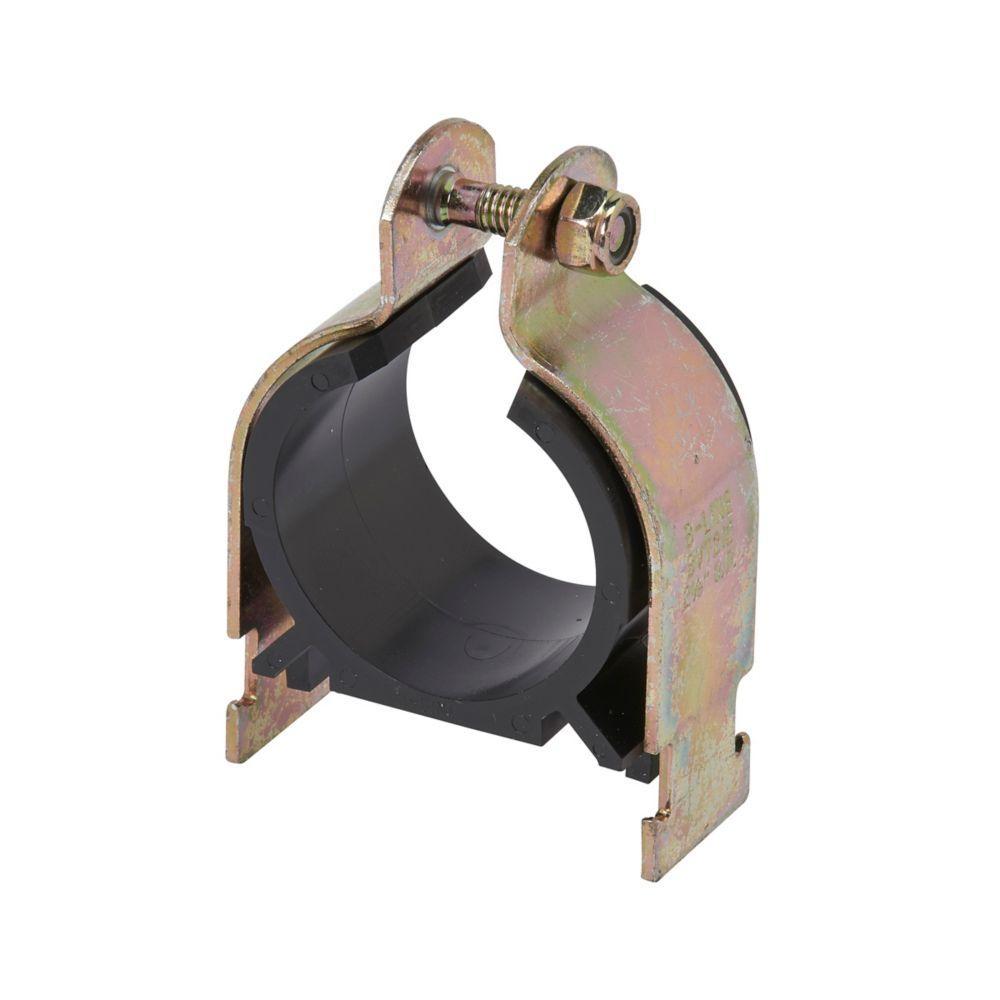

B-Line BVT062YZN Pipe Clamp
Part Number # BVT062YZN
SKU # 2150341
$9.89 / Each
Typical price:$10.49 / Each
B-Line BVT062YZN Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | BVT062YZN |
| SKU #: | 2150341 |
| Dimensions: | 0.86 in W x 1.62 in H, 1.62 in H x 0.86 in W |
| Finish: | Yellow Zinc Plated |
| Load Capacity: | 400/50, 400/50 lb |
| Outside Diameter: | 5/8 in |
| Series: | BVT |
| Mounting type: | Channel |
| UNSPSC: | 39121311 |
| UPC: | 00781011580254 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$9.89 / Each
Typical price:$10.49 / Each
Quantity:
B-Line BVT062YZN Pipe Clamp
Brand: B-Line
Part Number: BVT062YZN
EATON B-Line Vibra-Clamp Pipe Clamp, 2-Piece, Series: BVT, 1/2 in Conduit, 400/50 lb Load, 5/8 in OD, Channel Mounting, Low Carbon Steel, Yellow Zinc Plated, 0.86 in W x 1.62 in H Dimensions, -40 to 300 deg F
Additional Description: BLIN-BVT062YZN BVT062 YZN (5/8 OD) PLTD ZINC PLATED
Catalog Description: Eaton B-Line series Vibra-Clamp vibration and cushion clamp, 1.62" H x 0.86" L x 1.25" W, Yellow zinc chromate, 400 Lbs load cap
BVT062YZN Application
4Dimension Strut Systems and Bolted Framing ApplicationsBVT062YZN Includes
Clamp, Cushion, Nut and ScrewBVT062YZN Item Features
- Safety factor of 3
- Dielectric strength of 400 V/mil
- Allows easy one tool installation
- Dampens vibration and noise
- Eliminates galvanic metal to metal contact
- Resists most industrial oils and solvents
- Reduces thermal loss and gain
- Helps secure tubing firmly to channel (strut)
- 400 lb vertical, 50 lb transverse/longitude load capacity
BVT062YZN Standards
Not ApplicableBVT062YZN Warranty
LimitedSKU #2150341Part Number #BVT062YZNUNSPSC39121311UPC00781011580254
