BW-12
B-Line BW-12
Part Number # BW-12
SKU # 2460301
B-Line BW-12 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | BW-12 |
| SKU #: | 2460301 |
| Specifications: | 12 to 8 AWG Wire, 3/16 to 1/4 in Rod, 1/2 in Rigid Conduit, 3/4 in EMT/Rigid Cable |
| UNSPSC: | 39121705 |
| UPC: | 00781011197155 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line BW-12
Brand: B-Line
Part Number: BW-12
B-Line Rod Wire Fastener, 1/8 to 1/2 in Flange Thickness, 25/50/100 lb Load, For Use With: Flexible Metallic Tubing or Armored Cable, Specifications: 12 to 8 AWG Wire, 3/16 to 1/4 in Rod, 1/2 in Rigid Conduit, 3/4 in EMT/Rigid Cable, Cold Rolled High Carbon Steel
Additional Description: BLIN-BW-12 (N) BW-12 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series all threaded rod and drop wire supports, Conduit and cable, 1" Height, 1" Length, 1" Width, 0.031lbs, Rid and wire fasteners
BW-12 Item Features
- Attaches conduit to wire rods or flanges
- Clip on installation
- Can be used for flexible metallic tubing, armored cable, portable cable, control cable, and communication cable
BW-12 Standards
UL/cULus Listed|Federal Specification WW-H-171E, A-A-1192A Type 1|ANSI/MSS SP-69/SP-58 Type 1|FM Approved|NFPA Pamphlet 13|OSHPD ApprovedSKU #2460301Part Number #BW-12UNSPSC39121705UPC00781011197155

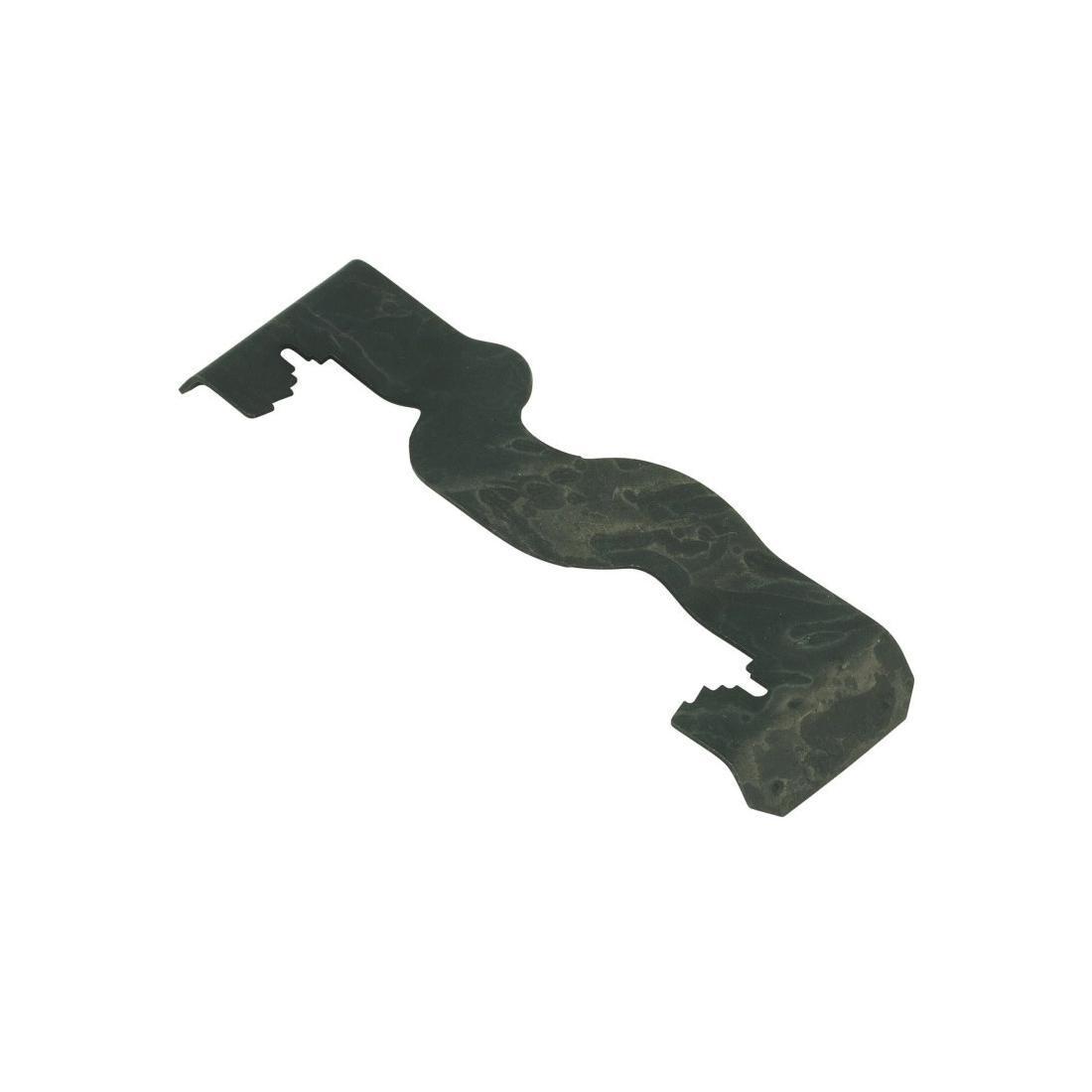

Image provided may only be a representation of final product and may include optional equipment
