Part Number # FD903920-12FS
SKU # 2344920
FD903920-12FS
B-Line FD903920-12FS Enclosure
Part Number # FD903920-12FS
SKU # 2344920
B-Line FD903920-12FS Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | FD903920-12FS |
| SKU #: | 2344920 |
| Type: | 1-Door Free-Standing Heavy Duty |
| Material: | 10 ga Steel, Polyester Powder Coated Over Wash/Phosphate Undercoated Steel |
| Mounting type: | Ground |
| UNSPSC: | 39121324 |
| UPC: | 00782051474480 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
B-Line FD903920-12FS Enclosure
Brand: B-Line
Part Number: FD903920-12FS
B-Line Flange Disconnect Enclosure, 1-Door Free-Standing Heavy Duty, 39-1/2 in Width, 20 in Depth, 90 in Height, NEMA 12 NEMA Rating, Removable Concealed Hinged Cover, 33-3/4 in W x 78 in H Panel, Lock: 3-Point Latch/Padlock Handle, Ground Mounting, 10 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-FD903920-12FS (N) FD903920-4FS ENC, 90X3950X20 ENCLOSURE, 90X39.50X20 NON-CANCELABLE, NON-RETURNABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton B-Line series ground mounted disconnect enclosure, 90"height, 20"length, 39"width, NEMA 4, Hinged cover, FD4FS enclosure, Ground mount, Large single door, No mounting provisions, Carbon steel, Oil-resistant gasket
FD903920-12FS Application
Water and Wastewater Systems, Mobile Machinery and Equipment, Stationary Machine Equipment in Factory - Robotics, Electrical Assemblies, Panels and EOEMs, Generation - Renewable Energy, Alternative Energy, Conventional EnergyFD903920-12FS Item Features
- Enclosure body 10/12 ga and door 12 ga are fabricated from steel
- All continuous welded seams are finished smooth
- Doors are secured to the body with removable concealed hinges and a center locating three-point key locking and padlock handle mechanism
- Modern bevel profile on hinge side of enclosure doors
- Right-side door serves as the master door with a defeater mechanism which requires a screwdriver to open
- Slave doors cannot open without activating mechanical interlock but can close in any order
- Universal opening on right-side flange will accommodate most disconnect operators when used with operator adapter
- Doors have an oil-resistant gasket
- Ground stud provided on doors and body
- Print pocket is provided
- Lighting mounting channel provided
- Fixed center posts are supported from the front to back for enclosure rigidity
- Removable center post allows for easy access and panel installation
- Removable panels mounted on 3/8-16 collar studs and panel supports
- Large lifting eyebolts are supplied
FD903920-12FS Standards
CSA C22.2 File No. 94|IEC 60529|UL 508ASKU #2344920Part Number #FD903920-12FSUNSPSC39121324UPC00782051474480

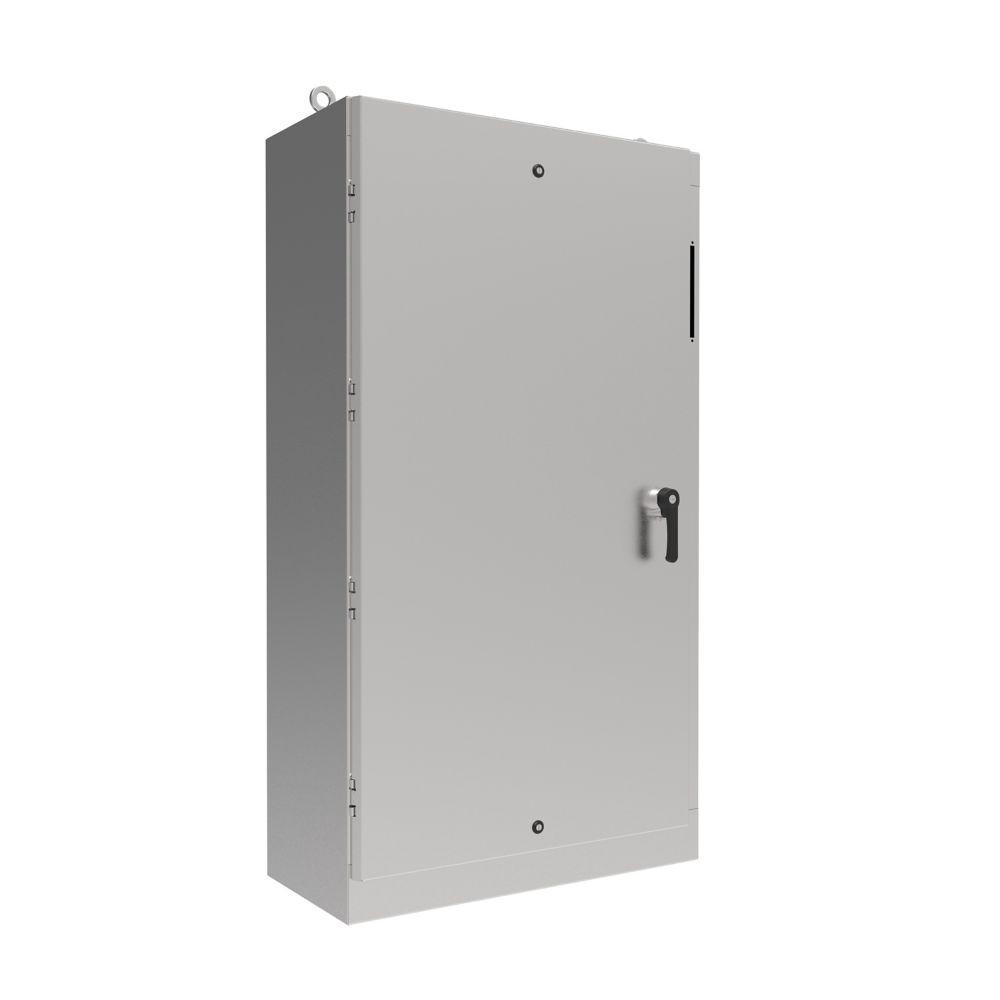

Image provided may only be a representation of final product and may include optional equipment
