Brand: B-Line
PB1

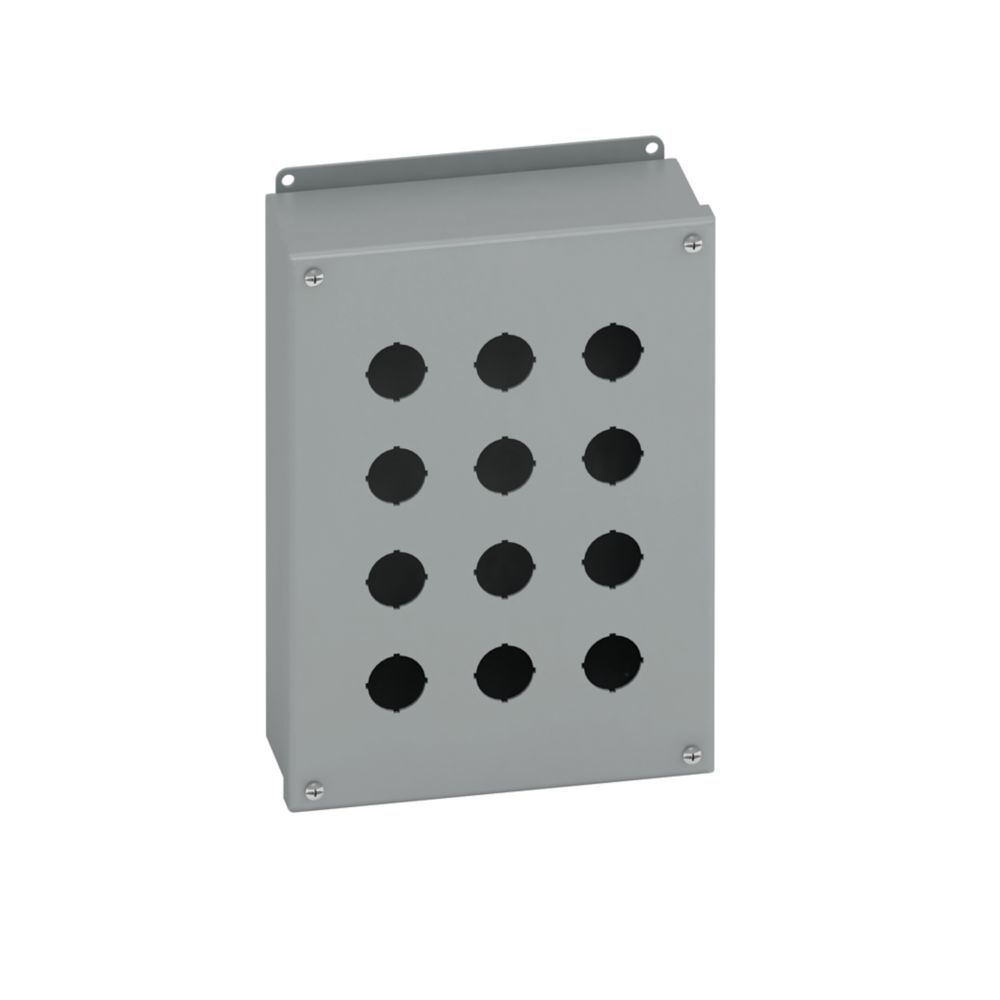

B-Line PB1 Pushbutton Enclosure
Part Number # PB1
SKU # 2246816
$114.00 / Each
Typical price:$262.19 / Each
B-Line PB1 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | PB1 |
| SKU #: | 2246816 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 4X/12/13/IP65 |
| Number of Outlets: | 1 |
| Series: | PB Series |
| Type: | Standard |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 3, 3 in |
| Length: | 4, 4 in |
| Material: | Steel |
| Mounting type: | Feet/Wall |
| Width: | 3-1/4, 3-1/4 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121326 |
| UPC: | 00782051700398 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$114.00 / Each
Typical price:$262.19 / Each
Quantity:
- B-Line, PB1, Pushbutton Enclosure, Standard, Series: PB Series, 4 in Length, 3-1/4 in Width, 3 in Depth, NEMA 4X/12/13/IP65 NEMA Rating, Screw Cover, 1 Outlets, Feet/Wall Mounting, Steel, Polyester Powder Coated, Gray
PB1 Application
For mounting 30.5 mm standard oil-tight pushbuttons, pilot lights, switches and protects against circulating dust, falling dirt and dipping non-corrosive liquidsPB1 Item Features
- All continuous welded seams are finished smooth
- Cover has concealed, detachable hinges which allow for quick removal and can be hinged on either side
- Cover has a fixed, oil-resistant gasket
- Weldnut in body of enclosure for grounding
- Cover is pre-punched with standard 30.5 mm or miniature 22.5 mm 4-way pushbutton holes
- External mounting feet are provided for secure wall mounting
- 30.5 mm device hole
- Enclosure and cover are fabricated from 14 ga steel
- Cover is attached with captive screws which thread into sealed well nuts
PB1 Standards
UL 508, CSA C22.2, IEC 60529SKU #2246816Part Number #PB1UNSPSC39121326UPC00782051700398
