Part Number # PB2
SKU # 2246815
Image Disclaimers Message
PB2

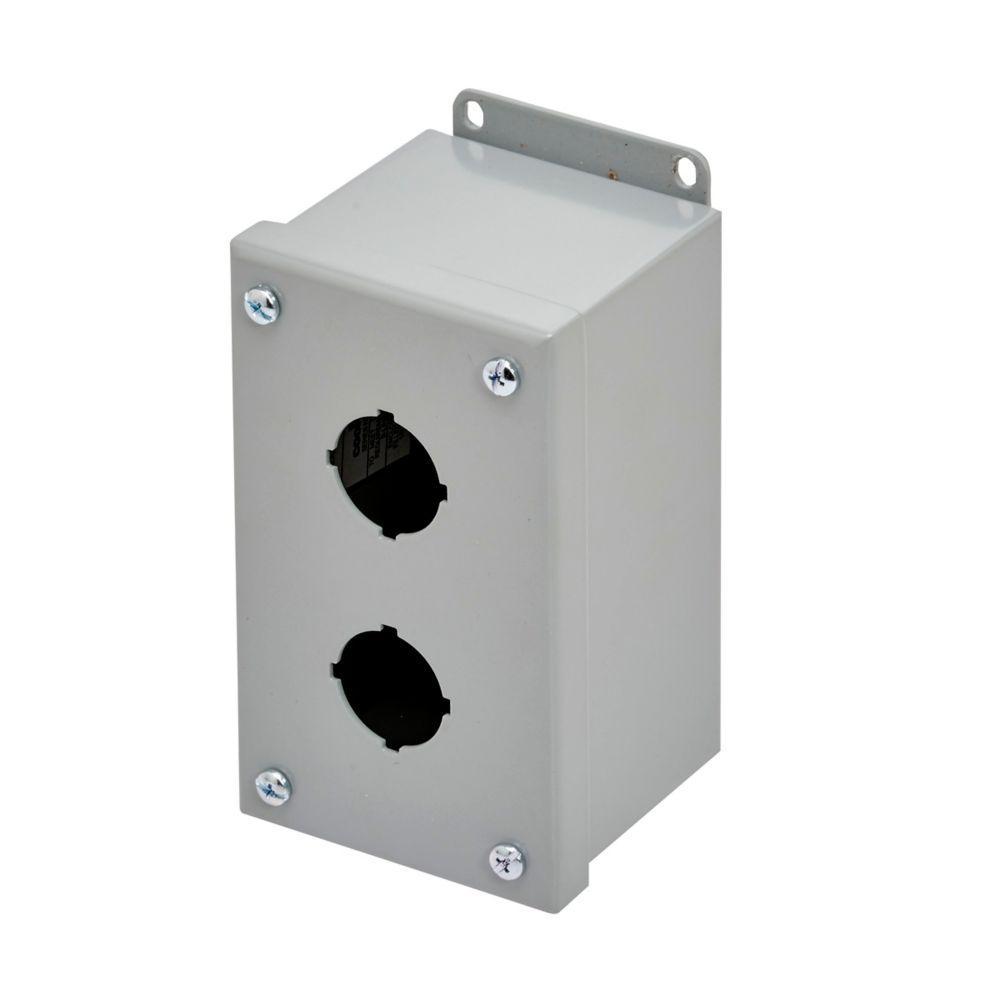

B-Line PB2 Pushbutton Enclosure
Part Number # PB2
SKU # 2246815
$130.36 / Each
Typical price:$299.84 / Each
B-Line PB2 Key Features
| Brand: | B-Line |
|---|---|
| Part Number # : | PB2 |
| SKU #: | 2246815 |
| Finish: | Polyester Powder Coated |
| NEMA Rating: | NEMA 12, NEMA 4X/12/13/IP65 |
| Number of Outlets: | 2 |
| Series: | PB Series |
| Type: | Standard |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 3, 3 in |
| Length: | 5-3/4, 5-3/4 in |
| Material: | 14 ga Steel, Steel |
| Mounting type: | Feet/Wall, Wall |
| Width: | 3-1/4, 3-1/4 in |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121326 |
| UPC: | 00782051700657 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$130.36 / Each
Typical price:$299.84 / Each
Quantity:
B-Line PB2 Pushbutton Enclosure
Brand: B-Line
Part Number: PB2
B-Line Pushbutton Enclosure, Standard, 5-3/4 in Length, 3-1/4 in Width, 3 in Depth, NEMA 12, Removable Concealed Detachable Hinged Cover, Lock: Screw, Wall Mount, 14 ga Steel, Polyester Powder Coated, Gray
Additional Description: BLIN-PB2 PB2 ENCLOSURE
Catalog Description: PB2
PB2 Application
For mounting 30.5 mm standard oil-tight pushbuttons, pilot lights, switches and protects against circulating dust, falling dirt and dipping non-corrosive liquidsPB2 Item Features
- All continuous welded seams are finished smooth
- Cover has concealed, detachable hinges which allow for quick removal and can be hinged on either side
- Cover has a fixed, oil-resistant gasket
- Weldnut in body of enclosure for grounding
- Cover is pre-punched with standard 30.5 mm or miniature 22.5 mm 4-way pushbutton holes
- External mounting feet are provided for secure wall mounting
- 30.5 mm device hole
- Enclosure and cover are fabricated from 14 ga steel
- Cover is attached with captive screws which thread into sealed well nuts
PB2 Standards
CSA C22.2 No. 94|IEC 60529|ANSI 61|UL 508ASKU #2246815Part Number #PB2UNSPSC39121326UPC00782051700657
